S9303 02113089 3 LPU Slots Integrated Network Switch
Product Overview
The S9303 chassis is a 4U high integrated network switch chassis designed for enterprise networking applications. With dimensions of 175mm x 442mm x 517.4mm (without cable management frames) or 175mm x 442mm x 585mm (with cable management frames), this chassis provides robust networking capabilities in a compact form factor.

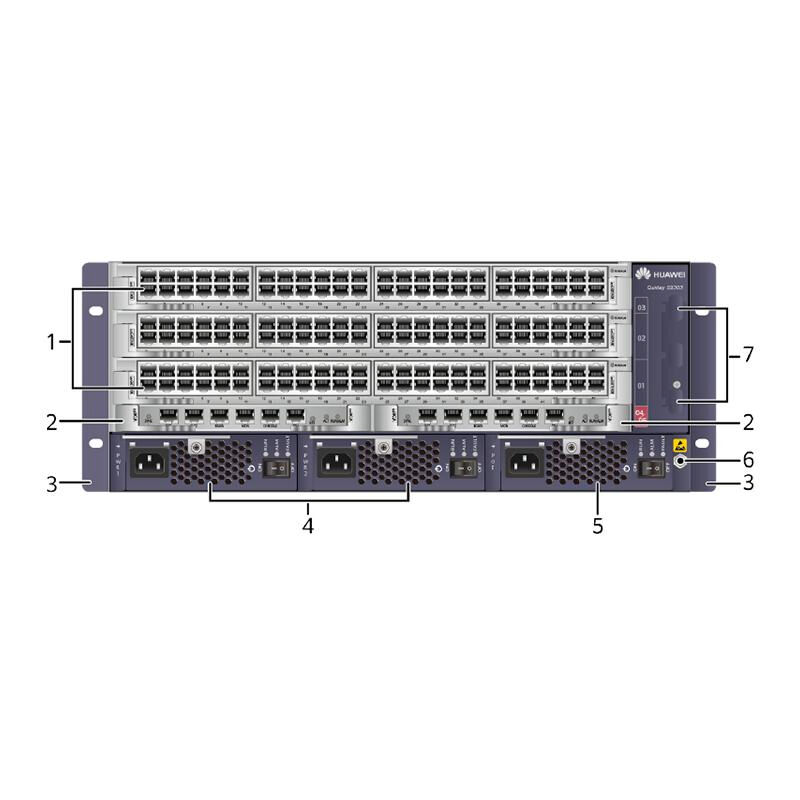

Product Images
Technical Specifications
| LPU Slots |
3 |
| MPU Slots |
2 |
| Fan Slots |
1 |
| System Power Supply Slots |
2 |
| PoE Power Supply Slots |
1 |
| Maximum Port Density |
- V100R006C00 and V200R001C00: 144xFE, 144xGE, 120x10GE
- V200R002C00 to V200R007C00: 144xFE, 144xGE, 120x10GE, 6x40GE
- V200R008C00 to V200R009C00: 144xFE, 144xGE, 120x10GE, 6x40GE, 6x100GE
- V200R010C00 to V200R019C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE
- V200R019C00 and later: 144xFE, 144xGE, 144x10GE, 24x40GE, 18x100GE
|
| Installation |
In an N66E or N68E cabinet |
| CSS |
Not supported |
| PoE Capabilities |
- Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply and 3000 W high-voltage DC power supply
- PoE power module backup: no backup
- Maximum output power: 3000 W
|
| Maximum Power Consumption |
1000 W (fully configured, no PoE power supply) |
| Power Specifications |
- DC input voltage: -48 V DC/-60 V DC
- AC input voltage: 110 V AC/220 V AC, 50/60 Hz
- HVDC input voltage (3000 W AC): 240 V DC
- HVDC input voltage (3000 W HVDC): 240 V DC/380 V DC
|
| Dimensions |
- With cable management frames: 175 mm x 442 mm x 585 mm
- Without cable management frames: 175 mm x 442 mm x 517.4 mm
|
| Weight |
10 kg (empty) / 31.6 kg (fully configured) |
| Reliability and Availability |
- Mean time between failures (MTBF): 33.8 years
- Mean time to repair (MTTR): 2 hours
- Availability: 0.9999964
|
| Environmental Specifications |
- Operating temperature: 0°C to 45°C (32°F to 113°F)
- Relative humidity: 5% RH to 95% RH (noncondensing)
- Storage temperature: -40°C to +70°C (-40°F to +158°F)
|
| Noise Level |
≤ 72 dB(A) at normal temperature |
| Certification |
EMC certification, Safety certification, Manufacturing certification |
| Part Number |
02113089 |
