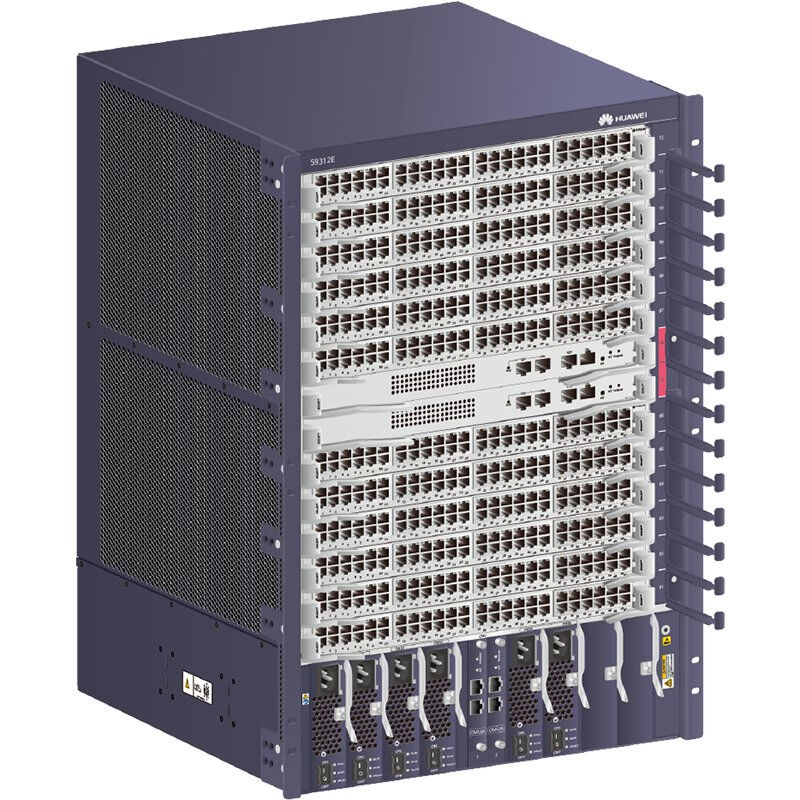

Product Overview
The S9312E chassis (part number: 02113479) is a high-performance network switch chassis designed for industrial and enterprise applications with Power over Ethernet (PoE) support.
Physical Dimensions
The S9312E chassis measures 15U high (1U = 44.45 mm):
- Without cable management frames: 663.9 mm × 442 mm × 517.4 mm
- With cable management frames: 663.9 mm × 442 mm × 585 mm

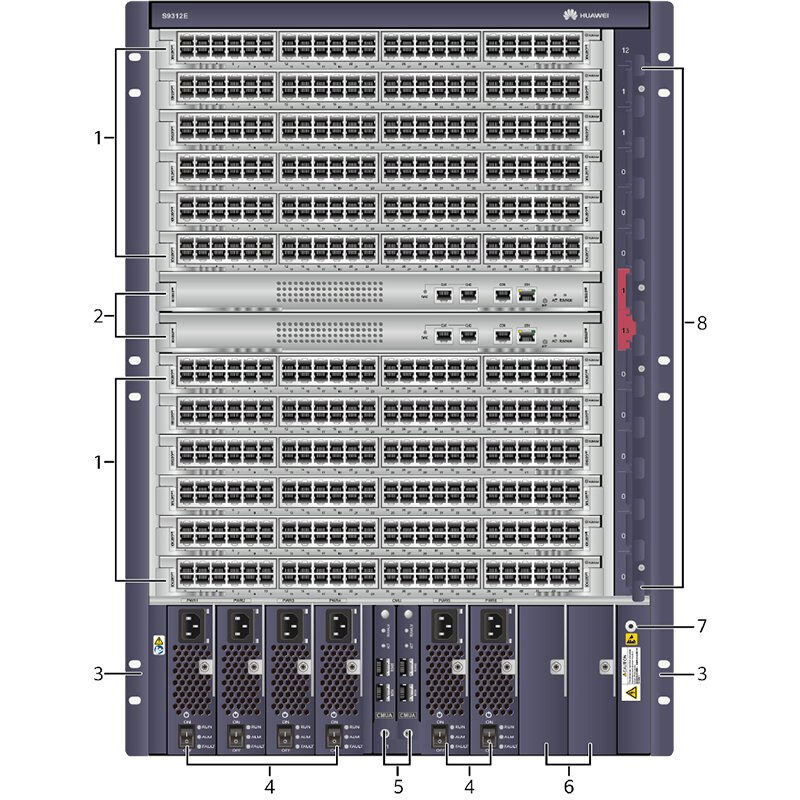

Chassis Components
- Twelve service card slots supporting various interface types (100M, 1000M, GE/10GE, 10GE, 40GE, 40GE/100GE, 100GE)
- Two Main Processing Units (MPUs)
- Mounting brackets for cabinet installation
- Six power module slots
- Two LE0DCMUA0000 Centralized Monitoring Units
- Reserved slot with filler panel
- Front ESD jack for electrostatic discharge protection
- Cable management frames for organized cable routing
Note: Supported cards depend on the software version. Please check Info-Finder for specific compatibility details.
Technical Specifications
| LPU Slots |
12 |
| MCU Slots |
2 |
| Fan Slots |
4 |
| Power Slots |
6 |
| Maximum Port Density |
V200R001C00: 576xFE, 576xGE, 480x10GE
V200R002C00 and V200R003C00: 576xFE, 576xGE, 480x10GE, 24x40GE
V200R005C00, V200R006C00 and V200R007C00: 576xFE, 576xGE, 576x10GE, 24x40GE
V200R008C00 to V200R009C00: 576xFE, 576xGE, 576x10GE, 24x40GE, 24x100GE
V200R010C00 to V200R013C00: 576xFE, 576xGE, 576x10GE, 96x40GE, 48x100GE
|
| Installation |
In an N66E or N68E cabinet, one cabinet for one chassis |
| CSS |
Service port clustering |
| Maximum Power Consumption |
4906 W (fully configured) |
| Power Specifications |
DC input: -48V/-60V DC (-38.4V to -72V DC)
AC input: 110V/220V AC, 50/60 Hz (90V to 290V AC)
HVDC input (3000W AC): 240V DC (190V to 290V DC)
HVDC input (3000W HVDC): 240V/380V DC (190V to 400V DC)
|
| Dimensions |
With cable management: 663.9 × 442 × 585 mm
Without cable management: 663.9 × 442 × 517.4 mm
|
| Weight |
Empty: 37 kg / Fully configured: 116 kg |
| Reliability & Availability |
MTBF: 24.1 years
MTTR: 2 hours
Availability: 0.9999959
|
| Environmental Specifications |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Relative humidity: 5% to 95% RH (non-condensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage altitude: < 5000 m
|
| Noise Level |
≤ 72 dB(A) at normal temperature |
| Certification |
EMC, Safety, and Manufacturing certifications |
| Part Number |
02113479 |
Note: Reliability values are calculated based on typical configuration and may vary with installed modules.
Company Profile
Chongqing Chimu Technology Co., Ltd. has been a trusted provider in the communication industry since 2011. With over 11 years of deep experience and technological innovation capabilities, we offer a comprehensive range of communication products through our integrated multi-brand, full-series approach and one-stop service model.
Our product portfolio includes Switches, Routers, Servers, Storages, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, and Wireless APs. We maintain a robust supply chain system to deliver high-quality, reliable products at competitive prices.
Our Advantages
Stable and Wide Supply Chain System - Comprehensive supply chain providing reliable quality products at reasonable prices.
Competitive Pricing - We ensure the most competitive market prices with customized configurations.
Safe and Easy Payment Solutions - Accepting major credit cards, PayPal, and wire transfers.
Fast Delivery and Shipping - Professional and reliable delivery services.
11+ Years Industry Experience - Extensive expertise in telecommunications equipment.
Frequently Asked Questions
Q: How about your main products?
A: Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless APs, and more.
Q: What brand of products do you offer?
A: We can supply all major brands to meet your specific requirements.
Q: What services can you provide?
A: We accept FOB, CFR, EXW, FCA delivery terms and T/T, MoneyGram, PayPal, Western Union, Cash payments in USD, EUR, CAD, HKD, GBP, CNY.
Q: Can we get free samples?
A: Samples are available for purchase to ensure product quality meets your expectations.
Q: How can we guarantee quality?
A: We provide pre-production samples and conduct final inspections before shipment to ensure quality standards.
Q: How about your delivery time?
A: Delivery typically takes 1-10 days after deposit receipt, depending on product items and order quantity.
Q: Do you test all your goods?
A: Yes, all devices are professionally tested by our engineers before shipping.
Q: How about the MOQ?
A: Minimum order quantity is 1 piece.
