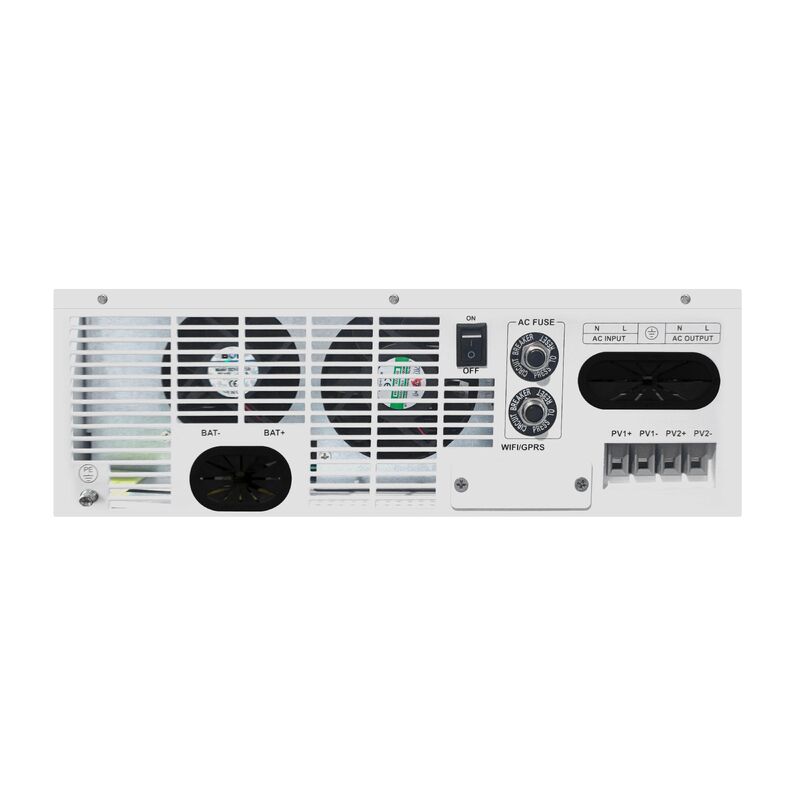

Name: Compact Solar Inverter with Bidirectional Storage Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output
Brand: test
Price: 180 USD
Availability: InStock

Home > Products > Energy >

Compact Solar Inverter with Bidirectional Storage Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output

Bidirectional Storage Solar Inverter

Ultra-Wide MPPT Range 30Vdc-80Vdc DC/DC Inverter

Pure Sine Wave Output Energy Storage Inverter

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Compact Solar Inverter with Bidirectional Storage Ultra-Wide MPPT Range 30Vdc-80Vdc and Pure Sine Wave Output

Product Details

Output Power:

>1000W

MPPT Voltage Range:

30Vdc-240Vdc, 40Vdc-350Vdc, 40Vdc-450Vdc

Rated Voltage:

180Vdc, 240Vdc

Max PV Voltage:

300Vdc, 400Vdc, 500Vdc

Max PV Current:

13A, 15A, 18A

Battery Voltage Range:

10.5-15Vdc(default), 21-30Vdc(default)

Max Charging Current:

60A, 80A, 100A, 120A

Rated Input Voltage:

230V(220V Or 240V Can Be Set)

Input Voltage Range:

165Vac-280Vac/120Vac~280Vac (Can Be Set)

Output Voltage Accuracy:

±2%

Output Frequency Accuracy:

±1%

Output Wave:

Pure Sine Wave

Power Factor:

>0.98(Rated Power)

MPPT Efficiency:

≥99.9

Transfer Time:

10ms(Typical Value)

Highlight:

Bidirectional Storage Solar Inverter

Ultra-Wide MPPT Range 30Vdc-80Vdc DC/DC Inverter

Pure Sine Wave Output Energy Storage Inverter

Payment & Shipping Terms

Minimum Order Quantity

Price

180

Related Products

Contact Now

Product Description

Compact Smart Energy Solutions with 230V Control Inverter Technology

Reliable Wall-Mounted Home Battery Storage System

High-frequency, compact, and efficient bidirectional storage system for solar and mains power with wide MPPT range of 30-80Vdc.

Technical Specifications

Parameter	1000W	1300W	1800W	1800w	2300W	3300W
Rated Power	1000W	1300W	1800W	1800w	2300W	3300W
Max PV Input Power	1500W	2000W	2500W	2500W	3000W	5000W
MPPT Tracking Voltage Range	30Vdc-240Vdc		40Vdc-350Vdc		40Vdc-450Vdc
Rated Voltage	180Vdc			240Vdc
Max PV Input Voltage (VOC)	300Vdc		400Vdc		500Vdc
Max PV Input Current	13A	15A	18A	-	-	-
MPPT Tracking Channels	1 Routed
Battery Type	Lead-acid Battery/Lithium Battery
Rated Battery Voltage	12Vdc			24Vdc
Battery Voltage Range	10.5-15Vdc (default)			21-30Vdc (default)
Max PV Charging Current	60A	80A	100A	60A	80A	120A
Max AC Charging Current	40A	50A	65A	35A	50A	80A
Max Charging Current	60A	80A	100A	60A	80A	120A
Rated Input Voltage	230V (220V or 240V can be set)
Mains Input Voltage Range	165Vac-280Vac/120Vac-280Vac (can be set)
Rated Input Frequency	50Hz/60Hz
Input Frequency Range	45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz)
Rated Output Voltage	230V (220V or 240V can be set)
Output Voltage Accuracy	±2%
Output Frequency Accuracy	±1%
Output Wave	Pure Sine Wave
Grid Voltage Range	187Vac-264Vac
Rated Output Current	4.3A	5.6A	7.8A	7.8A	10A	14.3A
Power Factor	>0.98 (Rated Power)
No Load Loss (Battery Discharge)	1% Rated Power (Typical value)
MPPT Tracking Efficiency	≥99.9%
Transfer Time	10ms (Typical value)
Display	LCD+LED
Cooling Method	Cooling fan in intelligent control
Communication	RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional)
Protection Degree	IP20
Anti-islanding Protection	≤2S
Product Size (L·W·H mm)	26523191	28525091	31025091	28525091	325275102	-
Package Size (L·W·H mm)	340286156	360305156	385305156	360305156	400330167	-
N.W. (kg)	3	3.6	4	3.7	3.9	5.5
G.W. (kg)	3.5	4.5	5	4.6	4.8	6.5

Advanced System Features

Configurable: grid, off-grid, hybrid modes

Enables grid-connected current settings

Offers output/charging priority settings

Includes BMS communication for lithium batteries

Supports operation without batteries

Frequently Asked Questions

Q1: Why choose us?

A: Expertise, professional team, quality products, competitive pricing, timely delivery, sincere service

Q2: How is your after-sale service?

A: 1-2 years warranty, 1% free spare parts, PCB repair/replacement

Q3: What certifications do you have?

A: ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass tests per country's requirements.

Q4: Delivery time:

A: Standard products delivered in 15 days

Q5: Can I have a sample order?

A: Yes, sample orders are welcome to test quality
