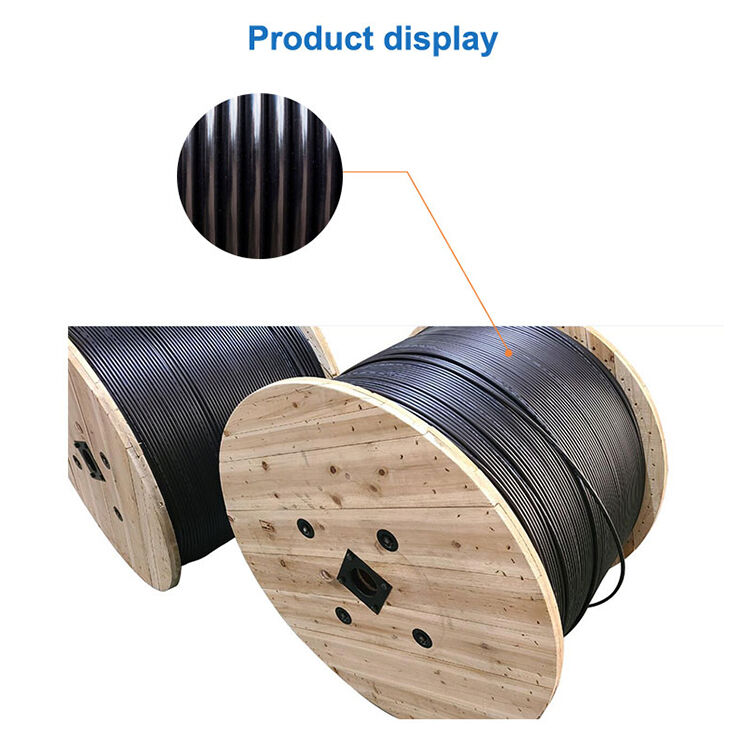

Name: GYXTW 2-24 Fiber Count Outdoor Optic Cable with Single Mode or Multimode and 1000N Tensile Strength
Brand: test
SKU: WIG-LACE-001
Price: Negotiable USD
Availability: InStock

Home > Products > Optical Modules >

GYXTW 2-24 Fiber Count Outdoor Optic Cable with Single Mode or Multimode and 1000N Tensile Strength

2-24 Fiber Count Fiber Optic Cable

Single Mode or Multimode Outdoor Optic Cable

1000N Tensile Strength GYXTW Cable

Place of Origin:

China

Brand Name:

Ecer

Certification:

CE, RoHS, ISO9001

Model Number:

WIG-LACE-001

Request A Quote

GYXTW 2-24 Fiber Count Outdoor Optic Cable with Single Mode or Multimode and 1000N Tensile Strength

Product Details

Core Count:

1-288 Cores

Sheath Material:

HDPE

Jacket Color:

Black /Customize Accept

Fiber Count:

2-24

Fiber Type:

Single Mode Or Multimode

Jacket Material:

PE/LSZH/Lsoh

Attenuation @850nm:

≤3.0 DB/km

Attenuation @1300nm:

≤1.0 DB/km

Attenuation @1310nm:

≤0.36 DB/km

Attenuation @1550nm:

≤0.22 DB/km

Bandwidth @850nm:

≥500 MHz·km

Bandwidth @1300nm:

≥1000 MHz·km

Numerical Aperture:

0.200±0.015NA

Cut-off Wavelength:

≤1260nm

Cable Diameter:

10.0-15.0 Mm

Highlight:

2-24 Fiber Count Fiber Optic Cable

Single Mode or Multimode Outdoor Optic Cable

1000N Tensile Strength GYXTW Cable

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

1pc/Polybag, 10pcs/CTN

Delivery Time

10-15 Working Days

Payment Terms

T/T, PayPal, Western Union

Supply Ability

5000pcs/Month

Related Products

86--18684801935

Contact Now

Product Description

GYXTW 4A1a Multi Mode Fiber Optic Cable

We are a 20-year fiber optic cable manufacturer. Welcome to visit our factory! Contact us to receive free samples.

Optical Performance Specifications

Parameter	G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)
@850nm			≤3.0 dB/km	≤3.0 dB/km
@1300nm			≤1.0 dB/km	≤1.0 dB/km
@1310nm	≤0.36 dB/km	≤0.40 dB/km
@1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth (Class A)
@850nm			≥500 MHz·km	≥200 MHz·km
@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength	≤1260nm	≤1480nm

Mechanical Specifications

Cable Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GYXTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Product Images
