Name: 12/24 Core G652D Single Mode Light-Armored Outdoor Fiber Optic Cable (GYXTW)
Brand: test
SKU: WIG-LACE-001
Price: Negotiable USD
Availability: InStock

Home > Products > Optical Modules >

12/24 Core G652D Single Mode Light-Armored Outdoor Fiber Optic Cable (GYXTW)

G652D Single Mode Fiber Optic Cable

Light-Armored Outdoor Optic Cable

12/24 Core GYXTW Cable

Place of Origin:

China

Brand Name:

Ecer

Certification:

CE, RoHS, ISO9001

Model Number:

WIG-LACE-001

Request A Quote

12/24 Core G652D Single Mode Light-Armored Outdoor Fiber Optic Cable (GYXTW)

Product Details

Model NO.:

GYXTW

Material Shape:

Round Wire

Fiber Count:

2~48

Cable Diameter:

10.0~15.0 Mm

Cable Weight:

105~216 Kg/km

Tensile Strength:

600~1000 N (Long Term), 1500~3000 N (Short Term)

Crush Resistance:

300~1000 N/100mm (Long Term), 1000~3000 N/100mm (Short Term)

Bending Radius:

10D (Static), 20D (Dynamic)

Attenuation @850nm:

≤3.0 DB/km

Attenuation @1300nm:

≤1.0 DB/km

Attenuation @1310nm:

≤0.36 DB/km

Attenuation @1550nm:

≤0.22 DB/km

Bandwidth @850nm:

≥500 MHz·km

Bandwidth @1300nm:

≥1000 MHz·km

Numerical Aperture:

0.200±0.015NA

Highlight:

G652D Single Mode Fiber Optic Cable

Light-Armored Outdoor Optic Cable

12/24 Core GYXTW Cable

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

1pc/Polybag, 10pcs/CTN

Delivery Time

10-15 Working Days

Payment Terms

T/T, PayPal, Western Union

Supply Ability

5000pcs/Month

Related Products

86--18684801935

Contact Now

Product Description

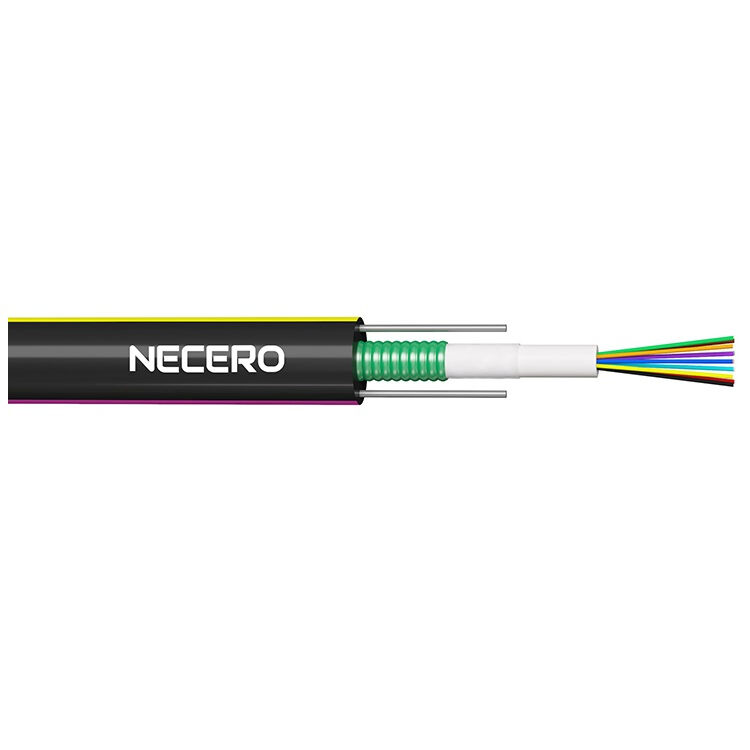

Armored Outdoor Aerial Single Mode G652D Fiber Optic Cable (GYXTW)

12/24 Core Outdoor Unitube Light-Armored Aerial Fiber Optic Cable

We are a 20-year fiber optic cable manufacturer. Welcome to visit our factory! Contact us for free samples.

Optical Performance Specifications

Parameter	G.652	G.655	50/125Î¼m	62.5/125Î¼m
Attenuation @850nm			â‰¤3.0 dB/km	â‰¤3.0 dB/km
Attenuation @1300nm			â‰¤1.0 dB/km	â‰¤1.0 dB/km
Attenuation @1310nm	â‰¤0.36 dB/km	â‰¤0.40 dB/km
Attenuation @1550nm	â‰¤0.22 dB/km	â‰¤0.23 dB/km
Bandwidth @850nm			â‰¥500 MHzÂ·km	â‰¥200 MHzÂ·km
Bandwidth @1300nm			â‰¥1000 MHzÂ·km	â‰¥600 MHzÂ·km
Numerical Aperture			0.200Â±0.015NA	0.275Â±0.015NA
Cable Cut-off Wavelength	â‰¤1260nm	â‰¤1480nm

Mechanical Specifications

Cable Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GYXTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D
