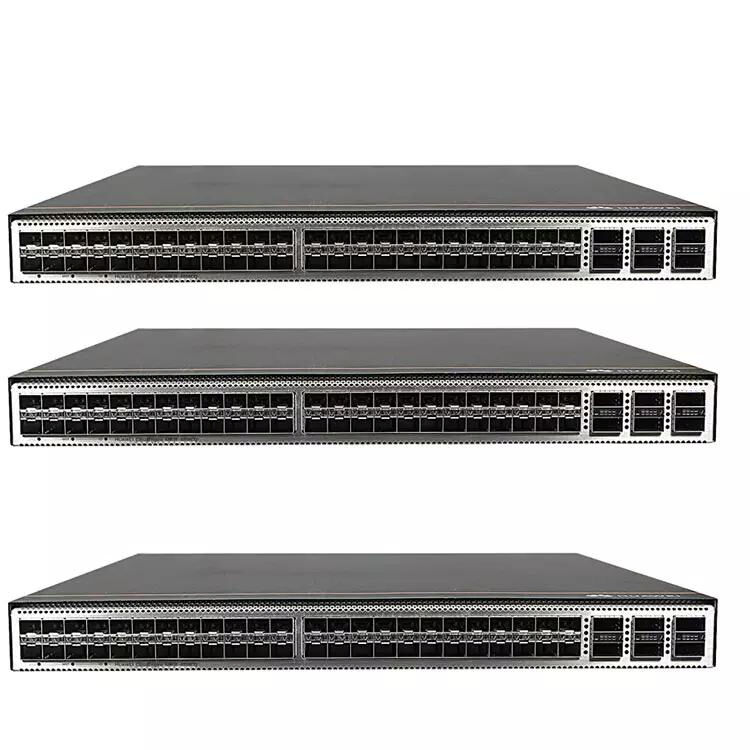

CloudEngine 6800 Data Center Switch
Model: CE6820-48S6CQ (02352TLE, 02352TLJ, 02352TLG)
Product Overview
The CloudEngine 6800 series delivers high-performance, high port density, and low latency for cloud-oriented data center networks. Featuring advanced hardware design with 10GE, 25GE, or 50GE access ports and 40GE, 100GE, or 200GE uplink ports, these switches provide comprehensive data center capabilities with high-performance stacking and flexible airflow options.
Key Features
- High-performance data center switching
- Advanced stacking technologies
- Flexible airflow configurations
- Compatible with CloudEngine 16800 and 12800 series
- Scalable, simplified, open, and secure networking
Technical Specifications
Physical Specifications
| Dimensions (H x W x D) |
Basic: 43.6 mm x 442.0 mm x 420.0 mm
Maximum: 43.6 mm x 442.0 mm x 446.1 mm |
| Weight |
7.7 kg (with two AC power modules and four fan modules) |
Environmental Parameters
| Operating Temperature |
0°C to 40°C (32°F to 104°F) at 0-1800 m altitude |
| Storage Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Relative Humidity |
5% RH to 95% RH, noncondensing |
| Altitude |
≤ 5000 m (16404 ft.) |
| Noise |
< 55 dBA (both airflow directions) |
Power Specifications
| Power Source Type |
AC/DC/HVDC |
| AC Input Range |
100-240 V AC, 50/60 Hz (90-290 V AC max) |
| DC Input Range |
-48 V DC to -60 V DC (-38.4 V DC to -72 V DC max) |
Power Consumption & Heat Dissipation
| Maximum Power Consumption |
282 W |
| Typical Power Consumption |
162-196 W |
| Maximum Heat Dissipation |
962 BTU/hr |
| Typical Heat Dissipation |
553-669 BTU/hr |
Reliability & Availability
| Power Module Backup |
1+1 backup |
| Fan Module Backup |
3+1 hot standby backup |
| Hot Swap |
Supported for all power and fan modules |
| MTBF |
45.48 years |
| MTTR |
1.52 hours |
| Availability |
0.99999618 |
Technical Specifications
| Processor |
1.4 GHz, four-core |
| DRAM Memory |
4 GB |
| NOR Flash |
64 MB |
| NAND Flash |
2 GB |
| Stacking Ports |
10GE and 100GE optical ports |
About Chongqing Chimu Technology
Established in 2011, Chongqing Chimu Technology Co., Ltd. brings 11+ years of deep experience in communications technology. We provide comprehensive networking solutions including switches, routers, servers, storage, OLTs, SDHs, network modules, interface cards, security firewalls, and wireless APs through our established supply chain system.
Our Advantages
- Stable Supply Chain: Perfect supply chain system providing reliable quality and competitive pricing
- Competitive Pricing: Most competitive prices with custom configuration discounts
- Secure Payment: Multiple payment options including credit cards, PayPal, and wire transfer
- Fast Delivery: Professional and reliable shipping services
- 14+ Years Experience: Extensive industry expertise and technical knowledge
Packaging & Shipping
Frequently Asked Questions
Q: What are your main products?
A: Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, and Wireless APs.
Q: What brands do you offer?
A: We can supply all major networking equipment brands.
Q: What services do you provide?
A: We accept FOB, CFR, EXW, FCA delivery terms and multiple payment methods including T/T, PayPal, Western Union, and cash in USD, EUR, CAD, HKD, GBP, CNY.
Q: Can we get free samples?
A: Samples are available for purchase but not provided free of charge.
Q: How do you guarantee quality?
A: Pre-production samples and final inspection before shipment ensure consistent quality.
Q: What is your delivery time?
A: Typically 1-10 days after deposit receipt, depending on product configuration and order quantity.
Q: Do you test all goods before shipping?
A: Yes, all devices undergo professional testing before shipment.
Q: What is your minimum order quantity?
A: Minimum order quantity is 1 piece.
