Name: Hybrid PV-Diesel Microgrid BESS Cabinet with 100kWh+55kW LiFePO4 Battery and IP54 Protection for Industrial Energy Storage
Brand: test
SKU: Ain-100kwh+55kw
Price: 20000 USD
Availability: InStock

Home > Products > Energy >

Hybrid PV-Diesel Microgrid BESS Cabinet with 100kWh+55kW LiFePO4 Battery and IP54 Protection for Industrial Energy Storage

100kWh+55kW Energy Storage System Battery Cabinet

LiFePO4 Battery Hybrid PV-Diesel Microgrid BESS Cabinet

IP54 Protection Industrial Battery Storage Cabinet

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Model Number:

Ain-100kwh+55kw

Request A Quote

Hybrid PV-Diesel Microgrid BESS Cabinet with 100kWh+55kW LiFePO4 Battery and IP54 Protection for Industrial Energy Storage

Product Details

Cycle Life:

6000 Cycles (80%Dod)

Specification:

740X1348X2280 Cm

Grid Connection:

Off Grid, Hybrid Grid, On Grid

Energy Capacity:

100kWh-500kWh

Communication Port:

RS485, WiFi

AC Frequency:

50Hz/60Hz

Parallel:

Cooling Method:

Air Cooling System/Full Liquid Cooling

MPPT Voltage Range:

200~800VDC

Power Configuration:

50kw-1MW

Weight:

1200kg

Battery Type:

LiFePO4

Battery Energy:

100kwh+55kw

AC Rated Power:

55KW

Protection Class:

IP54

Highlight:

100kWh+55kW Energy Storage System Battery Cabinet

LiFePO4 Battery Hybrid PV-Diesel Microgrid BESS Cabinet

IP54 Protection Industrial Battery Storage Cabinet

Payment & Shipping Terms

Minimum Order Quantity

Price

20000

Related Products

Contact Now

Product Description

Air Cooling Energy Storage System Battery Cabinet for Industrial & Commercial PVDG BESS

Product Specifications

Product Name	Hybrid PV-Diesel Microgrid BESS Cabinet
Warranty	5 Years
Grid Connection	Off Grid/Hybrid Grid/On Grid
Battery Type	LiFePO4
Battery Module	100KWh
AC Rated Power	55KW
Protection Class	IP54

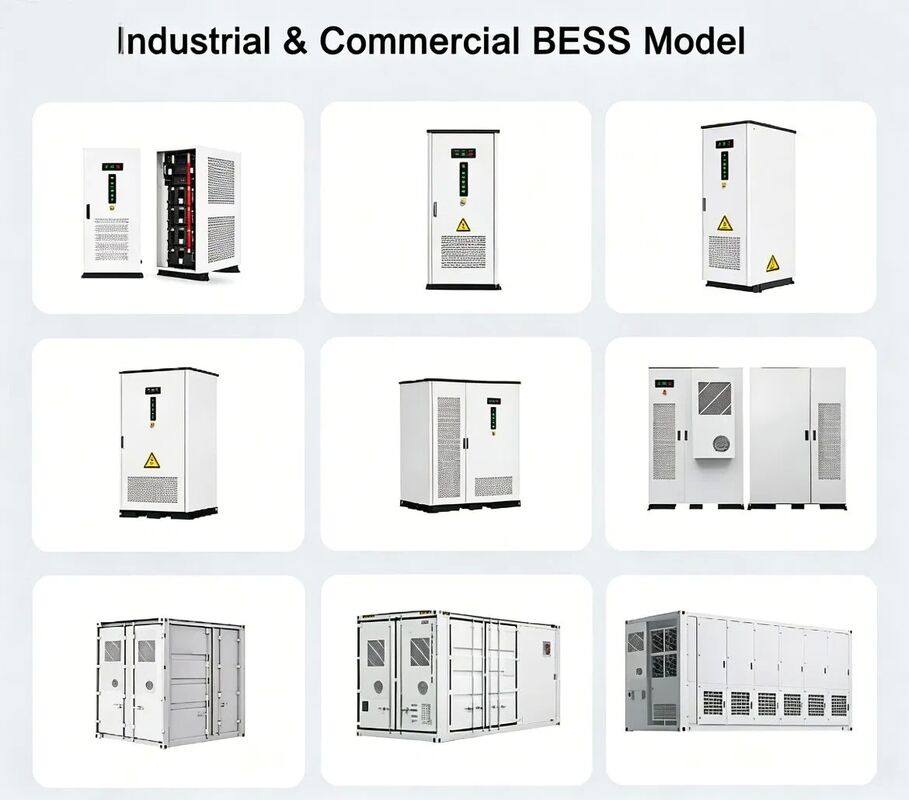

Diverse Portfolio for Every Requirement

Full Scenario Compatibility: Our range spans from standalone cabinets to container systems, offering solutions for projects like mining sites, telecom stations, industrial parks, and complexes.
Scalable & Flexible Design: With modular, parallel operation, our BESS supports capacity expansion, fitting small off-grid or large peak-shaving needs.
Customized Solutions for Specific Requirements: We offer flexible configurations in power, capacity, and environmental protection (IP54+), adapting to harsh conditions and meeting project specifications.

Grade A Cells for Safety and Quality

Built with Grade A LiFePO4 cells, zero cycles and zero degradation. Consistency eliminates risks like swelling and short circuits.
All cells pass safety tests (temperature, impact, penetration) with protection for residential and commercial use.
High energy density keeps modules compact, without compromising safety or lifespan.
6000+ cycles (over 16 years daily use), with 80% capacity retention after full cycles.

Product Advantages

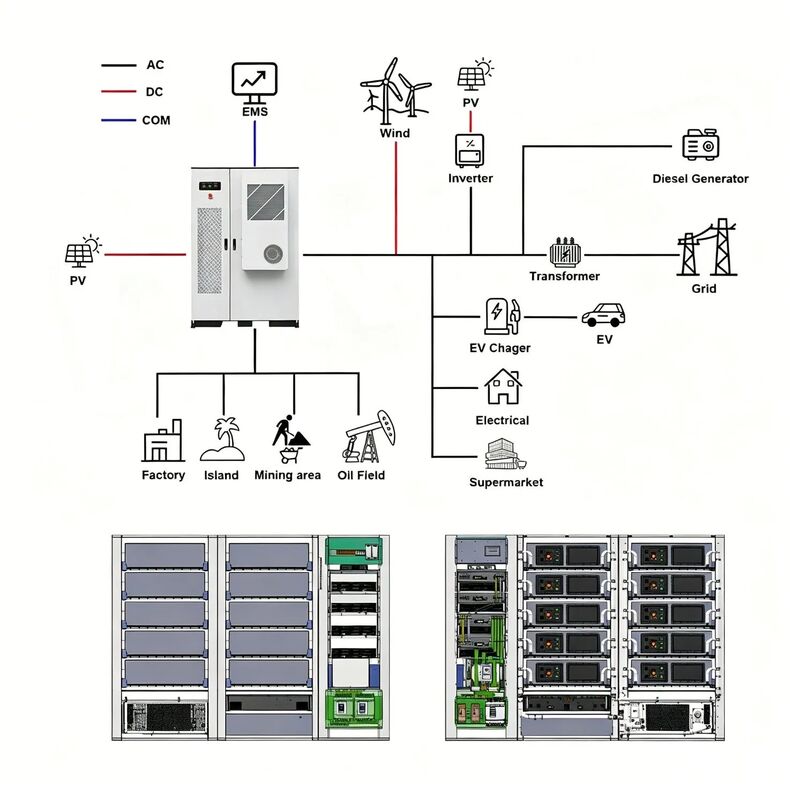

Multi-Energy Compatibility & Scenario Adaptability: Supports integration of solar PV, battery storage, diesel generators, and grid, forming a PVDG hybrid system. With <10ms switching, it operates on/off-grid, ideal for mines, oil fields, and telecom stations.

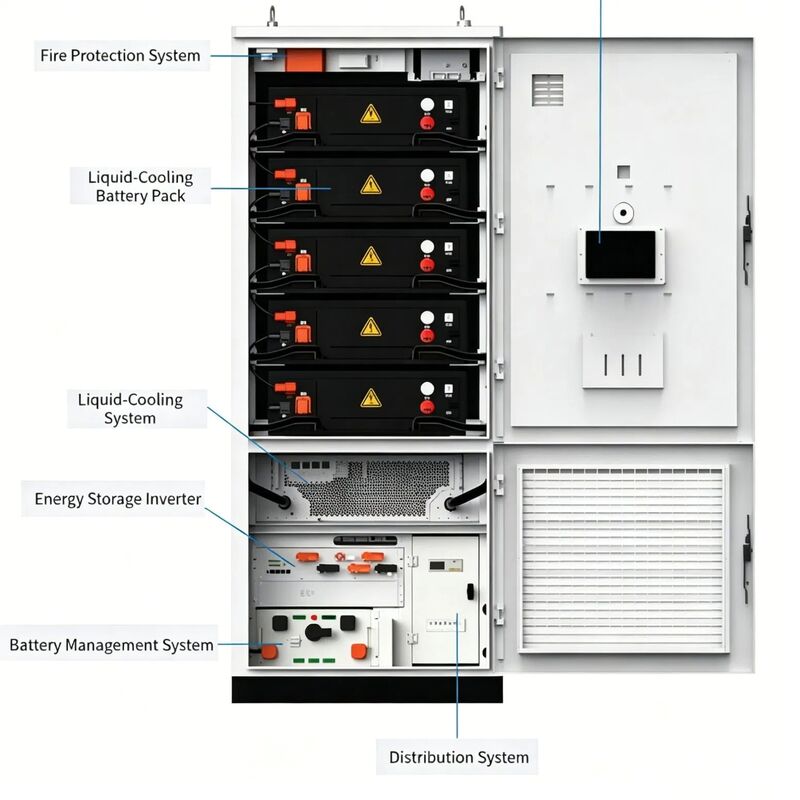

Integrated Design for Easy Deployment: Fully integrated with BMS, PCS, EMS, cooling, and fire protection systems, requiring no configuration. Rated IP54, it is dustproof, waterproof, and temperature-resistant for harsh environments.
Industrial-Grade Safety & Scalability: Built with LiFePO4 batteries and safety protections (overcharge, discharge, current, temperature). Modular design supports flexible capacity expansion for various scales.

Multi-Environment Compatibility

Off-Grid & Remote Sites: Ideal for mines, oil fields, telecom stations, and remote villages, providing stable power where grid is unavailable or unreliable.
Industrial & Commercial Facilities: Perfect for factories, parks, complexes, and hotels, supporting peak shaving, backup power, and cost savings.
Harsh Outdoor Conditions: With IP54-rated enclosure, it withstands dust, rain, and temperature fluctuations, suitable for desert, coastal, and high-altitude areas.

Specification Images

Company Profile

About Our Company

Anhui Xinben Mechanical & Electrical Eng. Co., Ltd., with 14+ years in lithium iron phosphate battery packs and new energy solutions, is based in Hefei, Anhui.

With automated lines and precision labs, Anhui Xinben Mechanical & Electrical Eng. Co., Ltd. ensures stable, reliable products. ISO 9001 certified, CE, RoHS, UN 38.3 certified, our products shine globally in sectors like portable batteries, home energy systems, BESS, and telecom backup.

Applications

Packing & Delivery

About Packing

Energy storage batteries are packed with shockproof foam, anti-static bags, and thick export cartons. For high-volume orders, wooden cases or pallets ensure protection during transit. Each package is labeled with product specifications, handling marks, and UN3480 hazard labels, compliant with international shipping standards.

About Shipping

We provide shipping solutions including sea, air, and express delivery (DHL/UPS/FedEx) based on customer needs. All lithium battery shipments include UN38.3 test reports, MSDS, and other documents for smooth customs clearance. We work with reliable forwarders to track and ensure safe, timely delivery.

Frequently Asked Questions

Q1. Are you a factory or trading company?

A: We are a factory, offering ODM&OEM services.

Q2. Do you have any MOQ limit for order?

A: Low MOQ, 1pc sample checking available.

Q3. What about the lead time?

A: Sample delivery: 5-7 days post-request. Mass production: 15-30 days post-order.

Q4: Can battery products be shipped by sea or air?

A: Absolutely. We partner with forwarders specializing in battery shipments.

Q5: Why should we choose you over other suppliers?

A: As a professional energy storage systems manufacturer, we specialize in PCS, battery packs, BMS, EMS, transformers, and heating systems.

Q6: How to deal with the faulty?

A: Our strict quality control ensures a defective rate below 0.2%. During the guarantee period, we send new products with new orders for small quantities. For defective batch products, we repair and resend them or discuss solutions like recall based on actual conditions.
