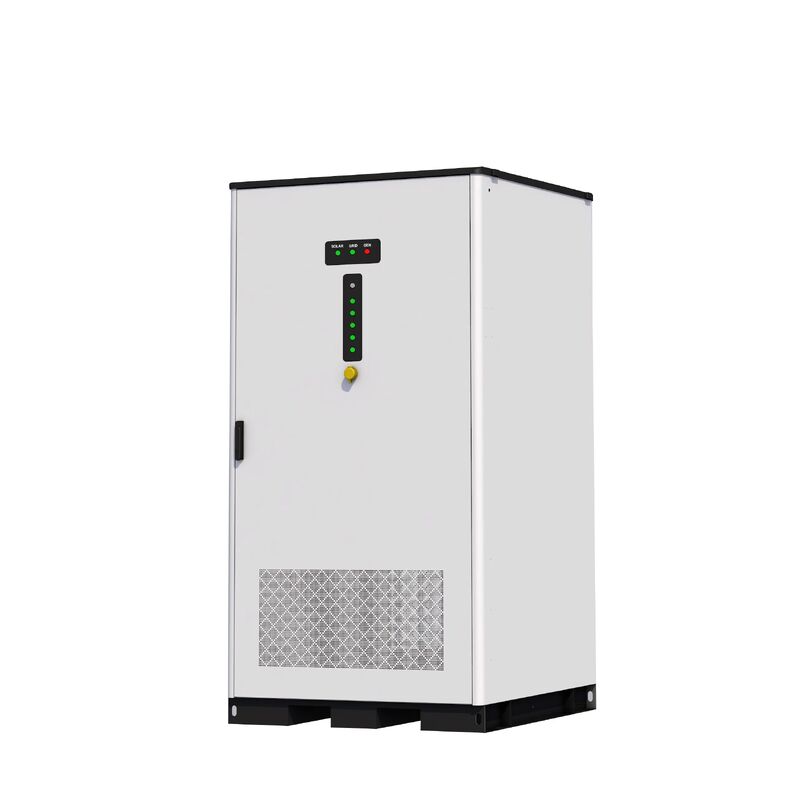

Name: 100kWh+55kW LiFePO4 Battery BESS Cabinet with IP54 Protection for Hybrid PV-Diesel Microgrid Energy Storage System
Brand: test
SKU: Ain-100kwh+55kw
Price: 20000 USD
Availability: InStock

Home > Products > Energy >

100kWh+55kW LiFePO4 Battery BESS Cabinet with IP54 Protection for Hybrid PV-Diesel Microgrid Energy Storage System

100kWh+55kW BESS Cabinet

LiFePO4 Battery Energy Storage System

IP54 Protection Hybrid PV-Diesel Microgrid

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Model Number:

Ain-100kwh+55kw

Request A Quote

100kWh+55kW LiFePO4 Battery BESS Cabinet with IP54 Protection for Hybrid PV-Diesel Microgrid Energy Storage System

Product Details

Battery Energy:

100kwh+55kw

Specification:

740X1348X2280 Cm

AC Frequency:

50Hz/60Hz

Communication Port:

RS485, WiFi

Cooling Method:

Air Cooling System/Full Liquid Cooling

Battery Type:

LiFePO4

Weight:

1200kg

MPPT Voltage Range:

200~800VDC

Parallel:

Power Configuration:

50kw-1MW

Cycle Life:

6000 Cycles (80%Dod)

Energy Capacity:

100kWh-500kWh

Cooling:

Air Cooling

AC Rated Power:

55KW

Protection Class:

IP54

Highlight:

100kWh+55kW BESS Cabinet

LiFePO4 Battery Energy Storage System

IP54 Protection Hybrid PV-Diesel Microgrid

Payment & Shipping Terms

Minimum Order Quantity

Price

20000

Related Products

Contact Now

Product Description

55kW 100kWh Commercial Solar BESS C&I Energy Storage System

Product Name	Hybrid PV-Diesel Microgrid BESS Cabinet
Warranty	5 Years
Grid Connection	Off Grid/Hybrid Grid/On Grid
Battery Type	LiFePO4
Battery Module	100KWh
AC Rated Power	55KW
Protection Class	IP54

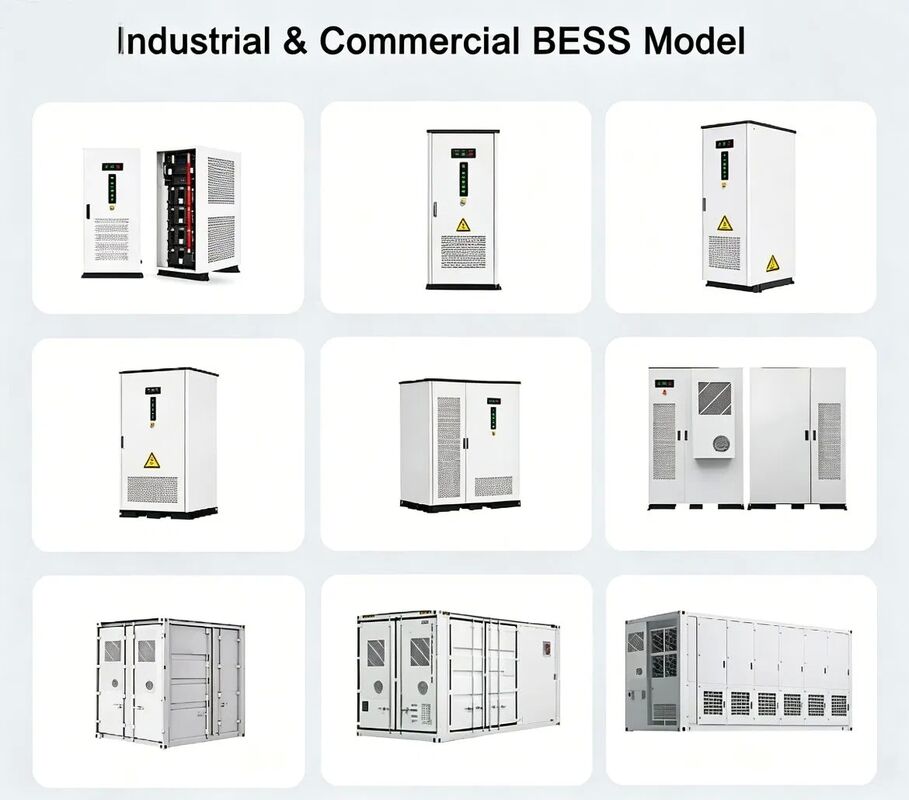

Multi-Model Portfolio for Every Need

Full Scenario Compatibility: Our range spans standalone cabinets to containerized systems, offering solutions for projects from mining to telecom stations, industrial parks, and complexes.
Highly Scalable & Flexible Design: With modular parallel operation, our BESS allows easy capacity expansion for small off-grid or large peak-shaving applications.
Customized Solutions for Specific Requirements: We offer flexible configurations in power, capacity, and protection (IP54+), adapting to harsh conditions and client specifications.

Brand-new Grade A Cells for High Safety and Quality

Built with new Grade A LiFePO4 cells, zero cycles and initial degradation. Superior consistency avoids swelling, leakage, and shorts.
All cells pass strict safety tests (high/low temperature, impact, penetration) with multi-layer protection for residential and commercial applications.
High energy density keeps modules compact, ensuring safety and lifespan.
6000+ cycles (16+ years of daily use), retaining over 80% capacity after cycles.

The Advantages of This Product

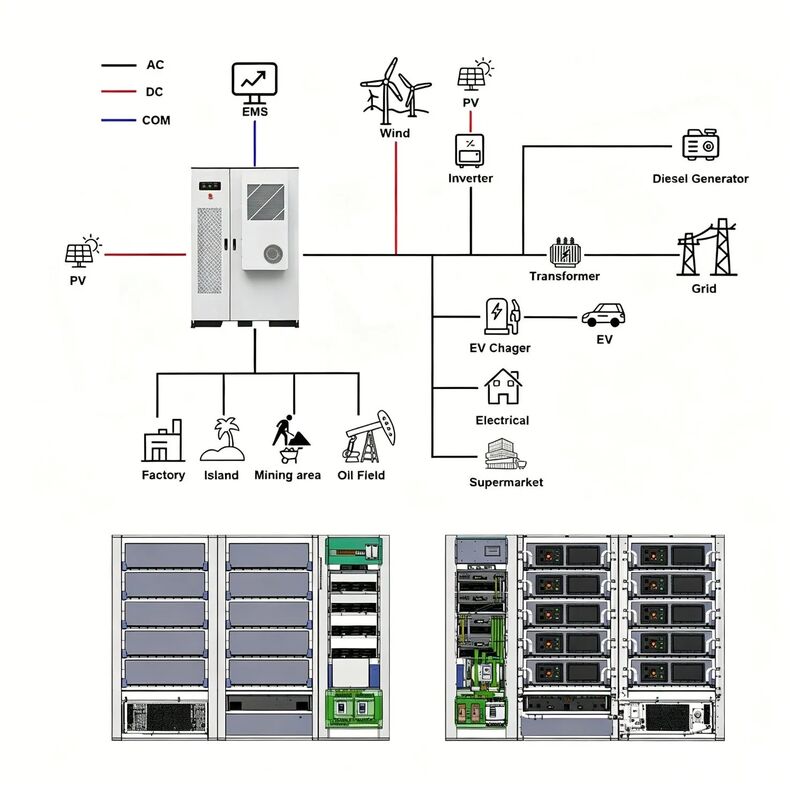

Multi-Energy Compatibility & Full-Scenario Adaptability: Integrates solar PV, battery, diesel, and grid into a PVDG hybrid. <10ms on/off-grid switching suits peak shaving and off-grid use in remote areas.

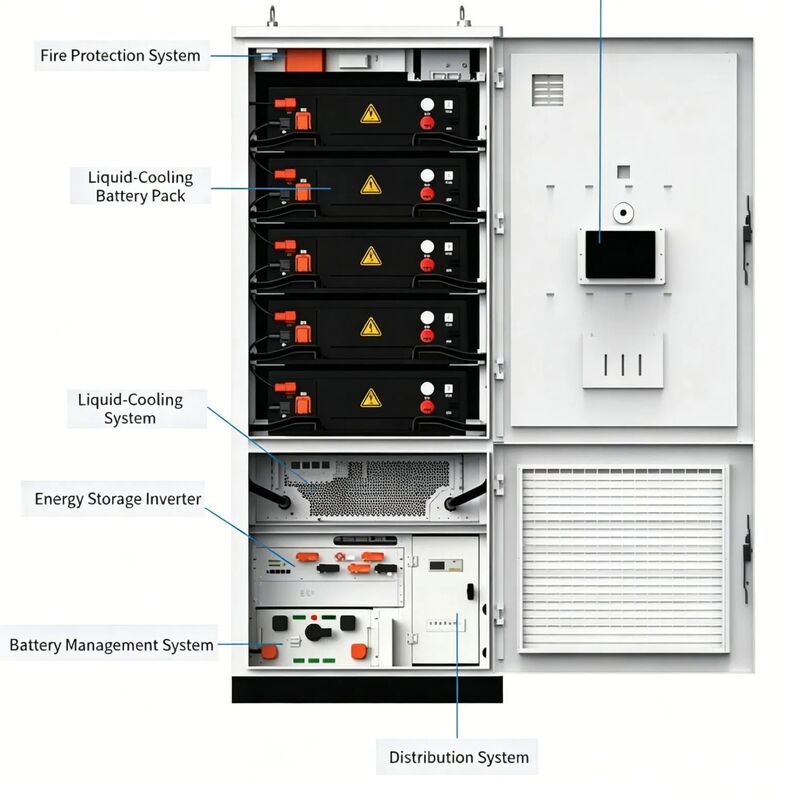

All-in-One Integrated Design for Easy Deployment: Fully integrated with BMS, PCS, EMS, cooling, and fire systems, needs no extra setup. Rated IP54 for outdoor use, it withstands harsh environments.
Industrial-Grade Safety & Scalability: Built with LiFePO4 batteries and safety protections (overcharge, discharge, current, temperature). Modular design supports capacity expansion.

Multi-Environment Compatibility

Off-Grid & Remote Sites: Ideal for mines, oil fields, telecom stations, and remote villages, providing reliable power.
Industrial & Commercial Facilities: Perfect for factories, parks, complexes, and hotels, supporting peak shaving, backup power, and energy savings.
Harsh Outdoor Conditions: With IP54-rated enclosure, withstands dust, rain, and temperature shifts for desert, coastal, and high-altitude applications.

Specification

Company Profile

About Our Company

Anhui Xinben Mechanical & Electrical Eng. Co., Ltd., boasts 14+ years in lithium iron phosphate battery packs and new energy solutions, based in Hefei, Anhui Province.

With automated lines, precision labs, and efficient aging equipment, Anhui Xinben Mechanical & Electrical Eng. Co., Ltd. ensures stable, reliable products. ISO 9001 certified, with CE, RoHS, UN 38.3 certifications, our products excel globally in portable batteries, home energy systems, BESS, and telecom backup.

Applications

Packing & Delivery

About Packing

All energy storage batteries are expertly packed with shockproof foam, anti-static bags, and export cartons. For large orders, wooden cases or pallets are used to ensure protection during transit. Each package is labeled with specifications, handling marks, and UN3480 hazard labels, compliant with international shipping standards.

About Shipping

We offer flexible shipping, including sea freight, air freight, and express delivery (DHL/UPS/FedEx). All lithium shipments are prepared with complete UN38.3 test reports, MSDS, ensuring smooth customs clearance. We partner with reliable freight forwarders for safe, on-time delivery to ports or door-to-door.

FAQ

Q1. Are you a factory or trading company?

A: We are a factory, offering ODM&OEM services.

Q2. Do you have any MOQ limit for order?

A: Low MOQ, 1pc sample available.

Q3. What about the lead time?

A: Sample delivery: 5-7 days post-request. Mass production: 15-30 days post-order.

Q4: Can battery products be shipped by sea or air?

A: Absolutely. We partner with forwarders specializing in battery shipments.

Q5: Why should we choose you over other suppliers?

A: As a pro energy storage systems manufacturer, we specialize in PCS, battery packs, BMS, EMS, transformers, and heating systems.

Q6: How to deal with the faulty?

A: Our products are made under strict quality control with a defective rate under 0.2%. During the guarantee, new products are sent with new orders for small quantities. For defective batches, we repair and resend or discuss solutions, including recalls, as needed.
