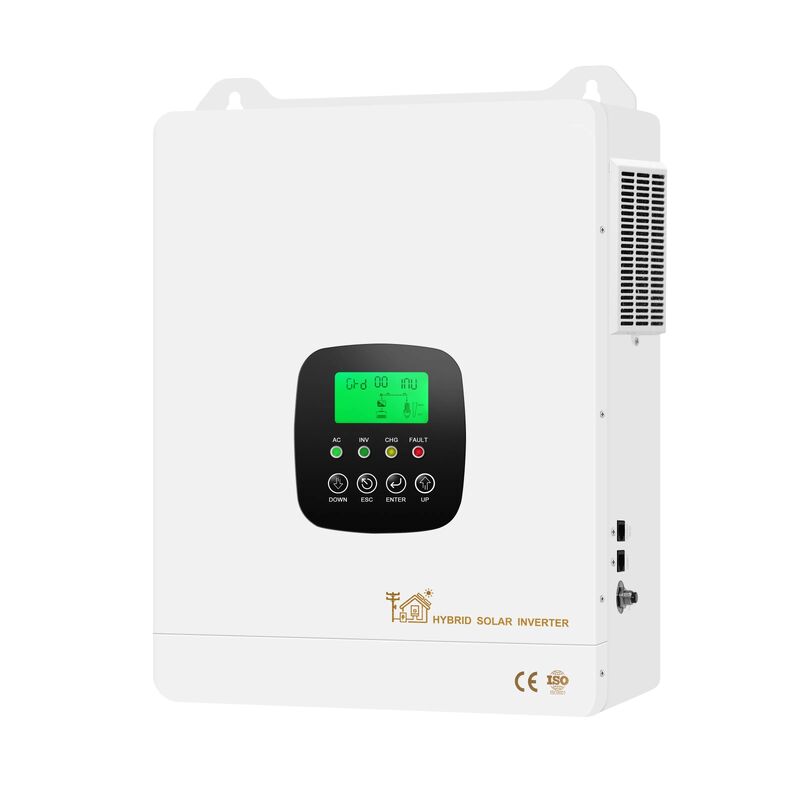

Name: Efficient Portable Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range 30Vdc-80Vdc for Pure Sine Wave Output
Brand: test
Price: 180 USD
Availability: InStock

Home > Products > Energy >

Efficient Portable Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range 30Vdc-80Vdc for Pure Sine Wave Output

Bidirectional Energy Storage Solar Inverter

Ultra-Wide MPPT Range 30Vdc-80Vdc DC/DC Inverter

Pure Sine Wave Output Energy Storage Inverter

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Efficient Portable Solar Inverter with Bidirectional Energy Storage and Ultra-Wide MPPT Range 30Vdc-80Vdc for Pure Sine Wave Output

Product Details

Model NO.:

10212

Power Source:

Solar Power, Wind Power

Type:

DC/DC Inverters

Circuit Topologies:

Push-pull Type

Output Power:

>1000W

Rated Power:

1000W, 1300W, 1800W, 2300W, 3300W

Max PV Input Power:

1500W, 2000W, 2500W, 3000W, 5000W

MPPT Tracking Voltage Range:

30Vdc-240Vdc, 40Vdc-350Vdc, 40Vdc-450Vdc

Rated Voltage:

180Vdc, 240Vdc

Max PV Input Voltage:

300Vdc, 400Vdc, 500Vdc

Max PV Input Current:

13A, 15A, 18A

Battery Type:

Lead-acid Battery/Lithium Battery

Rated Battery Voltage:

12Vdc, 24Vdc

Battery Voltage Range:

10.5-15Vdc(default), 21-30Vdc(default)

Max PV Charging Current:

60A, 80A, 100A, 120A

Highlight:

Bidirectional Energy Storage Solar Inverter

Ultra-Wide MPPT Range 30Vdc-80Vdc DC/DC Inverter

Pure Sine Wave Output Energy Storage Inverter

Payment & Shipping Terms

Minimum Order Quantity

Price

180

Related Products

Contact Now

Product Description

Efficient Portable Solar Inverter with Integrated 230V Control System

Reliable Wall-Mounted Home Battery Storage System

High-frequency, high power density compact design with exceptional efficiency. Features bidirectional energy storage enabling both solar and mains charging capabilities with ultra-wide MPPT range.

Key Features

Bidirectional energy storage for solar and mains charging
Ultra-wide MPPT range: 30Vdc-80Vdc
Configurable operation modes: grid-connected, off-grid, hybrid
Allows grid-connected current setting
Provides output and charging priority settings
Features BMS communication for lithium batteries
Supports battery-free operation mode
Customizable battery parameters via operation panel

Technical Specifications

Parameter	1000W	1300W	1800W	1800w	2300W	3300W
Rated Power	1000W	1300W	1800W	1800w	2300W	3300W
Max PV Input Power	1500W	2000W	2500W	2500W	3000W	5000W
MPPT Tracking Voltage Range	30Vdc-240Vdc		40Vdc-350Vdc		40Vdc-450Vdc
Rated Voltage	180Vdc			240Vdc
Max PV Input Voltage (VOC)	300Vdc		400Vdc		500Vdc
Max PV Input Current	13A	15A	18A	-	-	-
MPPT Tracking Channels	1 Routed
Battery Type	Lead-acid Battery/Lithium Battery
Rated Battery Voltage	12Vdc			24Vdc
Battery Voltage Range	10.5-15Vdc (default)			21-30Vdc (default)
Max PV Charging Current	60A	80A	100A	60A	80A	120A
Max AC Charging Current	40A	50A	65A	35A	50A	80A
Max Charging Current	60A	80A	100A	60A	80A	120A
Rated Input Voltage	230V (220V or 240V can be set)
Mains Input Voltage Range	165Vac-280Vac/120Vac~280Vac (Can be set)
Rated Input Frequency	50Hz/60Hz
Input Frequency Range	45Hz-55Hz(50Hz), 55Hz-65Hz(60Hz)
Rated Output Voltage	230V (220V or 240V can be set)
Output Voltage Accuracy	±2%
Output Frequency Accuracy	±1%
Output Wave	Pure Sine Wave
Output Current	4.3A	5.6A	7.8A	7.8A	10A	14.3A
Grid Voltage Range	187Vac~264Vac
Power Factor	>0.98 (Rated Power)
No Load Loss (Battery Discharge)	1% Rated Power (Typical value)
MPPT Tracking Efficiency	≥99.9%
Transfer Time	10ms (Typical value)
Display	LCD+LED
Cooling Method	Cooling fan in intelligent control
Communication	RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional)
Protection Degree	IP20
Anti-islanding Protection	≤2S

Physical Dimensions

Model	Product Size (L×W×H mm)	Package Size (L×W×H mm)	Net Weight (kg)	Gross Weight (kg)
1000W	265×231×91	340×286×156	3	3.5
1300W	285×250×91	360×305×156	3.6	4.5
1800W	310×250×91	385×305×156	4	5
1800w	285×250×91	360×305×156	3.7	4.6
2300W	325×275×102	400×330×167	3.9	4.8
3300W	-	-	5.5	6.5
