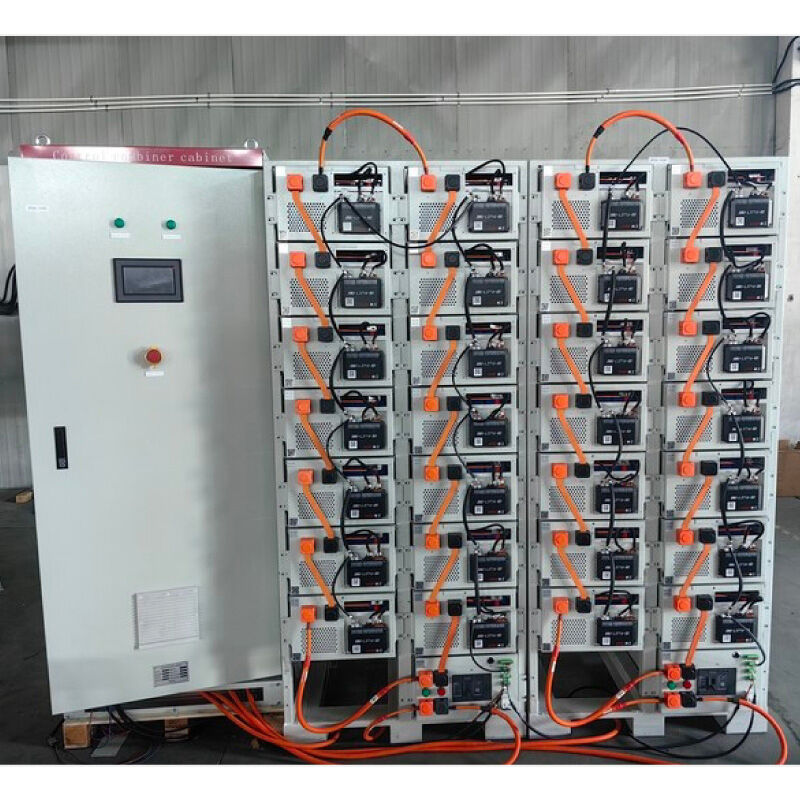

ISO9001 Certified 522kWh Nominal Capacity Lithium Battery Energy Storage System with 5000 Cycles Life and Aerosol Fire Fighting

522kWh Nominal Capacity Lithium Battery Energy Storage System

5000 Cycles Life BESS

Aerosol Fire Fighting Cabinet Energy Storage

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

ISO9001 Certified 522kWh Nominal Capacity Lithium Battery Energy Storage System with 5000 Cycles Life and Aerosol Fire Fighting

Product Details

Cell Type:

LFP

Rated Power:

200kw

Fire Fighting:

Aerosol

Cooling Mode:

Air Cooling

Cycle Life:

5000cycles

Dimensions:

2400x2200x2040mm

Nominal Capacity:

522kwh

Weight:

<7500kg

Group Mode:

66 1p12s Modules In Series

Communication:

LAN/Can/RS485

Battery Type:

LFP 100Ah

Battery Energy:

532.48kWh

Nominal Voltage:

1331.2V|665.6V

Voltage Range:

1164.8~1497.6V|582.4~748.8V

Max CP-rate:

0.5CP

Highlight:

522kWh Nominal Capacity Lithium Battery Energy Storage System

5000 Cycles Life BESS

Aerosol Fire Fighting Cabinet Energy Storage

Payment & Shipping Terms

Minimum Order Quantity

Price

95414

Related Products

Contact Now

Product Description

ISO9001 Industrial & Commercial Short-Circuit Proof Integrated BESS Lithium Battery Energy Storage System

Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.

Core Advantages

General Specification	1500V	750V
Battery Type	LFP 100Ah
Battery Energy Capacity (kWh)	532.48
Nominal Voltage (V)	1331.2	665.6
Battery Voltage Range (V)	1164.8~1497.6	582.4~748.8
Max. CP-rate	0.5CP
Module Configuration	2P16S26S2P	2P16S13S4P
Dimension (WxHxD) (mm)	220024431400
Weight (kg)	6000
Max. Support Parallel Number	8	4
Audible Noise (dBA)	75
Operating Ambient Temperature	-30~55°C
Cooling Mode	HVAC
Protection Class	IP54
Anti Corrosion Level	C4
Operating Humidity	0~95% (no condensation)
Fire Suppression	Aerosol
Altitude (m)	≤3000m
Communication Protocol	Modbus TCP

Combiner Cabinet Specifications

Max. DC Voltage (V)	1,500
DC Current (A)	914*2
DC Branch	2
Dimension (WHD, mm)	180024431000
Weight (kg/unit)	1200
IP Rating	IP55

Certification & Compliance

Safety: IEC62619, UL1973, UL9540A
Transportation: UN38.3
EMC: EMC, FCC
