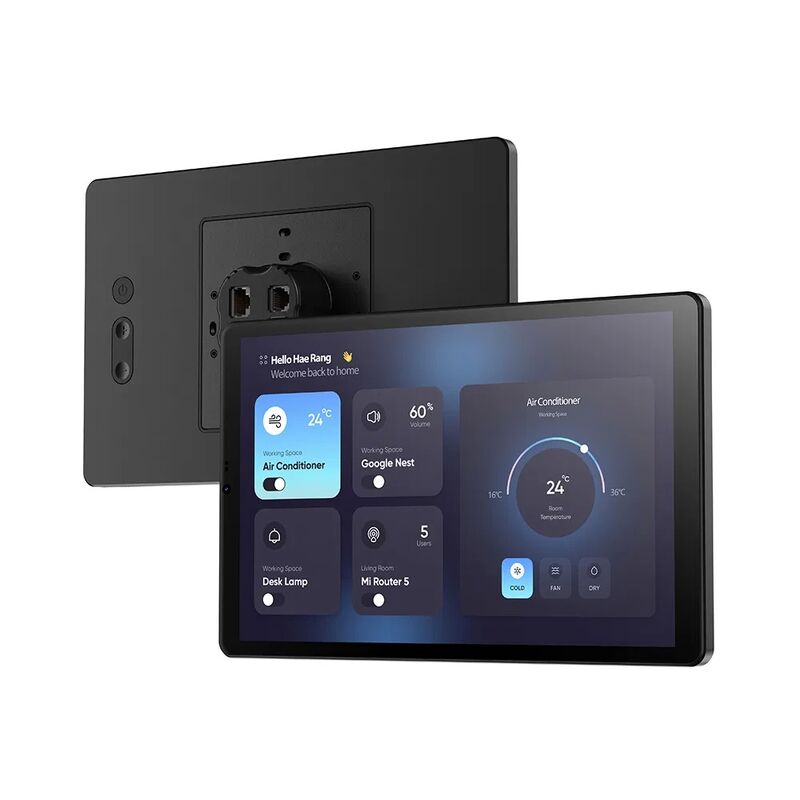

WP103 10.1-inch PoE Wall-Mounted Tablet
Professional Android tablet designed for smart control applications with Power over Ethernet support
Product Overview
The WP103 10.1-inch PoE wall-mounted tablet delivers a smooth, intelligent control experience for modern environments. Featuring a vivid 10.1-inch Full HD touchscreen and powered by the MT8768 processor, it runs on Android OS with Google GMS support for stable performance and broad compatibility.
Configured with 4GB RAM and 64GB internal storage, the device supports efficient multitasking and ample storage for applications. It integrates dual high-quality speakers, a built-in proximity wake-up sensor with 50cm detection range, and optional NFC functionality for access control and guest interaction.
With Power over Ethernet (PoE) support, the WP103 enables both power and network connectivity through a single Ethernet cable, simplifying installation. Its professional design makes it ideal for smart homes, hospitality, healthcare, industry, retail, offices, and public infrastructure.
Regional Compatibility
PoE Tablet PCs with EU Box Compatibility
PoE Tablet PCs with UK Box Compatibility
PoE Tablet PCs with US Box Compatibility
Application Scenarios
Smart Home Control Panel
Central touchscreen for controlling lighting, HVAC, security systems, and entertainment with PoE installation and proximity sensor wake-up.
Hotel Room Automation & Guest Service
Dedicated guest service panel for room control, entertainment interface, service requests, and checkout with NFC support.
Commercial/Hospitality Ordering & Lobby Kiosk
Self-service kiosk or interactive ordering terminal with NFC payments and dual speakers for voice prompts.
Healthcare & SeniorCare Environments
Patient info display, nurse call initiation, room monitoring, and controlled access via NFC in healthcare settings.
Industrial or Facility Automation Interface
HMI panel for monitoring machine status, controlling RS485 devices, and building system interfaces with PoE installation.
Digital Signage / Information Display
Digital signage unit for wayfinding, promotions, and real-time data in transportation hubs and retail environments.
Conference Rooms & Smart Office Spaces
Room-booking display and collaborative control panel for modern offices with NFC badge check-in.
Retail Checkout & Mobile Staff Assistance
Wall-mounted customer service terminal and staff-assisted checkout station with NFC payment support.
Smart Apartment or Multi-Unit Residential Lobby Panel
Tenant directory, visitor access panel, building services control, and community information center.
Transportation & Public Infrastructure
Passenger information, onboard entertainment control, ticketing interface, and crew control panel.
Industry-Specific Applications
Healthcare
Patient monitoring, medical equipment control, and medical record access in hospitals and clinics.
Digital Signage
Advertising display with temperature/humidity monitoring, optional no-camera configuration, and anti-theft design.
Smart Home / Hotel Automation
IEEE 802.3at PoE powered, NFC room-order payments, auto climate control via built-in sensors, radar occupancy detection, and Zigbee 3.0 coordination.
Industrial Automation
RJ45 power and networking, radar motion detection, Modbus RTU via RS485, and auto-rotating UI with gyroscope.
High-level Conference Halls
Paperless meetings with secure document handling and unified control for microphones, lighting, HVAC, and video systems.
Agriculture
Waterproof PoE switch compatibility, Zigbee soil data collection, radar animal detection, and high-brightness operation from -10°C to 50°C.
Hotel Front Desk
Self-service terminals for check-in/out, hotel information, and bookings with multilingual interface support.
Smart Office
IEEE 802.3at PoE powered, NFC badge sign-in, environmental reporting via MQTT, and radar presence detection.
Design & Customization Options
Customizable Enclosure Color
Standard black metal rear housing with optional white color customization to match interior designs.
Flexible Screen Orientation
Supports both landscape and portrait wall-mounted installation for various space layouts.
Custom Mounting Bracket
Powered via PoE, USB Type-C, or 12V DC input for compatibility with different power supply environments.
Desktop PoE Tablet
Ideal for nurse stations, meeting rooms, and reception areas with fast deployment and reduced installation complexity.
Key Features
- High-Definition Touch Display: 10.1-inch FHD (1920×1200) with G+F+F technology or optional HD IPS Incell 1280×800 display
- Wall-Mounted & Sleek Design: Professional installation for homes, hotels, and industrial spaces
- PoE & Flexible Power Options: Supports Power over Ethernet, USB, and RJ12 for simplified installation
- Rich Connectivity Interfaces: Includes RJ45, RS485, USB-C, and optional HDMI for system integration
- Optional NFC: Secure interactions for room access, payments, and identity verification
- Proximity Wake-up Sensor: 50cm sensor automatically activates tablet when users approach
- Dual Box Speakers: Clear stereo sound for media, voice prompts, and interactive applications
- Customizable Android OS: Supports OEM/ODM system customization, app preloading, and branding
- Reliable 24/7 Operation: Engineered for continuous operation in demanding environments
- Multiple Applications: Suitable for smart home, hotel control panels, HMI, kiosks, and digital signage
Technical Interfaces
RJ45 PoE Interface
Supports 48V~53V power and Ethernet for easy network integration
NFC
Near Field Communication support for contactless interactions
Display & Sensor Features

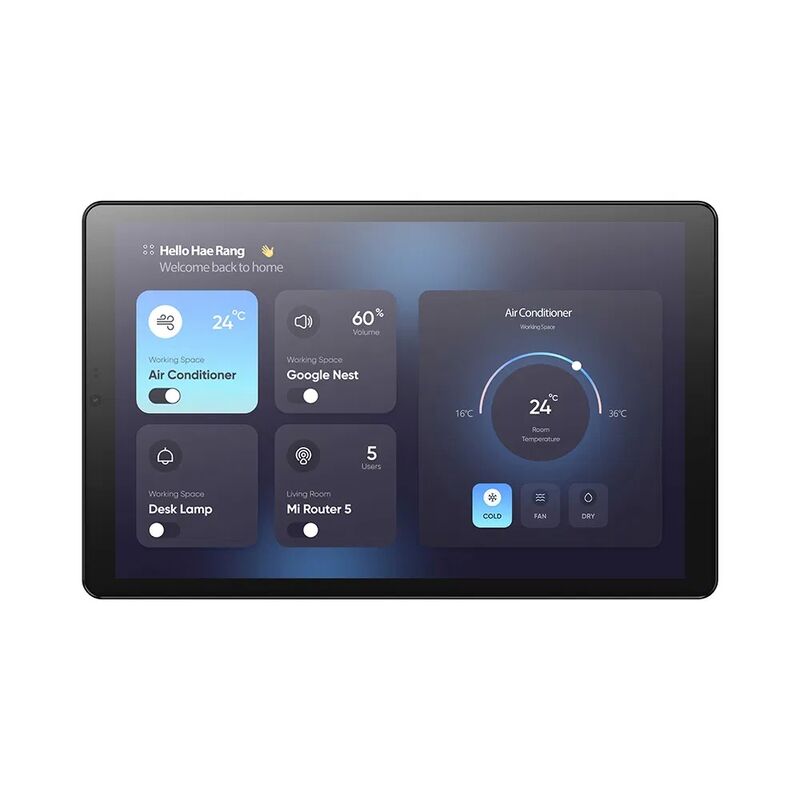

10.1-inch Display
HD 1280 x 800 display with incell technology or optional 1920 x 1200 FHD for clear, vibrant visuals
Anti-Fingerprint Screen
Anti-fingerprint coating to keep display clean and clear
5.8G Millimeter Wave Radar, Proximity Wake-up
5.8G millimeter wave radar for enhanced user interaction and proximity detection
Seamless Integration
Flush-mount design creates clean, professional, and clutter-free desktop aesthetic for high-end venues
RJ12 Interface with RS485 Function
RJ12 interface with RS485 functionality for communication with other devices
Zigbee 3.0
Zigbee 3.0 support for seamless integration with smart home devices
USB Type C
USB Type C port for power and data transfer alongside Ethernet connection when PoE is unavailable

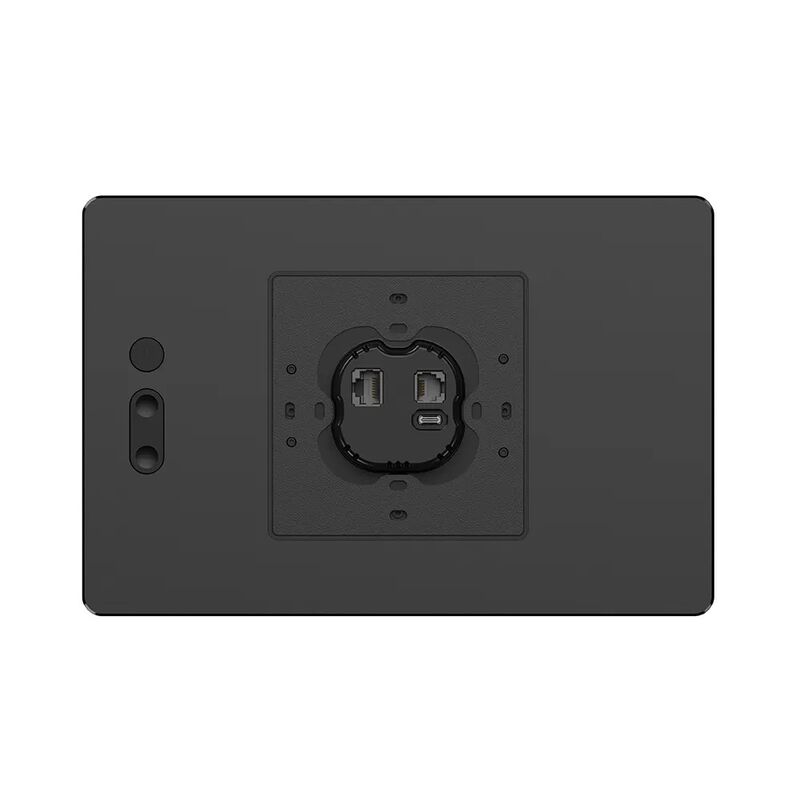

Magnetic Design
Magnetic design for easy wall-mounting or docking
Hardware Specifications
| Component |
Specification |
| Chipset & Platform |
CPU: MTK8768, Octa core, Cortex-A53, 2.0GHz
GPU: IMG GE8320 |
| Memory |
RAM: 4GB LPDDR4
ROM: 64GB eMMC |
| Operating System |
Android 16, Android 15, Android 14 with GMS |
| Display |
Screen: 10.1 inch TFT LCD IPS
Resolution: 1920x1200 FHD or 1280x800 HD
Brightness: 250cd/m²
Contrast Ratio: 1000:1
View Angle: 85°
Touch Panel: Capacitive 5-point multi-touch, Incell, G+FF full lamination |
| Wireless |
WiFi: IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz
Bluetooth: Bluetooth 5.0
NFC: Front under-screen Optional
Zigbee: Optional |
| Camera & Audio |
Camera: Front 5.0MP (optional, removable)
Speaker: Box speakers 8Ω/1.0W*2
Mic: Built-in*1 |
| I/O Ports |
USB: 1*USB-C (data & OTG), 5V 2A
RS485: 1*RJ12, 12~24V 1.5A
RJ45: 1*100M, PoE (12.5W)
Buttons: power, vol-, vol+ |
| Power Supply |
Battery: /
TYPE-C: 5V2A
POE: 12.5W 48~53V
RJ12: 12~24V 1.5A |
| Functions |
Accelerometer (G-sensor): Optional
Gyroscope: Optional
Light sensor: Optional
Proximity sensor: 50cm proximity sensor Optional
Humiture sensor: Optional |
| Mechanical |
Dimensions: 243 x 152 x 10mm
Weight: TBD
Mount: Wall mount supported
Housing materials: Metal |
| Environment |
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C |
| Certifications |
Optional: CE, FCC, RoHS, KC... |
| Accessories |
In the Box: Manual, warranty card |
Optional Hardware Features
- Matter/Zigbee/Zwave optional
- NFC (front-facing/under screen) optional
- Front Camera optional
- mmWave radar optional
- 1920x1200 IPS FHD Screen Optional
Packaging & Shipping
| Size |
QTY/CTN |
G.W./CTN |
CTN Size(cm) |
CTN/PLT Air |
CBM.G.W/PLT |
CTN/PLT sea/train |
CBM.G.W/PLT |
20GP PLT |
20GP No PLT |
| 10.1-inch |
10pcs |
9kg |
33*21*32 |
72 |
1.8/655KG |
90 |
2.1/815KG |
8000pcs |
10000pcs |
Pallet Size: 1.2m*1m
Height restriction for sea/train: 1.8m~2m
20GP Size: 5.898*2.352*2.385 | Capacity for pallet: 9pcs | Volume capacity: 25-28 cbm
40GP Size: 12.032*2.352*2.285 | Capacity for pallet: 21pcs | Volume capacity: 55-58 cbm
40HQ Size: 12.032*2.352*2.69 | Capacity for pallet: 21pcs | Volume capacity: 62-65 cbm
Our Services
OEM Services
- Print Logo on Back Case (Plastic/Metal), Touch Panel (with batch purchase 3000PCS) and accessories
- Support free Artworks customization
- Support free Software customization (Start screen/Wallpaper/System information/Pre-install Apps etc)
ODM Services
We offer ODM solutions for customers with specific needs not satisfied by existing market devices
- ID/MD/PCB/Accessories/Package design
- Software customization/debugging/provide SDK or source code
ODM Application Fields: Smart home IoT projects, Smart Kitchen Appliance, Smart healthcare products, OBD & Navigation devices, Smart Payment Terminal, Education projects, Smart gym solutions
After-sale Service
- 1 year warranty for all products (exclude accessories)
- Spare parts recommendations for local service handling
- Instructional videos for product assembly and repair
- Technical staff training available
- Lifetime technical support
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options.
Our smart panels feature advanced functions including 5G, LTE, Wi-Fi, PoE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, and AI acceleration, providing excellent HMI experience for various industries.
Industries Served: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more.
Our professional R&D, sales, and service teams have extensive experience delivering numerous large ODM and OEM custom projects, focusing on hardware and OS development with integrated MDM and OTA applications.
Customer Feedback
Frequently Asked Questions
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook?
A1: Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software(SW) development?
A2: Normally we do system and driver level development. Application-level development will be done by Client or 3rd party software developer assigned by clients.
Q3: Which OS can you support development?
A3: Yes, we can support tablet PC & smartphone custom OS based on Android OS, Windows OS, Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4: Yes, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE, USB Type C, DC IN, HDMI interface.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes, we have rich experience with educational cases including 7-inch wifi version PND, Ecer 1-inch OBD, 8-inch T618 4g tablet, and 10.1-inch android headrest entertainment tablet.
Q7: Can you support customization of accessories for smart devices?
A7: Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device.
Q8: Can you provide prototype samples?
A8: Yes, we can provide prototype samples before bulk order. We need detailed requirements to propose the best solution.
Q9: What's the normal ODM product development time?
A9: Normally 3-5 months, depending on project complexity. Contact us with detailed requirements for specific timeline.
Q10: How is the ODM device development cost calculated?
A10: Development charge includes Tooling design and PCBA development/hardware tuning. Cost depends on specific project requirements.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12: How to deal with the intellectual property?
A12: Joint development between clients and Pretech. Ownership depends on agreement between parties.
Q13: What's your after-sales service for ODM smart device?
A13: Standard 1-year warranty, with 2-year or more warranty available upon request.
