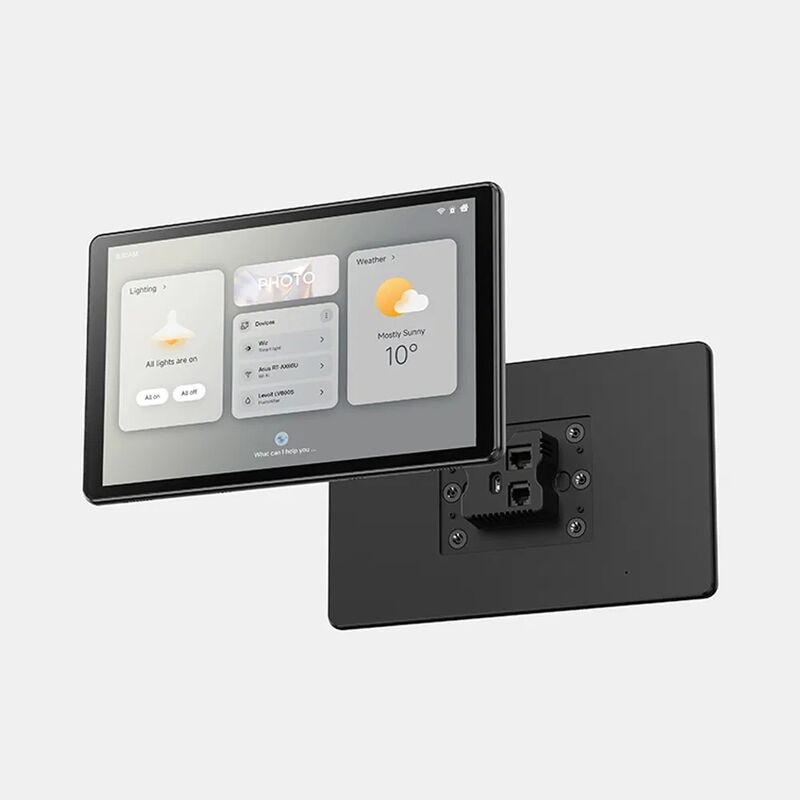

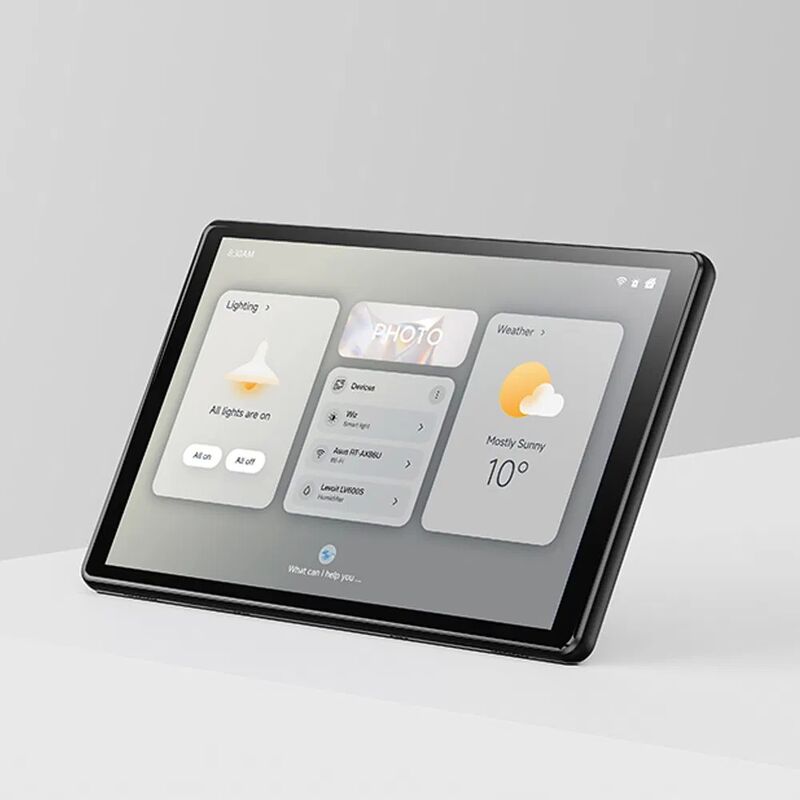

Smart Home Control Panel with POE, NFC, RS485, Thread, Zigbee & Matter Support
Product Overview
Advanced smart home control panel featuring POE, NFC, RS485 connectivity with support for Thread, Zigbee, Matter, and Zwave protocols. This octa-core device provides comprehensive home automation control in a sleek, wall-mounted design.
Key Features
- Three Charging Methods: 5V USB Type-C with OTG data transfer, 48V RJ45 POE with ethernet connection, and 12V RJ12 with RS485 communications

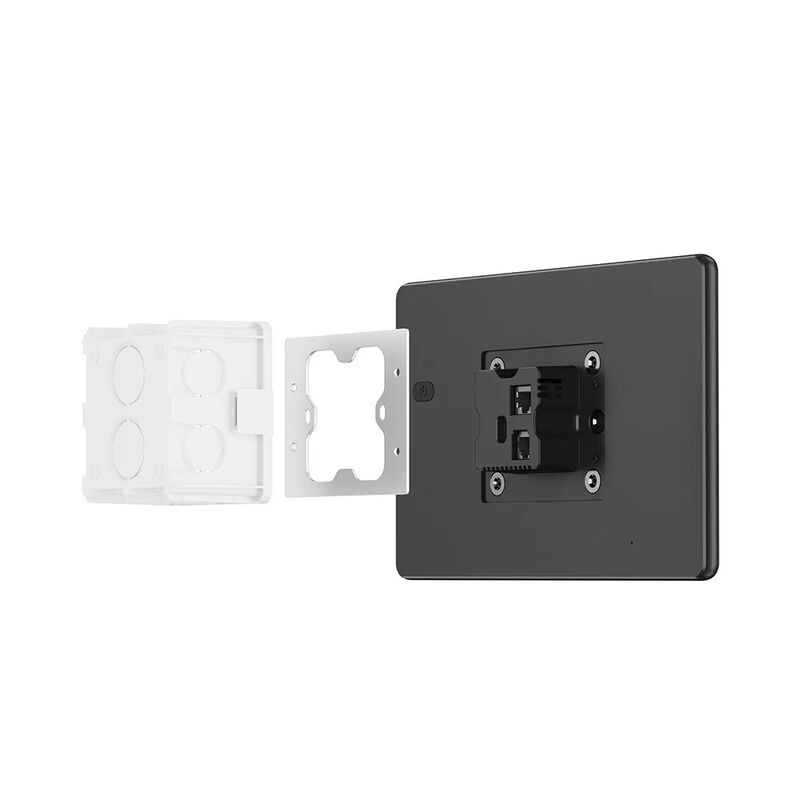

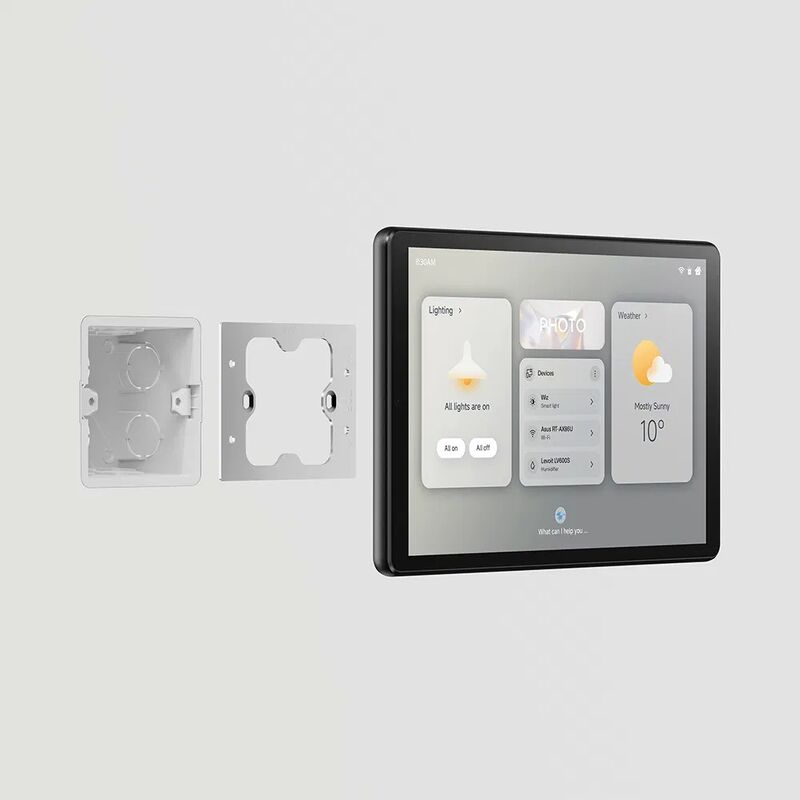

- Wall Mounted Solution: Designed for recessed outlet box installation
- Integrated Sensors: 500mm proximity distance sensor and temperature-humidity sensor
- Wireless Connectivity: Front NFC, with optional Zigbee/Thread support
- High-Quality Microphone: Excellent frequency response and high sensitivity with echo cancellation for IP calls
- Durable Construction: Aluminum alloy molded injection molding, shot blasting, fireproof plastic case with metal middle frame, water repellency design
- Efficient Operation: Low current consumption with advanced heat dissipation for continuous 24/7 operation
- Adjustable Backlight: Dimming levels adjustable via app from completely dark to full brightness
- Versatile Mounting: Can be easily mounted on walls or placed on desks for flexible use
- Space-Saving Design: Ideal for conserving space in home and office environments
- Easy Installation: Simple wall mounting or desktop setup with minimal effort
Technical Specifications
| Processor |
MTK8768, octa core Cortex-A53 2.0GHz, 12nm |
| Operating System |
Android 14 with software debugging support |
| Display |
10.1 inch TFT LCD IPS, 1200*1920 FHD resolution |
| Memory |
4GB LPDDR4 + 64GB eMMC |
| Speaker |
Box speakers 8Ω/1.0W*2 |
| Wireless |
IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz, Bluetooth 5.0, Zigbee/Thread/NFC Optional |
| Power Supply |
No Battery, Type-C (5V2A), POE (12.5W 48~53V), RJ12 (12~24V 1.5A) |

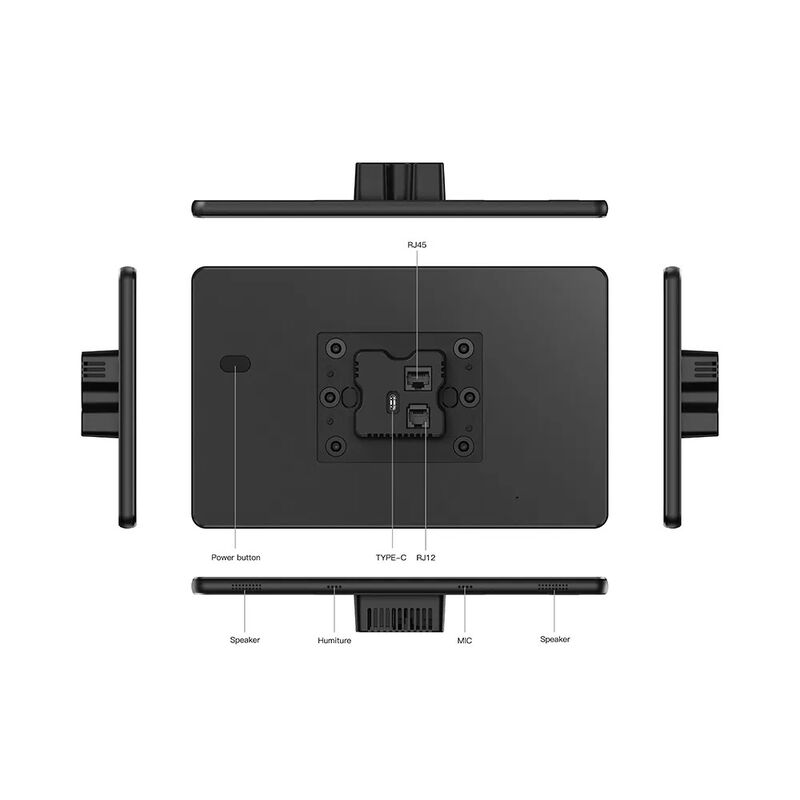

| I/O Ports |
RJ45 (POE), RJ12 (RS485), USB (Type-C), Buttons (power, volume) |
| Dimensions |
243 x 152 x 10mm, Metal housing, Wall mount supported |
Detailed Product Parameters
| Component |
Specifications |
| Chipset & Platform |
CPU: MTK8768, octa core, Cortex-A53, 2.0GHz
GPU: IMG GE8320
NPU: Not available
RAM: 4GB LPDDR4
ROM: 64GB eMMC
OS: Android 14 |
| Display |
Screen: 10.1 inch TFT LCD IPS
Resolution: 1200*1920 FHD
Brightness: 250cd/m2
Contrast Ratio: 1000:1
View Angle: 85°
Touch Panel: Capacitive 5 point multi-touch screen, G+FF full lamination |
| Wireless |
WiFi: IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz
Bluetooth: Bluetooth 5.0
NFC: Yes
Zigbee: Optional |
| Camera & Audio |
Front Camera: 5.0MP (optional)
Rear Camera: Not available
Speaker: Box speakers 8Ω/1.0W*2
Microphone: Built-in*1 |
| I/O Ports |
USB: 1*USB-C (data & OTG), 5V 3A
RS485: 1*RJ12, 12~24V 1.5A
RJ45: 1*100M, PoE (12.5W)
Buttons: power, volume controls |
| Power Supply |
Battery: Not available
TYPE-C: 5V3A
POE: 12.5W 48~53V
RJ12: 12~24V 1.5A |
| Sensors |
Accelerometer (G-sensor): Standard
Gyroscope: Optional
Light sensor: Optional
Proximity sensor: Optional
Temperature-humidity sensor: Optional |
| Mechanical |
Dimensions: 243 x 152 x 10mm
Weight: To be determined
Mount: Wall mount supported
Housing materials: Metal |
| Environmental |
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C |
| Accessories |
Included: Manual, warranty card |
| Certifications |
Optional: CE, FCC, RoHS, KC, and others |
Packaging & Shipping
Our Services
OEM Services
- Logo printing on back case (plastic/metal), touch panel (with MOQ 3000PCS), and accessories (giftbox, user manual, warranty card, charger, leather case)
- Free artwork customization support
- Free software customization including startscreen, wallpaper, system information, and pre-installed apps
ODM Services
We offer comprehensive ODM solutions for customers with specific requirements not met by existing market devices. Our services include:
- ID/MD/PCB/Accessories/Package design
- Software customization, debugging, and SDK or source code provision
ODM Application Fields
Our ODM services cover more than 10 different application fields including:
- Smart home IoT projects with Zigbee, Z-wave, LoRaWAN, MQTT, HTTP, POE, and wall mount functions
- Smart kitchen appliances such as coffee makers, toasters, and tea/milk vending machines
- Smart healthcare products for hospitals, patients, and seniors
- OBD, navigation, and car headrest display devices for vehicles
- Smart payment terminal devices
- Education projects and smart gym solutions
After-sales Service
- 1-year warranty for all products (excluding accessories)
- Spare parts recommendations for local service handling
- Product assembly and repair videos, with technical staff training when necessary
- Lifetime technical assistance
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service. Our smart panels feature a variety of functions such as 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, AI acceleration etc... providing excellent HMI (human-machine interface) experience. These features are tailored for various industries, such as: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more...
Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, also including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedback
Frequently Asked Questions
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook?
A1: Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software(SW) development?
A2: Normally we do system and driver level development. Application-level development will be done by Client or 3rd party software developer assigned by clients.
Q3: Which OS can you support development?
A3: Yes, we can support tablet PC & smartphone custom OS based on Android OS, Windows OS, Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4: Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE, USB Type C, DC IN, HDMI interface on the smart device.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes, we have rich experience with quite a lot educational cases including 7-inch wifi version PND for European map dealers, Ecer.1-inch OBD without battery/back cover for American auto repair shops, 8-inch T618 4G octa core tablets with high temperature compatible batteries for Australian map dealers, and 10.1-inch Android headrest entertainment tablets with explosion-proof touch screens for cabs.
Q7: Can you support customization of accessories for smart devices?
A7: Yes, we can support custom smart covers, docking charging stations, charging docks, magnetic back clips, wall mounts, and stylus pens for smart devices.
Q8: Can you provide prototype samples?
A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be able to come back to you with the best proposed solution asap.
Q9: What's the normal ODM product development time?
A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap.
Q10: How is the ODM device development cost calculated?
A10: Development charge is in 2 parts: a. Tooling design; b. PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12: How to deal with the intellectual property?
A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech.
Q13: What's your after-sales service for ODM smart device? Can you support two years or more warranty?
A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
