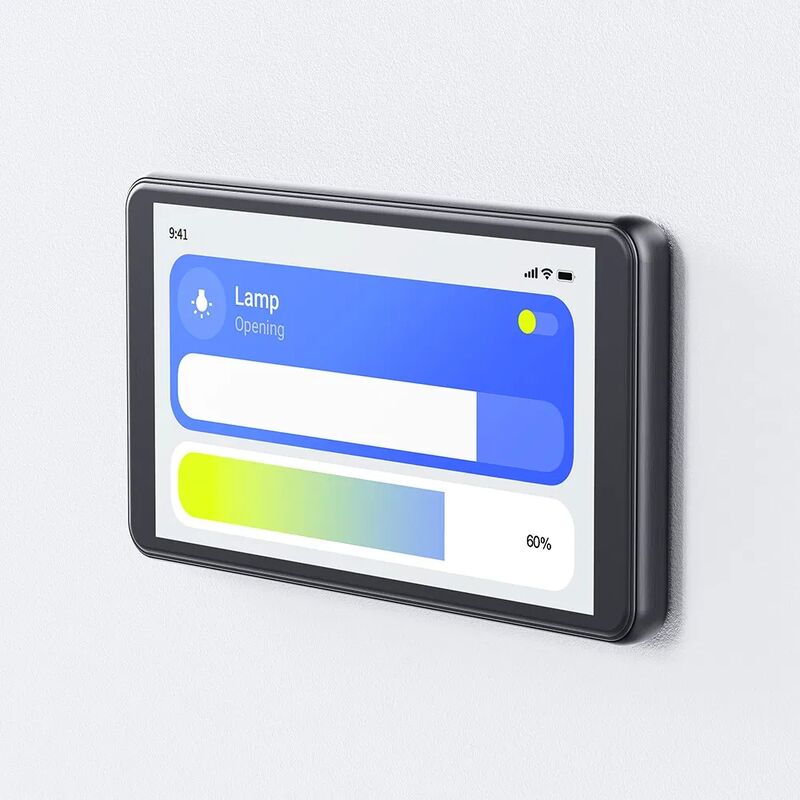

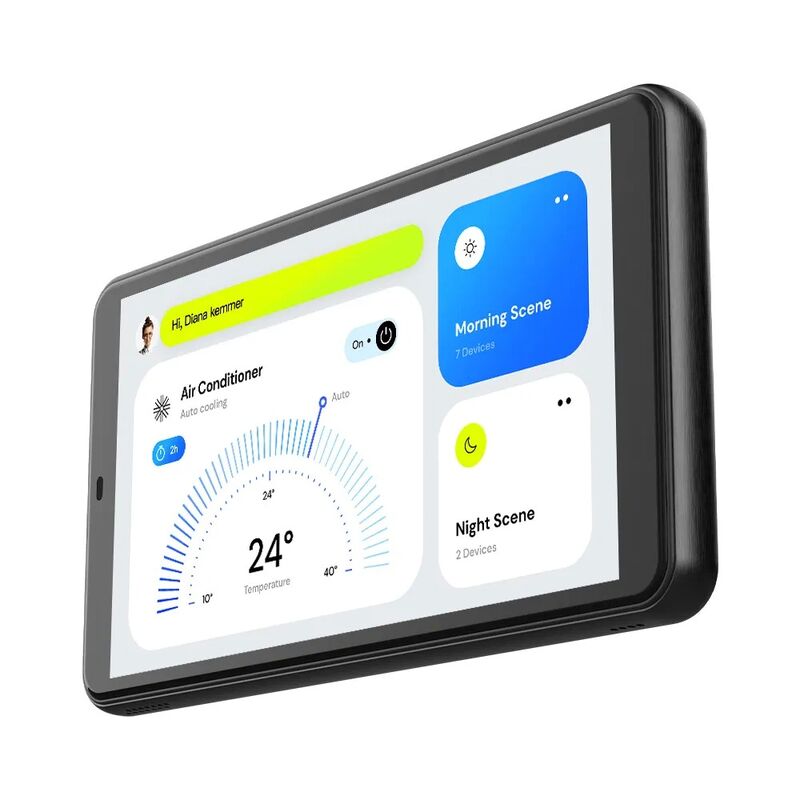

5.5 Inch POE Android Touch Screen Wall Mounted Tablet PC
Product Overview

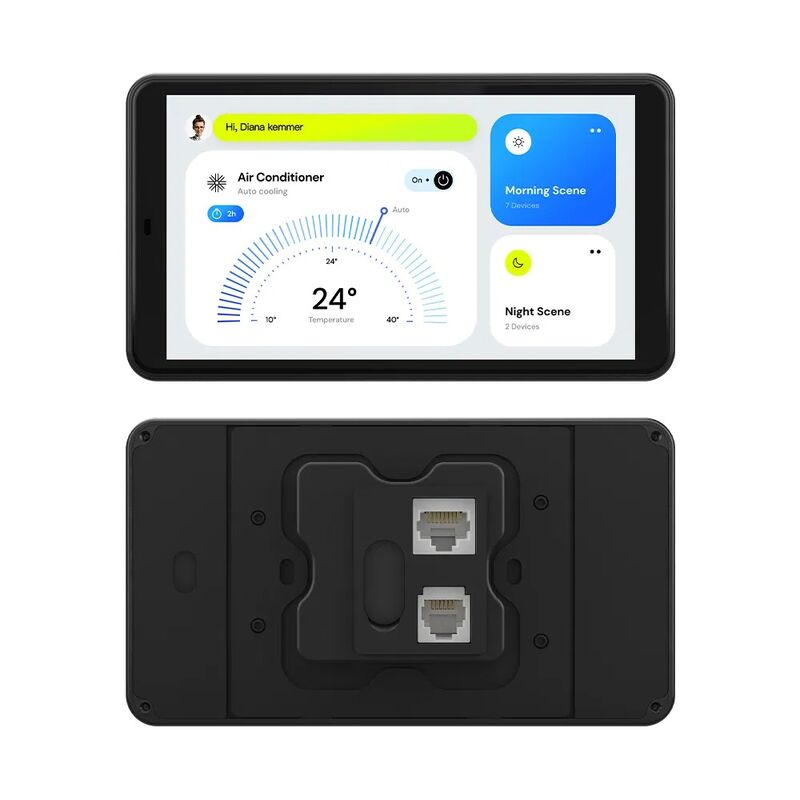

Newly developed 5.5 inch wall mounted POE Android touch screen tablet PC, featuring RJ45 (POE), RJ12 (RS485), and USB Type-C ports.
Key Features
- Support three charging methods: 5V USB Type-C with OTG data transfer, 48V RJ45 (POE) with ethernet connection, and 12V RJ12 with RS485 communications

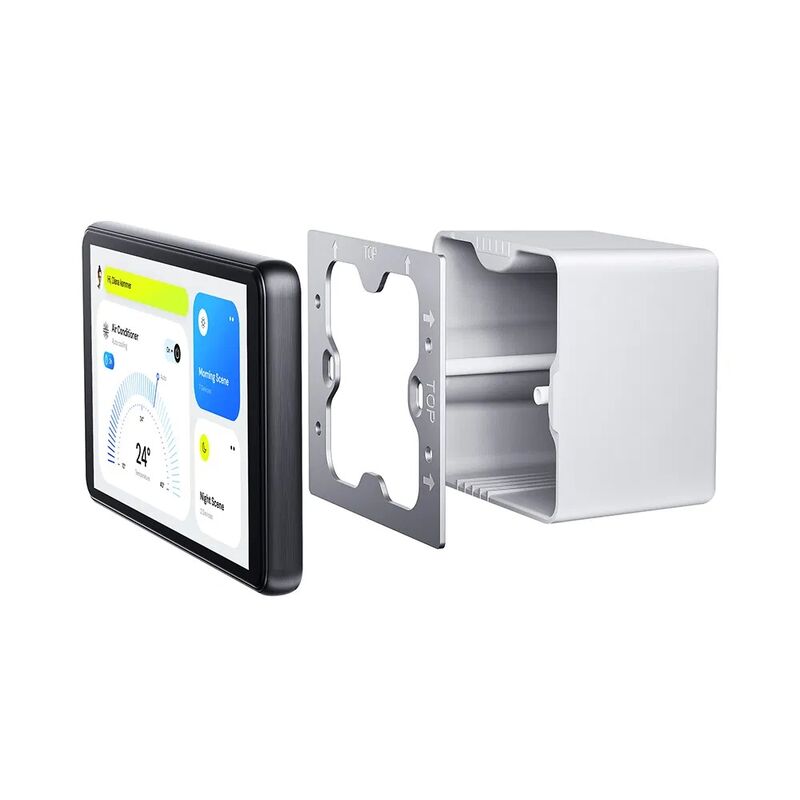

- Wall mounted solution with recessed outlet box
- 450mm proximity sensor automatically turns screen on when user approaches
- High-quality microphone with echo cancellation for IP calls
- Aluminum alloy molded injection casing with fireproof plastic case and metal middle frame, featuring water repellency design
- Low current consumption and efficient heat dissipation for continuous 24/7 operation
- Adjustable backlight dimming level via app control
- Automatic app launch after power up
| Processor |
Operating System |
Display |
| MTK8768, octa core Cortex-A53 x2.0GHz, 12nm |
Android 14 with software debugging support |
5.5 inch TFT LCD IPS, 1080*1920 FHD resolution |
| Memory |
Speaker |
Wireless |
| 4GB LPDDR4 + 64GB eMMC |
Box speakers 8Ω/1.0W*1 |
IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz, Bluetooth 5.0, NFC Optional |
| Power Supply |
I/O Ports |
Mechanical |
| No Battery, Type-C (5V2A), POE (12.5W 48~53V), RJ12 (12~24V 1.5A) |
RJ45 (POE), RJ12 (RS485), USB (Type-C), Button (power, vol-) |
143.66 x 80.66 x 9.95mm, Metal housing, Wall mounted supported |

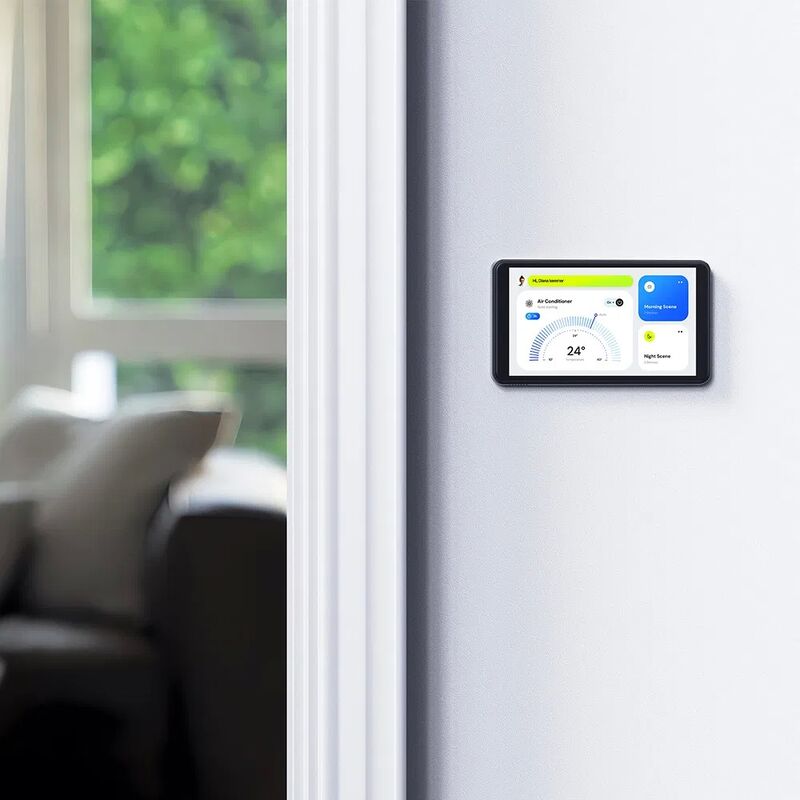

Smart Room Control Terminal Device
Enhance your smart room control systems with a customized wall mounted touch screen tablet android featuring RJ45 (POE), RJ12 (RS485), and USB (Type-C) ports. We provide high-performance hardware, enabling customers to independently develop and integrate software that meets their specific business needs.
Support OEM & ODM Services
From product concept, industrial design solution, mechanical design solution to finished product production.
| Tooling |
Hardware |
Software |
Accessories |
| ID Design; MD Design |
PCBA Schematic Design, PCB Layout, PCBA Debugging, Proofing and Debugging of Peripheral components |
Drivers Debugging, Customization Debug, Pre-installed applications |
Smart Cover, Docking Charging Station, Charging Bracket/Dock, Magnetic Back Clip, Wall Mount, Stylus Pen, and more |
Product Parameters
Chipset & Platform
CPU: MTK8768, 8 core, Cortex-A53, 2.0GHz, 12nm
GPU: IMG GE8320
NPU: /
RAM: 4GB LPDDR4
ROM: 64GB eMMC
OS: Android 14
Display
Screen: 5.5 inch TFT LCD IPS
Resolution: 1080*1920 FHD
Brightness: 400cd/m2
Contrast Ratio: 1000:1
View Angle: 80
Touch Panel: Capacitive 5 point multi-touch screen, G+FF full lamination
Wireless
WiFi: IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz
Bluetooth: Bluetooth 5.0
NFC: Optional
Camera & Speaker & Mic
Speaker: Box speakers 8Ω/1.0W*1
Mic: Built-in*1
I/O Ports
USB: 1*USB-C (data & OTG), 5V 2A
RS485: 1*RJ12, 12~24V 1.5A
RJ45: 1*100M, PoE (12.5W)
Buttons: power, vol-
Power Supply
Battery: /
TYPE-C: 5V2A
POE: 12.5W 48~53V
RJ12: 12~24V 1.5A
Functions
Accelerometer (G-sensor): Optional
Gyroscope: Optional
Light sensor: Optional
Proximity sensor: Optional
Mechanical
Dimensions: 143.66 x 80.66 x 9.95mm
Weight: TBD
Mount: Wall mount supported
Housing materials: Metal
Environment
Operating temperature: -10 to 60°C
Storage temperature: -20 to 70°C
Accessories
In the Box: Manual, warranty card
Certifications
Optional: CE, FCC, RoHS, KC...
Packaging & Shipping
Our Services
OEM Services
- Print Logo on Back Case (Plastic/Metal), Touch Panel (with MOQ 3000PCS) and Accessories (Giftbox/User manual/Warranty card/Charger/Leather case) etc
- Support free Artworks customization
- Support free Software customization (Including Startscreen/Wallpaper/System information/Pre-install Apps etc)
ODM Services
We offer ODM solutions for customers with specific needs that cannot be satisfied by existing devices in the market. We provide:
- ID/MD/PCB/Accessories/Package design
- Software customization/debugging/provide SDK or source code
Our ODM services cover more than 10 different application fields, including:
- Smart home IOT projects with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount functions
- Smart Kitchen Appliance such as coffee maker, toaster, tea milk vending machine
- Smart healthcare products for hospitals, patients & seniors
- OBD & Navigation & car headrest display Device for Vehicle
- Smart Payment Terminal Device
- Education projects and Smart gym solutions
After-sale Service
- 1-year warranty for all products (excluding accessories)
- Repair or replacement for terminals with quality issues (excluding human factors)
- Spare parts recommendations for local service handling
- Product assembling and repairing videos, technical staff training if necessary
- Lifetime technical assistance
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service.
Our smart panels feature a variety of functions such as 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, AI acceleration etc., providing excellent HMI (human-machine interface) experience. These features are tailored for various industries, including: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more.
Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, also including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedbacks
Frequently Asked Questions
Q1: Can you support to design the tablet pc/smartphone/laptop outlook?
A1: Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software (SW) development?
A2: Normally we do system and driver level development. Application-level development will be done by Client or 3rd party software developer assigned by clients.
Q3: Which OS can you support development?
A3: Yes, we can support tablet PC & smartphone custom OS based on Android OS, Windows OS, Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4: Yes, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE, USB Type C, DC IN, HDMI interface on the smart device.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes, we have rich experience with quite a lot educational cases including 7inch wifi version PND for European big map dealer, Ecer.1inch OBD without battery/back cover for American 4s auto repair shop, 8inch T618 4g octa core tablet with high temperature compatible battery for Australia map dealer, and 10.1inch android headrest entertainment tablet pc with explosion-proof touch screen for uber, etc.
Q7: Can you support customization of accessories for smart devices?
A7: Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device.
Q8: Can you provide prototype samples?
A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be able to come back to you with the best proposed solution asap.
Q9: What's the normal ODM product development time?
A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap.
Q10: How is the ODM device development cost calculated?
A10: Development charge is in 2 parts: Tooling design and PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12: How to deal with the intellectual property?
A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech.
Q13: What's your after-sales service for ODM smart device? Can you support two year's or more warranty?
A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
