5.5" Interactive Android Touch Screen Display with POE for Smart Home Automation
This Android POE Tablet PC is designed specifically for smart home automation solutions, featuring a compact 5.5" display and multiple connectivity options for seamless integration into modern smart environments.
Key Features & Specifications
- CPU: MTK8768 Octa-core 8*A53 2.0Ghz
- Display: 5.5" FHD 1920*1080 IPS
- Memory: 4GB+64GB
- Connectivity: 802.11 ac/a/b/g/n, BT 5.0, and LTE networks
- Functions: G-sensor, Proximity sensor 45cm
- Interface: USB-C*1 (Data+Charging), RJ12*1 (RS485+power 12-24V), RJ45*1 (48V POE)
- Battery: NA
- OS: Android 14
Advanced Functionality
- Three Charging Methods: 5V USB Type-C (with OTG data transfer), 48V RJ45 (POE + ethernet), 12V RJ12 (RS485 communications)

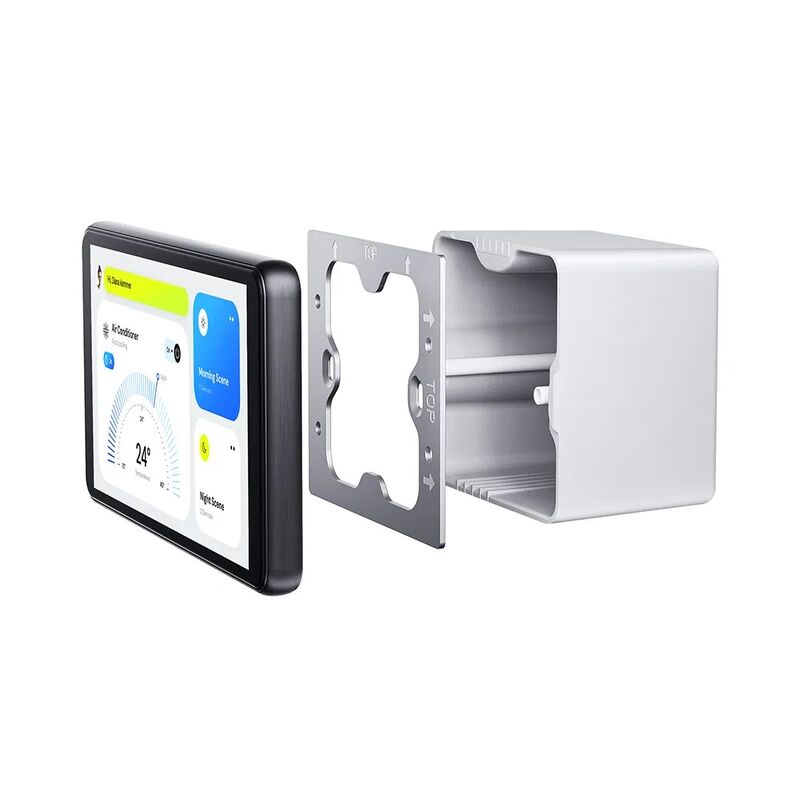

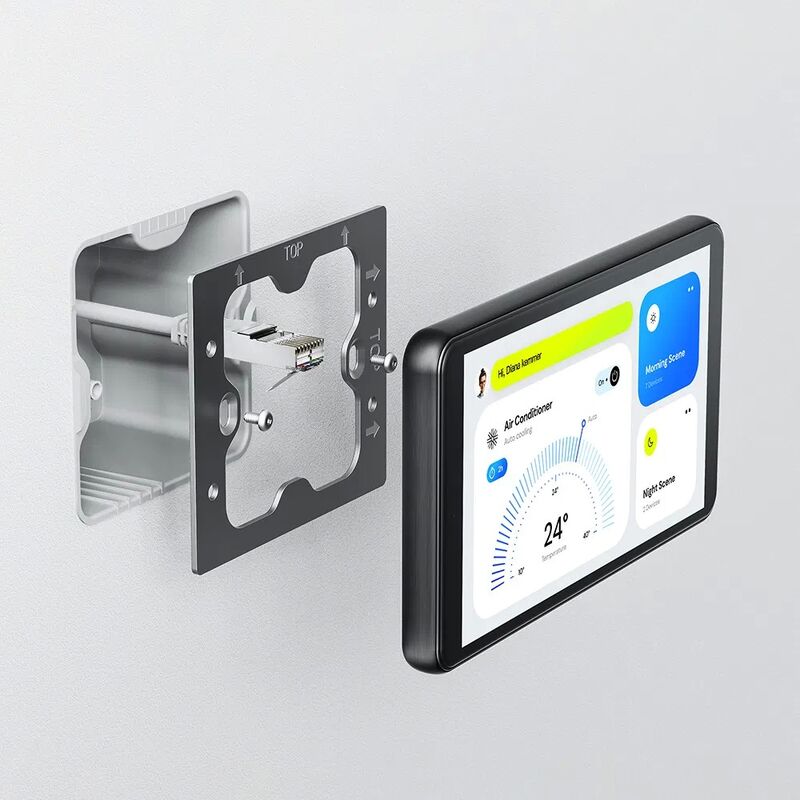

- Wall Mounted Solution with recessed outlet box
- 450mm proximity sensor automatically activates screen when user approaches
- High-quality microphone with echo cancellation for IP calls
- Aluminum alloy molded injection casing with fireproof plastic and water repellency design
- Low current consumption with efficient heat dissipation for 24/7 operation
- Adjustable back light dimming via app control
- Automatic app launch after power up
Optional Features
- Camera integration
- Temperature sensor
- Thread/zigbee/matter support
- NFC under the screen
- MDM/OTA Services
- OS Customization
- Logo Customization
| Processor |
MTK8768, octa core Cortex-A53 x2.0GHz, 12nm |
Operating System |
Android 14 with software debugging support |
| Display |
5.5 inch TFT LCD IPS, 1080*1920 FHD resolution |
Memory |
4GB LPDDR4 + 64GB eMMC |
| Speaker |
Box speakers 8Ω/1.0W*1 |
Wireless |
IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz, Bluetooth 5.0, NFC Optional |
| Power Supply |
No Battery, Type-C (5V2A), POE (12.5W 48~53V), RJ12(12~24V 1.5A) |
I/O Ports |

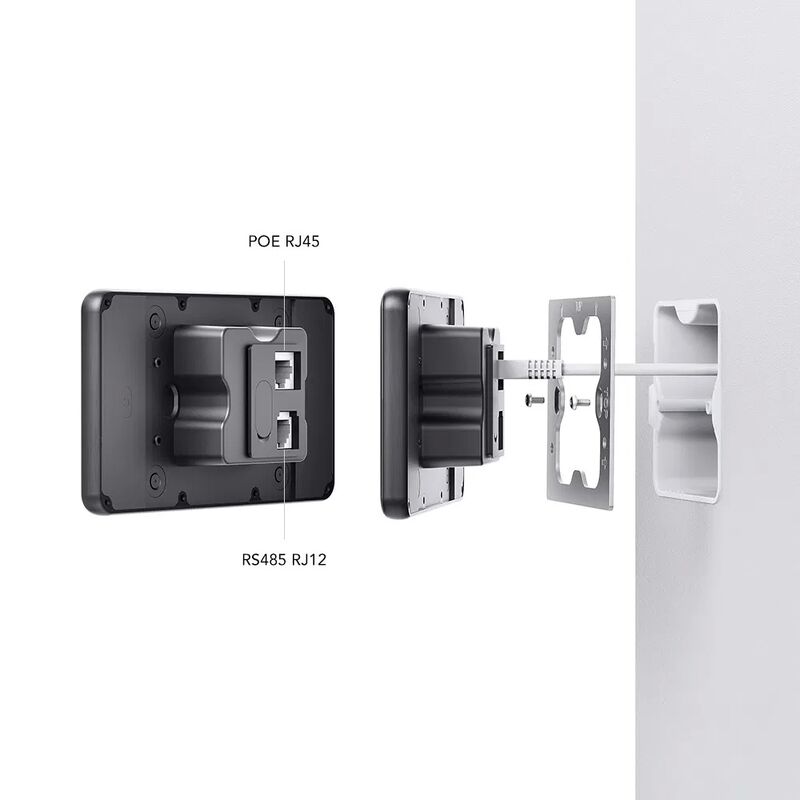

RJ45 (POE), RJ12 (RS485), USB (Type-C), Button (power, vol-) |
| Mechanical |
143.66 x 80.66 x 9.95mm, Metal housing, Wall mounted supported |
|
Smart Room Control Terminal Device
Enhance your smart room control systems with our customized wall-mounted Android touch screen tablet featuring RJ45 (POE), RJ12 (RS485), and USB (Type-C) ports. We provide high-performance hardware that enables customers to independently develop and integrate software tailored to specific business requirements.
OEM & ODM Services
We support complete product development from concept to finished production:
| Tooling |
ID Design; MD Design |
| Hardware |
PCBA Schematic Design, PCB Layout, PCBA Debugging, Proofing and Debugging of Peripheral components |
| Software |
Drivers Debugging, Customization Debug, Pre-installed applications |
| Accessories |
Smart Cover, Docking Charging Station, Charging Bracket/Dock, Magnetic Back Clip, Wall Mount, Stylus Pen, and more |
Detailed Product Parameters
| Chipset & Platform |
| CPU |
MTK8768, 8 core, Cortex-A53, 2.0GHz, 12nm |
| GPU |
IMG GE8320 |
| NPU |
/ |
| RAM |
4GB LPDDR4 |
| ROM |
64GB eMMC |
| OS |
Android 14 |
| Display |
| Screen |
5.5 inch TFT LCD IPS |
| Resolution |
1080*1920 FHD |
| Brightness |
400cd/m2 |
| Contrast Ratio |
1000:1 |
| View Angle |
80 |
| Touch Panel |
Capacitive 5 point multi-touch screen, G+FF full lamination |
| Wireless |
| WiFi |
IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz |
| Bluetooth |
Bluetooth 5.0 |
| NFC |
Optional |
| Camera & Audio |
| Speaker |
Box speakers 8Ω/1.0W*1 |
| Mic |
Built-in*1 |
| I/O Ports |
| USB |
1*USB-C (data&OTG), 5V 2A |
| RS485 |
1*RJ12, 12~24V 1.5A |
| RJ45 |
1*100M, PoE (12.5W) |
| Buttons |
power, vol- |
| Power Supply |
| Battery |
/ |
| TYPE-C |
5V2A |
| POE |
12.5W 48~53V |
| RJ12 |
12~24V 1.5A |
| Functions |
| Accelerometer (G-sensor) |
Optional |
| Gyroscope |
Optional |
| Light sensor |
Optional |
| Proximity sensor |
Optional |
| Mechanical |
| Dimensions |
143.66 x 80.66 x 9.95mm |
| Weight |
TBD |
| Mount |
Wall mount supported |
| Housing materials |
Metal |
| Environment |
| Operating temperature |
-10 to 60°C |
| Storage temperature |
-20 to 70°C |
| Accessories |
| In the Box |
Manual, warranty card |
| Certifications |
| Optional |
CE, FCC, RoHS, KC... |
Packaging & Shipping
Our Services
OEM Services
- Print Logo on Back Case (Plastic/Metal), Touch Panel (with MOQ 3000PCS) and Accessories (Giftbox/User manual/Warranty card/Charger/Leather case) etc
- Support free Artworks customization
- Support free Software customization (Including Startscreen/Wallpaper/System information/Pre-install Apps etc)
ODM Services
We offer comprehensive ODM solutions for customers with specific requirements not met by existing market devices:
- ID/MD/PCB/Accessories/Package design
- Software customization/debugging/provide SDK or source code
Our ODM services cover multiple application fields including:
- Smart home IOT projects with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount functions
- Smart Kitchen Appliances: coffee maker, toaster, tea milk vending machine
- Smart healthcare products for hospitals, patients & seniors
- OBD & Navigation & car headrest display devices for vehicles
- Smart Payment Terminal Devices
- Education projects and smart gym solutions
After-sale Service
- 1-year warranty for all products (excluding accessories)
- Repair or replacement for terminals with quality issues (excluding human factors)
- Spare parts recommendations for local service handling
- Product assembling and repairing videos provided
- Technical staff training available when necessary
- Lifetime technical assistance
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service.
Our smart panels feature advanced functions including 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, and AI acceleration, providing excellent HMI (human-machine interface) experience. These features are tailored for various industries such as: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more.
Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedback
Frequently Asked Questions
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook?
A1: Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software(SW) development?
A2: Normally we do system and driver level development. Application-level development will be done by Client or 3rd party software(SW) developer assigned by clients.
Q3: Which OS can you support development?
A3: Yes, we can support tablet PC & smartphone custom OS based on Android OS, Windows OS, Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4: Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE, USB Type C, DC IN, HDMI interface on the smart device.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes, we have rich experience with quite a lot educational cases including 7inch wifi version PND for European big map dealer, Ecer.1inch OBD without battery/back cover for American 4s auto repair shop, 8inch T618 4g octa core tablet with high temperature compatible battery for Australia map dealer, and 10.1inch android headrest entertainment tablet pc with explosion-proof touch screen.
Q7: Can you support customization of accessories for smart devices?
A7: Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device.
Q8: Can you provide prototype samples?
A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be able to come back to you with the best proposed solution asap.
Q9: What's the normal ODM product development time?
A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap.
Q10: How is the ODM device development cost calculated?
A10: Development charge is in 2 parts: a. Tooling design; b. PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12: How to deal with the intellectual property?
A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech.
Q13: What's your after-sales service for ODM smart device? Can you support two year's or more warranty?
A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
