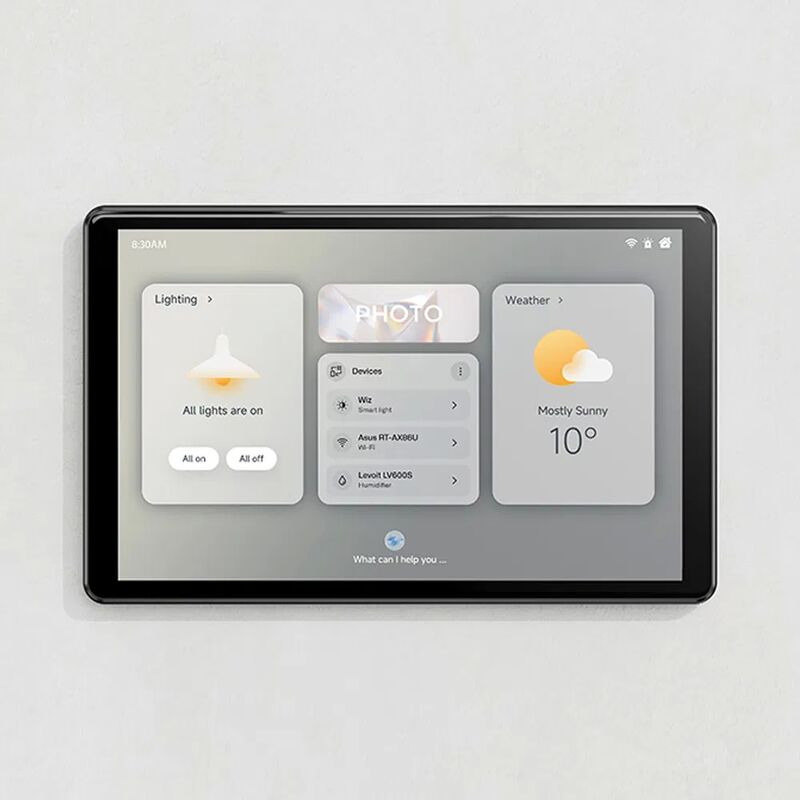

10.1 Inch Wall Mounted PoE RS485 Smart Home Android Tablet
Product Overview
OEM/ODM 10.1 inch PoE Wall-Mounted Android Tablet PC
Key Features
- Three Charging Methods: 5V USB Type-C with OTG data transfer, 48V RJ45 (PoE) with Ethernet connection, 12V RJ12 with RS485 communications

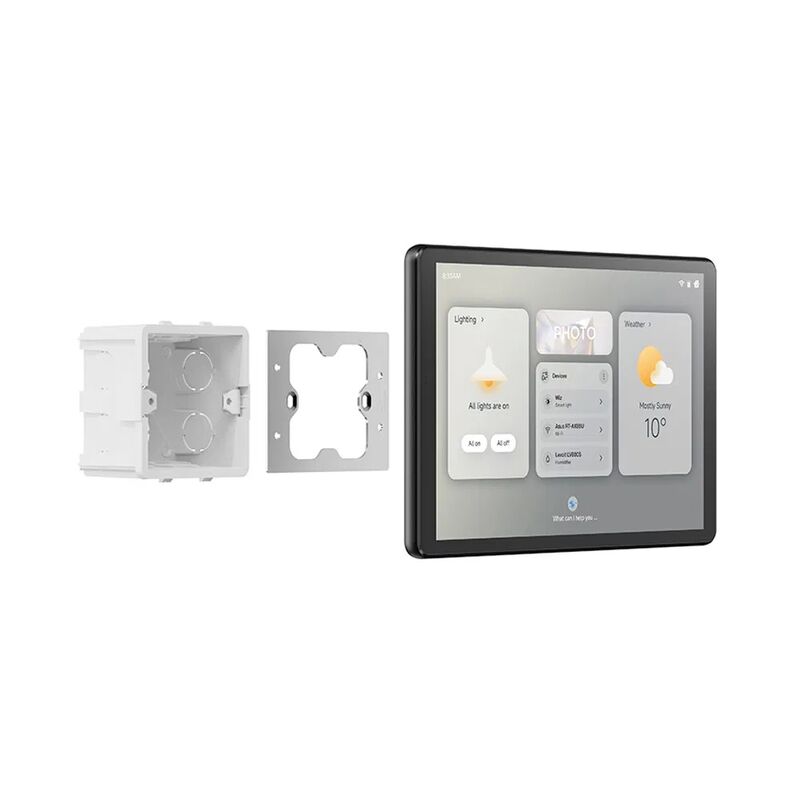

- Wall Mounted Solution: Designed for recessed outlet box installation
- Sensors: 500mm proximity distance sensor and temperature-humidity sensor
- Wireless Connectivity: Front NFC, optional Zigbee/Thread support
- Microphone: High-quality frequency response with echo cancellation for IP calls
- Case Construction: Aluminum alloy molded injection with shot blasting, fireproof plastic case with metal middle frame, water repellent design
- Power Efficiency: Low current consumption with advanced heat dissipation for continuous 24/7 operation
- Display Control: Backlight dimming adjustable via app from completely dark to full brightness
- Automatic Operation: App launches automatically after power up
| Processor |
MTK8768, octa core Cortex-A53 x2.0GHz, 12nm |
| Operating System |
Android 14 with software debugging support |
| Display |
10.1 inch TFT LCD IPS, 1200*1920 FHD resolution |
| Memory |
4GB LPDDR4 + 64GB eMMC |
| Speaker |
Box speakers 8Ω/1.0W*2 |
| Wireless |
IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz, Bluetooth 5.0, optional Zigbee/Thread/NFC |
| Power Supply |
No battery, Type-C (5V2A), PoE (12.5W 48~53V), RJ12 (12~24V 1.5A) |
| I/O Ports |
RJ45 (PoE), RJ12 (RS485), USB (Type-C), power and volume buttons |
| Mechanical |
243 x 152 x 10mm metal housing, wall mount supported |
Detailed Product Parameters
| Chipset & Platform |
| CPU |
MTK8768, 8 core, Cortex-A53, 2.0GHz, 12nm |
| GPU |
IMG GE8320 |
| NPU |
/ |
| RAM |
4GB LPDDR4 |
| ROM |
64GB eMMC |
| OS |
Android 14 |
| Display |
| Screen |
10.1 inch TFT LCD IPS |
| Resolution |
1200*1920 FHD |
| Brightness |
250cd/m2 |
| Contrast Ratio |
1000:1 |
| View Angle |
85 |
| Touch Panel |
Capacitive 5 point multi-touch screen, G+FF full lamination |
| Wireless |
| WiFi |
IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz |
| Bluetooth |
Bluetooth 5.0 |
| NFC |
Yes |
| Zigbee |
Optional |
| Camera, Speaker & Microphone |
| Front Camera |
5.0MP (optional) |
| Rear Camera |
/ |
| Speaker |
Box speakers 8Ω/1.0W*2 |
| Microphone |
Built-in*1 |
| I/O Ports |
| USB |
1*USB-C (data & OTG), 5V 3A |
| RS485 |
1*RJ12, 12~24V 1.5A |
| RJ45 |
1*100M, PoE (12.5W) |
| Buttons |
power, vol-, vol+ |
| Power Supply |
| Battery |
/ |
| TYPE-C |
5V3A |
| POE |
12.5W 48~53V |
| RJ12 |
12~24V 1.5A |
| Functions |
| Accelerometer (G-sensor) |
Accelerometer (G-sensor) |
| Gyroscope |
Optional |
| Light sensor |
Optional |
| Proximity sensor |
Optional |
| Humiture sensor |
Optional |
| Mechanical & Environmental |
| Dimensions |
243 x 152 x 10mm |
| Weight |
TBD |
| Mount |
Wall mount supported |
| Housing materials |
Metal |
| Operating temperature |
-10 to 60°C |
| Storage temperature |
-20 to 70°C |
| Accessories & Certifications |
| In the Box |
Manual, warranty card |
| Certifications |
Optional: CE, FCC, RoHS, KC... |
Packaging & Shipping
Our Services
OEM Services
- Print Logo on Back Case (Plastic/Metal), Touch Panel (with MOQ 3000PCS) and Accessories (Giftbox/User manual/Warranty card/Charger/Leather case)
- Support free Artworks customization
- Support free Software customization (Including Startscreen/Wallpaper/System information/Pre-install Apps)
ODM Services
We offer ODM solutions for customers with specific needs not satisfied by existing market devices. Our services include:
- ID/MD/PCB/Accessories/Package design
- Software customization/debugging/provide SDK or source code
Our ODM services cover more than 10 application fields:
- Smart home IoT projects with Zigbee, Z-Wave, LoRaWAN, MQTT, HTTP, PoE, wall mount functions
- Smart Kitchen Appliances: coffee maker, toaster, tea milk vending machine
- Smart healthcare products for hospitals, patients, and seniors
- OBD & Navigation & car headrest display devices for vehicles
- Smart Payment Terminal Devices
- Education projects and Smart gym solutions
After-sale Service
- 1-year warranty for all products (excludes accessories), quality issues receive repair or replacement
- Local service support with spare parts recommendations (PCBA/LCD/Touch panel/Battery)
- Product assembly and repair videos, technical staff training when necessary
- Technical assistance for product lifetime
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service.
Our smart panels feature various functions including 5G, LTE, Wi-Fi, PoE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, AI acceleration, providing excellent HMI (human-machine interface) experience. These features are tailored for industries including: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more.
Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedback
Frequently Asked Questions
Q1: Can you support to design the tablet pc/smartphone/laptop outlook?
A1: Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software (SW) development?
A2: Normally we do system and driver level development. Application-level development will be done by Client or 3rd party software developer assigned by clients.
Q3: Which OS can you support development?
A3: Yes, we can support tablet PC & smartphone custom OS based on Android OS, Windows OS, Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4: Yes, we can support tablet PC or smartphone without battery, without camera, shipment without device case, as well as adding PoE, USB Type C, DC IN, HDMI interface on smart devices.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes, we have rich experience with numerous educational cases including 7-inch WiFi PND for European map dealer, Ecer.1-inch OBD without battery for American auto repair shops, 8-inch T618 4G tablet with high-temperature compatible battery for Australia map dealer, and 10.1-inch Android headrest entertainment tablet for Uber.
Q7: Can you support customization of accessories for smart devices?
A7: Yes, we can support custom smart covers, docking charging stations, charging docks, magnetic back clips, wall mounts, stylus pens for smart devices.
Q8: Can you provide prototype samples?
A8: Yes, we can provide prototype samples before bulk order. We require detailed requirements to propose the best solution.
Q9: What's the normal ODM product development time?
A9: Normally 3-5 months, varying by project complexity. Contact us with detailed requirements for the best solution.
Q10: How is the ODM device development cost calculated?
A10: Development charge includes tooling design and PCBA development with hardware tuning. Cost depends on specific project requirements.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12: How to deal with the intellectual property?
A12: Joint development between clients and Pretech. Intellectual property ownership depends on agreement between parties.
Q13: What's your after-sales service for ODM smart device? Can you support two year's or more warranty?
A13: Normally 1-year warranty standard. We can support 2-year warranty or more upon customer request.
