Android PoE 10-Inch Smart Home Touch Panel Wall Tablet
Product Overview
Android PoE RJ45 RS485 no battery 10 inch android tablet PC smart home touch panel wall tablet
Key Features
- CPU: MTK8768 Octa-core 8*A53 2.0Ghz
- Display: 10" FHD 1200*1920 IPS
- Memory: 4GB+64GB
- Connectivity: 802.11 ac/a/b/g/n, BT 5.0, and LTE networks
- Functions: G-sensor, Proximity sensor 45cm
- Interface: USB-C*1 (Data+Charging), RJ12*1 (RS485+power 12-24V), RJ45*1 (48V POE)
- Battery: NA
- OS: Android 14
Advanced Features
- Three Charging Methods: 5V USB Type-C + OTG data transfer, 48V RJ45 (POE) + ethernet, 12V RJ12 + RS485 communications

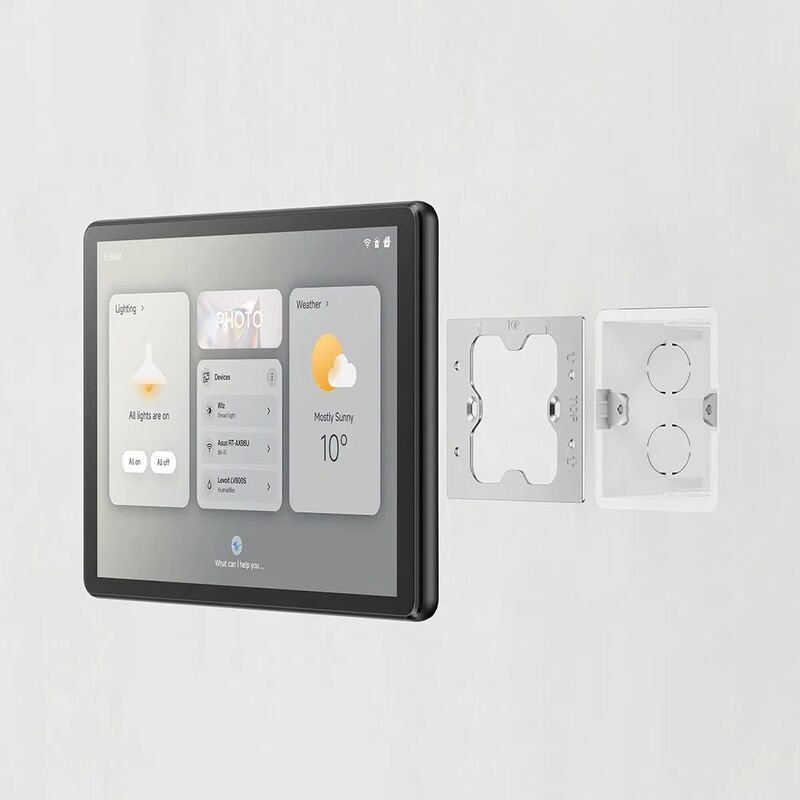

- Wall Mounted Solution: Recessed outlet box compatible
- Sensors: 500mm proximity distance sensor & temperature-humidity sensor
- Wireless: Front NFC, Zigbee/Thread optional
- Microphone: High sensitivity with echo cancellation for IP calls
- Case: Aluminum alloy molded injection, shot blasting, fireproof plastic with metal frame, water repellent design
- Low Power Consumption: Operate and charge continuously (24/7) without regular reset
- Backlight Control: Adjustable brightness via app from dark to full brightness
- Auto Launch: App automatically starts after power up
Optional Add-ons
- Camera
- Temperature sensor
- Thread/zigbee/matter
- NFC under the screen
- MDM/OTA Services
- OS Customization
- Logo Customization
Technical Specifications
| Processor |
MTK8768, octa core Cortex-A53 x2.0GHz, 12nm |
| Operating System |
Android 14 with software debugging support |
| Display |
10.1 inch TFT LCD IPS, 1200*1920 FHD Resolution |
| Memory |
4GB LPDDR4 + 64GB eMMC |
| Speaker |
Box speakers 8Ω/1.0W*2 |
| Wireless |
IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz, Bluetooth 5.0, Zigbee/Thread/NFC Optional |
| Power Supply |
No Battery, Type-C (5V2A), POE (12.5W 48~53V), RJ12 (12~24V 1.5A) |
| I/O Ports |
RJ45 (POE), RJ12 (RS485), USB (Type-C), Buttons (power, vol-) |
| Mechanical |
243 x 152 x 10mm, Metal housing, Wall mount supported |
Detailed Product Parameters
| Chipset & Platform |
CPU: MTK8768, 8 core, Cortex-A53, 2.0GHz, 12nm
GPU: IMG GE8320
RAM: 4GB LPDDR4
ROM: 64GB eMMC
OS: Android 14 |
| Display |
Screen: 10.1 inch TFT LCD IPS
Resolution: 1200*1920 FHD
Brightness: 250cd/m2
Contrast Ratio: 1000:1
View Angle: 85°
Touch Panel: Capacitive 5 point multi-touch, G+FF full lamination |
| Wireless |
WiFi: IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz
Bluetooth: 5.0
NFC: Optional
Zigbee: Optional |
| Camera & Audio |
Front: 5.0MP (optional)
Rear: /
Speaker: Box speakers 8Ω/1.0W*2
Mic: Built-in*1 |
| I/O Ports |
USB: 1*USB-C (data & OTG), 5V 3A
RS485: 1*RJ12, 12~24V 1.5A
RJ45: 1*100M, PoE (12.5W)
Buttons: power, vol-, vol+ |
| Power Supply |
Battery: /
TYPE-C: 5V3A
POE: 12.5W 48~53V
RJ12: 12~24V 1.5A |
| Functions |
Accelerometer (G-sensor)
Gyroscope: Optional
Light sensor: Optional
Proximity sensor: Optional
Humiture sensor: Optional |
| Mechanical |
Dimensions: 243 x 152 x 10mm
Weight: TBD
Mount: Wall mount supported
Housing materials: Metal |
| Environment |
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C |
| Accessories |
Manual, warranty card |
| Certifications |
Optional: CE, FCC, RoHS, KC... |
Packaging & Shipping
Usage Scenarios
Smart Home Meeting Room Hotel Restaurant Smart Kitchens Smart Air Conditioning Digital Signage Check-in Kiosks Fitness Centers POS Solutions
At Pretech, we pride ourselves on our ability to offer one-stop solutions with a deep focus on hardware and OS research and development. With a factory over 12,000 square meters, a workforce of 420+ professionals, and 8 production lines.
Our Services
OEM Services
- Print Logo on Back Case (Plastic/Metal), Touch Panel (with MOQ 3000PCS) and Accessories (Giftbox/User manual/Warranty card/Charger/Leather case)
- Support free Artworks customization
- Support free Software customization (Including Startscreen/Wallpaper/System information/Pre-install Apps etc)
ODM Services
We offer ODM solutions for customers with specific needs that cannot be satisfied by existing market devices. We provide:
- ID/MD/PCB/Accessories/Package design
- Software customization/debugging/provide SDK or source code
Our ODM services cover more than 10 different application fields:
- Smart home IOT projects with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount functions
- Smart Kitchen Appliance: coffee maker, toaster, tea milk vending machine
- Smart healthcare products for hospitals, patients & seniors
- OBD & Navigation & car headrest display Device for Vehicle
- Smart Payment Terminal Device
- Education projects & Smart gym solutions
After-sale Service
- 1-year warranty for all products (exclude accessories), quality issues get repaired or replacement
- Spare parts recommendations for local service handling
- Product assembly and repair videos, technical staff training if necessary
- Technical assistance for product lifetime
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service. Our smart panels feature a variety of functions such as 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, AI acceleration etc... providing excellent HMI (human-machine interface) experience. These features are tailored for various industries, such as: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more...
Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, also including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedback
Frequently Asked Questions
Q1: Can you support to design the tablet pc/smartphone/laptop outlook?
A1: Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software (SW) development?
A2: Normally we do system and driver level development. Application-level development will be done by Client or 3rd party software developer assigned by clients.
Q3: Which OS can you support development?
A3: Yes, we can support tablet PC & smartphone custom OS based on Android OS, Windows OS, Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4: Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE, USB Type C, DC IN, HDMI interface on the smart device.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes, we have rich experience with quite a lot educational cases including 7inch wifi version PND for European map dealer, Ecer.1inch OBD without battery for American auto repair shop, 8inch T618 4g octa core tablet for Australia map dealer, and 10.1inch android headrest entertainment tablet pc with explosion-proof touch screen.
Q7: Can you support customization of accessories for smart devices?
A7: Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device.
Q8: Can you provide prototype samples?
A8: Yes, in principle we can provide prototype samples before bulk order. We need detailed requirements to propose the best solution.
Q9: What's the normal ODM product development time?
A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Contact us with detailed requirements for the best solution.
Q10: How is the ODM device development cost calculated?
A10: Development charge is in 2 parts: Tooling design and PCBA development with hardware tuning. Cost depends on the specific project. Contact us for the most cost effective solution.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12: How to deal with the intellectual property?
A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech.
Q13: What's your after-sales service for ODM smart device? Can you support two year's or more warranty?
A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more upon customer request. Contact us for the most suitable solution.
