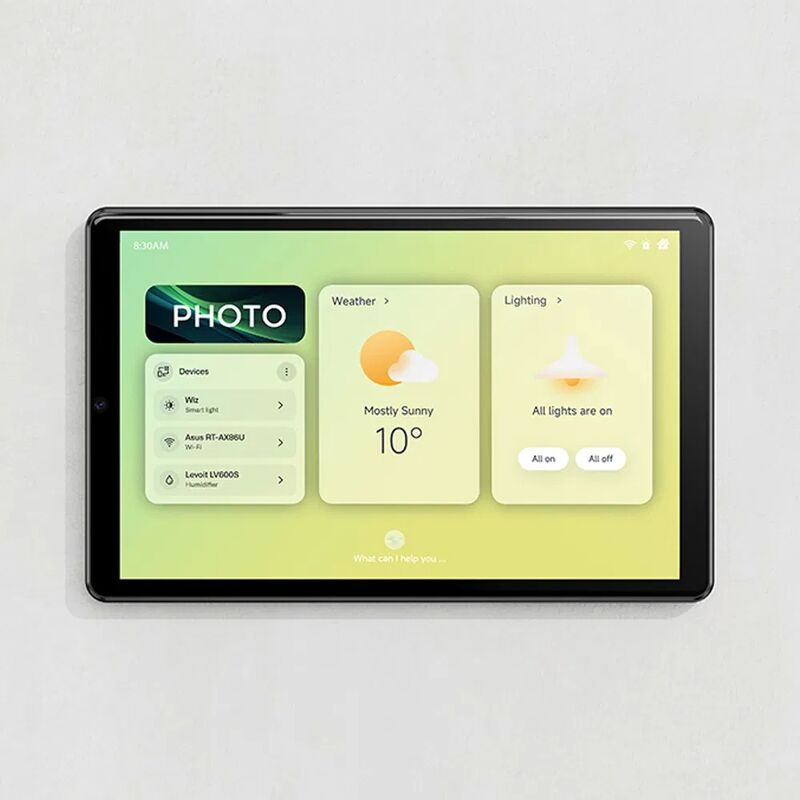

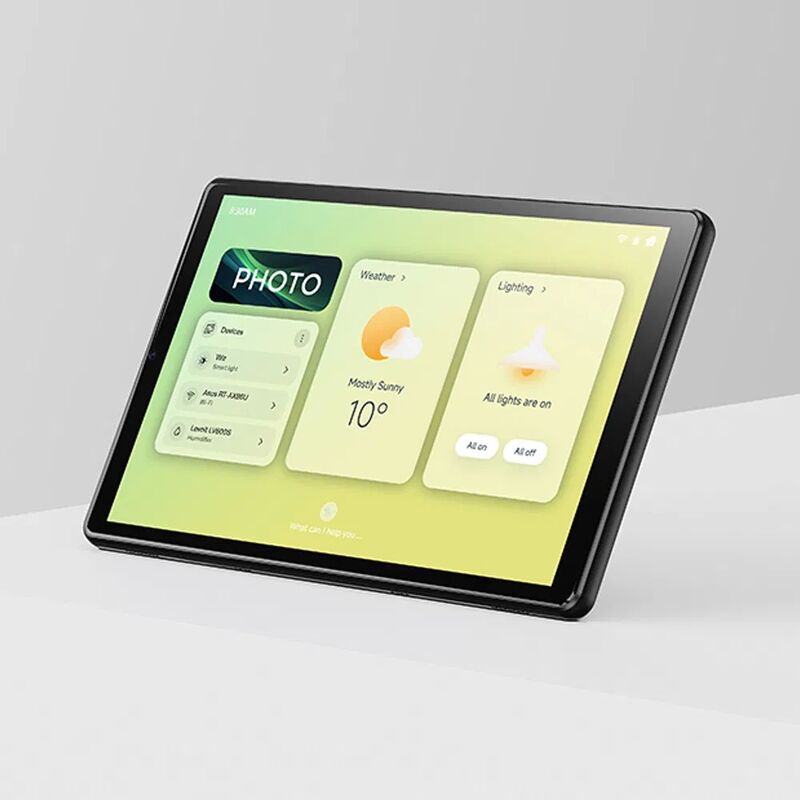

10.1 Inch POE Android Smart Control Panel
Professional 10.1 inch Android-based wall-mounted touch screen tablet designed for home automation, meeting rooms, and industrial control applications.
Product Overview
Key Features
- Triple Power Options: 5V USB Type-C with OTG, 48V RJ45 POE, and 12V RJ12 with RS485 communications

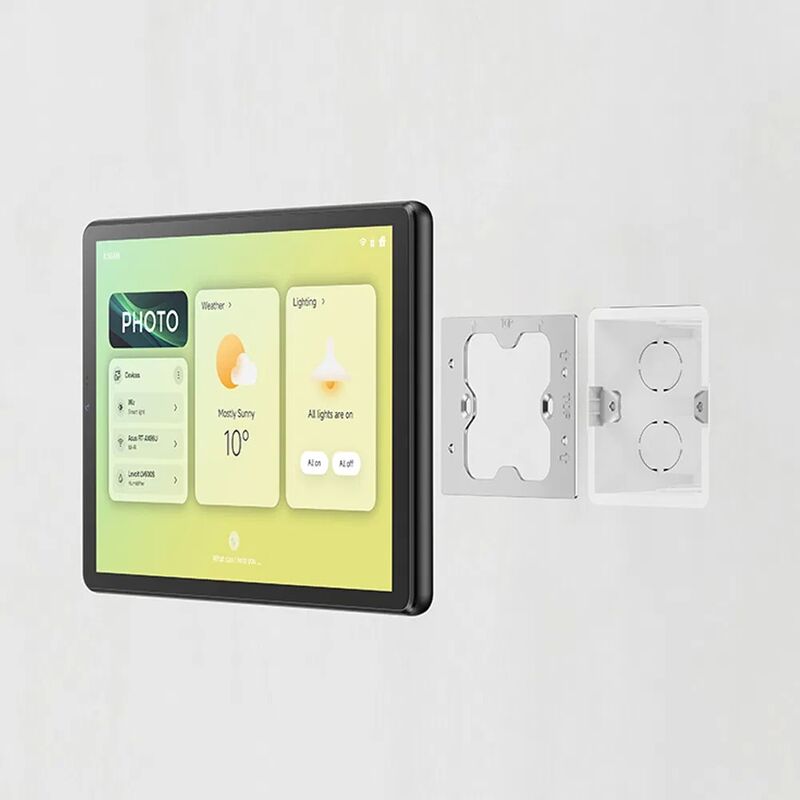

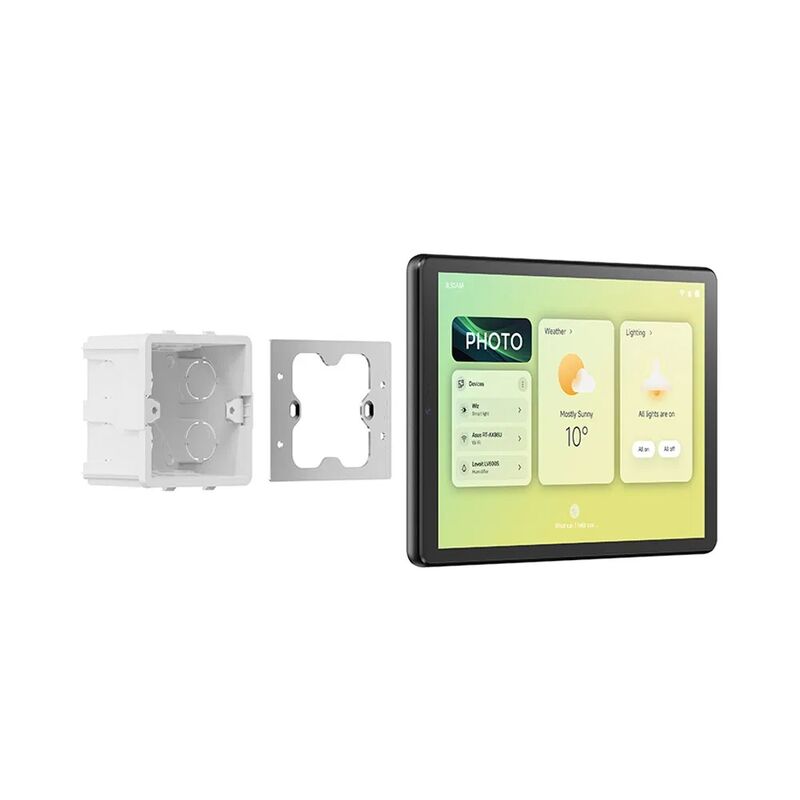

- Professional Wall Mount: Recessed outlet box installation
- Advanced Sensors: 500mm proximity sensor and temperature-humidity sensor
- Wireless Connectivity: Front NFC, optional Zigbee/Thread support
- High-Quality Audio: Professional microphone with echo cancellation for IP calls
- Durable Construction: Aluminum alloy injection molding with fireproof plastic case and metal frame
- Energy Efficient: Low current consumption with optimized heat dissipation for 24/7 operation
- Adjustable Display: Backlight dimming controlled via application
- Auto-Launch: Application automatically starts after power-up
| Processor |
MTK8768, Octa Core Cortex-A53 2.0GHz, 12nm |
Operating System |
Android 14 with software debugging support |
Display |
10.1" TFT LCD IPS, 1200×1920 FHD |
| Memory |
4GB LPDDR4 + 64GB eMMC |
Speaker |
Box speakers 8Ω/1.0W×2 |
Wireless |
WiFi 802.11ac/a/b/g/n, Bluetooth 5.0, Optional Zigbee/Thread/NFC |
| Power Supply |
No Battery, Type-C (5V2A), POE (12.5W), RJ12 (12-24V) |
I/O Ports |
RJ45 (POE), RJ12 (RS485), USB Type-C, Power/Volume buttons |
Mechanical |
243×152×10mm, Metal housing, Wall mount supported |
Detailed Specifications
| Chipset & Platform |
|---|
| CPU | MTK8768, 8 Core, Cortex-A53, 2.0GHz, 12nm |
| GPU | IMG GE8320 |
| NPU | / |
| RAM | 4GB LPDDR4 |
| ROM | 64GB eMMC |
| OS | Android 14 |
| Display |
|---|
| Screen | 10.1 inch TFT LCD IPS |
| Resolution | 1200×1920 FHD |
| Brightness | 250cd/m² |
| Contrast Ratio | 1000:1 |
| View Angle | 85° |
| Touch Panel | Capacitive 5-point multi-touch, G+FF full lamination |
| Wireless Connectivity |
|---|
| WiFi | IEEE 802.11ac/a/b/g/n 2.4GHz & 5GHz |
| Bluetooth | Bluetooth 5.0 |
| NFC | Yes |
| Zigbee | Optional |
| Audio & Camera |
|---|
| Front Camera | 5.0MP (optional) |
| Rear Camera | / |
| Speaker | Box speakers 8Ω/1.0W×2 |
| Microphone | Built-in ×1 |
| I/O Ports |
|---|
| USB | 1× USB-C (data & OTG), 5V 3A |
| RS485 | 1× RJ12, 12-24V 1.5A |
| RJ45 | 1× 100M, PoE (12.5W) |
| Buttons | Power, Volume -, Volume + |
| Power Supply |
|---|
| Battery | / |
| TYPE-C | 5V 3A |
| POE | 12.5W 48-53V |
| RJ12 | 12-24V 1.5A |
| Sensors & Functions |
|---|
| Accelerometer | G-sensor |
| Gyroscope | Optional |
| Light Sensor | Optional |
| Proximity Sensor | Optional |
| Humiture Sensor | Optional |
| Mechanical Specifications |
|---|
| Dimensions | 243 × 152 × 10mm |
| Weight | TBD |
| Mount | Wall mount supported |
| Housing Materials | Metal |
| Environmental Specifications |
|---|
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Accessories & Certifications |
|---|
| Included Accessories | Manual, warranty card |
| Certifications | Optional: CE, FCC, RoHS, KC |
Product Images
Packaging & Shipping
Our Services
OEM Services
- Logo printing on back case, touch panel (MOQ 3000PCS), and accessories
- Free artwork customization support
- Free software customization including startup screen, wallpaper, system information, and pre-installed apps
ODM Services
Complete custom solutions for specialized requirements including:
- Industrial design, mechanical design, PCB, accessories, and packaging design
- Software customization, debugging, SDK, and source code provision
Application Fields
- Smart Home IoT projects with Zigbee, Z-Wave, LoRaWAN, MQTT, HTTP, POE
- Smart Kitchen Appliances: coffee makers, toasters, vending machines
- Smart Healthcare solutions for hospitals, patients, and seniors
- Vehicle OBD, navigation, and headrest display systems
- Smart Payment Terminal Devices
- Education projects and smart gym solutions
After-Sales Service
- 1-year warranty for all products (excluding accessories)
- Spare parts recommendations for local service handling
- Product assembly and repair videos, technical staff training
- Lifetime technical assistance
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service.
Our smart panels feature comprehensive connectivity including 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, and various sensor technologies, providing excellent human-machine interface experiences tailored for multiple industries.
Industry Applications: Home Automation; Intercom and Security Systems; In-vehicle Infotainment; Smart Sports; Healthcare; Home Appliances; Advertising Kiosks; Payment Systems; Education, and more.
Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedback
Frequently Asked Questions
Q1: Can you support design of the tablet PC outlook?
A1: Yes, we can custom ID and MD design with your reference and usage scenario description.
Q2: Do you support product software development?
A2: We handle system and driver level development. Application-level development is typically done by the client or third-party developers.
Q3: Which operating systems can you support?
A3: We support custom OS development based on Android, Windows, Linux, and Ubuntu operating systems.
Q4: Can you support battery removal from tablet PC?
A4: Yes, we can support tablet PCs without batteries, without cameras, and can add POE, USB Type-C, DC IN, and HDMI interfaces.
Q5: Can you support SDK service?
A5: Yes, we provide comprehensive SDK (software development kit) services for customers.
Q6: Do you have experience with educational projects?
A6: Yes, we have extensive experience with educational projects including WiFi PNDs, Windows OBD devices, high-temperature compatible tablets, and headrest entertainment systems.
Q7: Can you support customization of accessories?
A7: Yes, we support custom smart covers, docking stations, charging docks, magnetic clips, wall mounts, and stylus pens.
Q8: Can you provide prototype samples?
A8: Yes, we provide prototype samples before bulk orders upon receiving detailed requirements.
Q9: What is the normal ODM product development time?
A9: Typically 3-5 months, depending on project complexity. Contact us with requirements for specific timelines.
Q10: How is ODM device development cost calculated?
A10: Development costs include tooling design and PCBA development/hardware tuning. Contact us for project-specific pricing.
Q11: Can we sign NDA?
A11: Yes, we can sign non-disclosure agreements.
Q12: How to deal with intellectual property?
A12: Intellectual property ownership is determined by agreement between clients and Pretech during joint development.
Q13: What is your after-sales service and warranty?
A13: We provide 1-year standard warranty with options for 2-year or extended warranties upon request.
