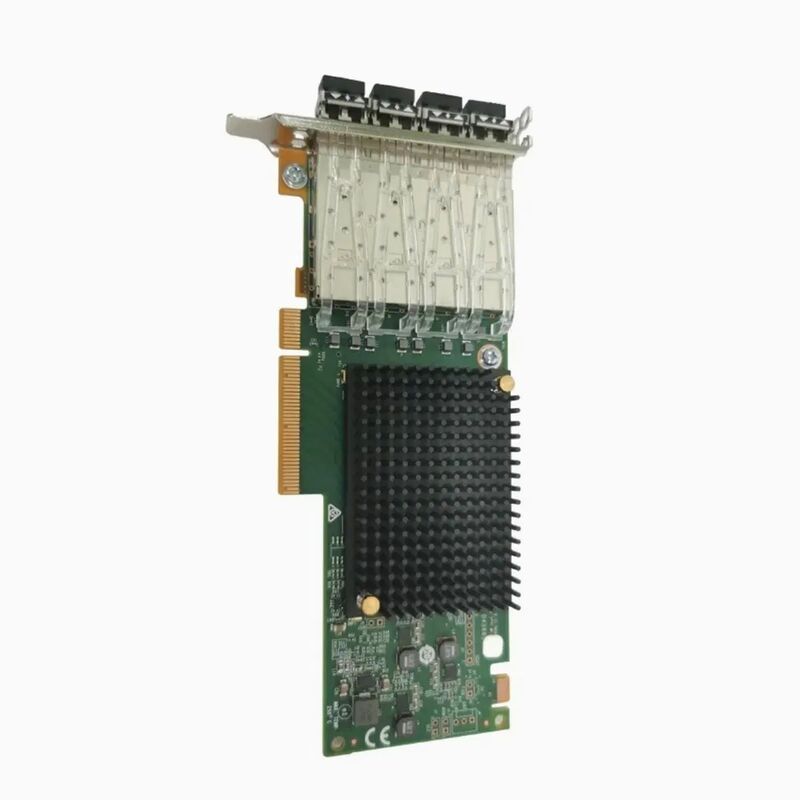

Emulex LPe32004 Quad-Port 32GB/s Gen6 Fibre Channel HBA
Product Specifications
| Product Status |
In Stock |
| Model Number |
LPe32004 |
| Place of Origin |
China |
| Lifecycle |
Active |
| Distributor Inventory |
Yes |
| Ordering Part Number |
LPe32004 Four-Port 32GFC Short Wave Fiber–LC SFP+ |
Optical Data Rates
Automatically detects 32GFC (28.05 GBaud NRZ), 16GFC (14.025 GBaud NRZ) and 8GFC (8.5 GBaud NRZ)
Port Configuration
4 ports with short wave lasers and LC type connectors
Host Bus Interface
PCIe Gen3 x8 adapter
Environmental Specifications
Operating Temperature: 0°C to 55°C
Operating Humidity: 5% to 95% non-condensing
Storage Temperature: -20°C to 85°C
Operating System Support
Oracle Solaris, SUSE Linux Enterprise Server, VMware vSphere. Additional support provided by OEM and partners.
Industry Standards Compliance
Current ANSI/IETF standards: FC-PI-4, FC-DA, FC-DA-2, FC-GS-6, FC-LS-2, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FCP.
Package Contents
Each Host Bus Adapter ships in space-efficient packaging including:
• Quantity 1: Thin Host Bus Adapter
• Quantity 1: Standard bracket (installed)
• Quantity 1: Thin bracket
Drivers, installation manual and firmware updates are downloadable from manufacturer website.
Physical Dimensions
167.64mm x 68.91mm (6.60" x 2.71") with standard bracket
Cable Support
• 100m at 16Gb on 50/125 μm OM3 MMF
• 125m at 16Gb on 50/125 μm OM4 MMF
• 15m at 16Gb on 62.5/125 μm OM1 MMF
• 35m at 16Gb on 50/125 μm OM2 MMF
Hardware Environment
PowerPC, SPARC, Intel x86, x64 architectures
I/O Controller
XE501
Regulatory Certifications
Australia (RCM), Japan (VCCI A), China (China RoHS compliant), Europe (CE mark, EU RoHS, TUV Bauart), South Korea (MSIP A), Taiwan (BSMI A).
Related Product: LPe32002-M2
Sixth Generation 32GFC Fibre Channel HBA Adapter provides high-performance storage connectivity with automatic rate detection of 32GFC/16GFC/8GFC. Supports transmission up to 100 meters on OM4 fiber. Compatible with Oracle Solaris, SUSE Linux, VMware and x86/SPARC/PowerPC platforms. Features low latency through PCIe Gen3 x8 interface and global certifications including CE and RoHS.
