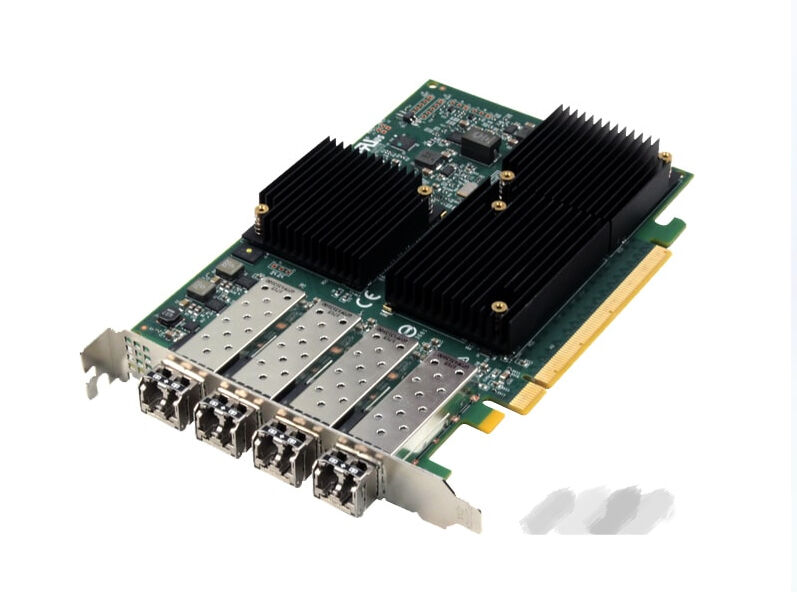

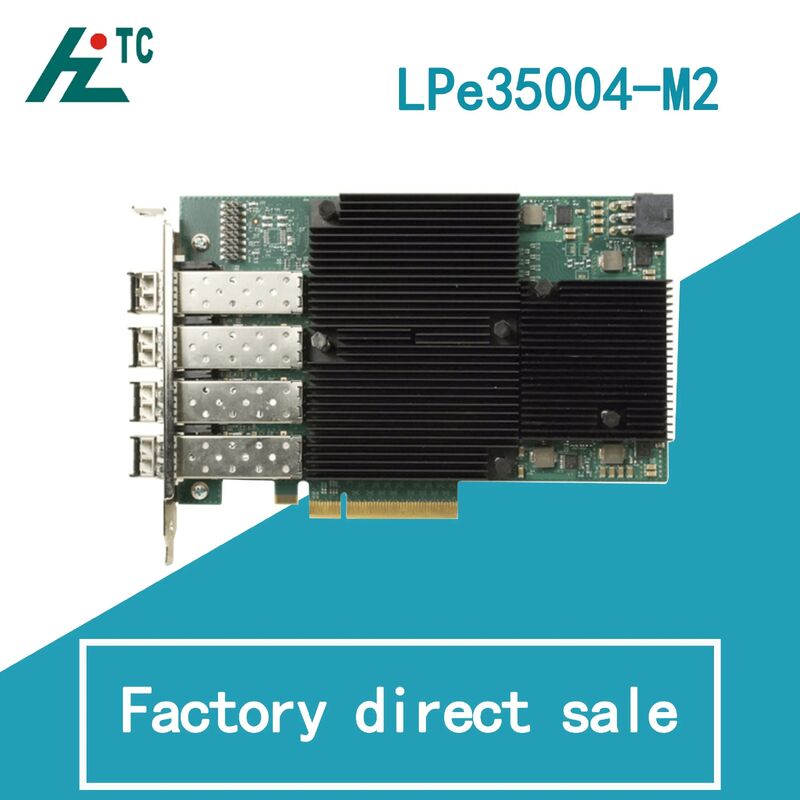

Professional Supply Broadcom Emulex LPe35004 Quad-Port 32GB/s Gen6 Fibre Channel Host Bus Adapter
Product Specifications
| Lifecycle |
Active |
| Distributor Inventory |
Yes |
| Ordering Part Number |
LPe35004-M2 |
| Ordering Optional Accessories |
LP32-LW-OPT-1 32GFC Optic (longwave laser with LC connector SFP+ transceiver): 1 pack
LP32-LW-OPT-2 32GFC Optics (longwave laser with LC connector SFP+ transceiver): 2 pack |
| What's in the Box |
- Quantity 1, full-height Host Bus Adapter with optic/s
- Quantity 1, standard bracket
- Quantity 1, Firmware download sheet and RoHS sheet
|
| Generation |
Gen 7 (64/32GFC) |
| Physical Dimensions |
111.15mm x 167.64mm (4.376" x 6.600"), Standard bracket |
| Cable Support |
0.5m to 100m at 64GFC/32GFC on 50/125 µm OM4 MMF
0.5m to 100m at 64GFC/32GFC on 50/125 µm OM5 MMF
0.5m to 70m at 64GFC/32GFC on 50/125 µm OM3 MMF
10 km at 32GFC/16GFC on 9/125 µm singlemode fiber when Emulex approved longwave transceivers are used
|
| Optical Data Rates |
28.05 Gb/s (3200Mb/s), 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s) (auto-detected) |
| Hardware Environment |
Intel x64, Intel x86, and PowerPC |
| Ports |
4 |
| Optics |
Optics Short wave lasers with LC type connector optics |
| Host Bus Type |
PCIe Gen3 x16 |
| I/O Controller |
XE601 |
| Operating Humidity |
5% to 95% non-condensing |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-20° to 85°C (-4° to 185°F) |
| OS Support |
Additional support is available from OEMs and partners, Microsoft Windows, Oracle Linux, Oracle Linux with the Unbreakable Enterprise Kernel (UEK), Oracle Solaris, Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, VMware vSphere
|
| Industry Standards |
Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2/3/4/5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-NVMe/AM1, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PI-7, FC-TAPE, FCP-2/3, FCP-4
Legacy ANSI/IETF standards: FC-PH, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4
|
| Regulatory Certifications |
Australia (RCM), Japan (VCCI Class A), China (China RoHS Compliant), EU (Low Voltage Directive), EU RoHS compliant, Europe CE Mark, FCC Class A, Korea (KCC Class A), North America, Taiwan (BSMI Class A), UL/CSA Recognized
|
| Popular Resources |
AVG_Document_C:1211216169459, AVG_Document_C:1211226826158 |
Emulex Gen 7 LPe35004 Key Features
7th Generation 64/32GFC Fiber Optic Adapter
4-port LC design, supporting PCIe Gen3 x16, compatible with Windows/Linux/VMware and mainstream hardware platforms, and passed 12 global certifications (CE/FCC/UL, etc.).
Flexible Optical Fiber Connection
OM3/OM4/OM5 multimode optical fiber 0.5-100m, long-wave transceiver supports 10km single-mode optical fiber transmission, including out-of-the-box accessories (optional long-wave laser package).
Enterprise-Level Reliable Design
Working temperature 0-55°C, compact size (111.15×167.64mm), in line with the latest standards such as FC-PI-7, and quick delivery by dealers.
Company Introduction
Beijing HengzhengTc Sci-Tech Co. Ltd. is a national high-tech company featuring R&D, designing, production, marketing and service, providing professional solutions for high-speed Internet access products and smart telecommunications products.
Product Portfolio
Our products include PCIe and OCP server network adapters, optical modules, DAC/AOC/ACC/AEC and MTP/MPT optical fiber patch cords, and can be produced on demand. Our 1G/10G/25G/40G/50G/100G/200G/400G/800G Ethernet product series and EDR, HDR, NDR and XDR InfiniBand product series can be used in equipment of all mainstream brands, and can be applied in cloud services, high-caliber computing, enterprises, telecommunications, storage, AI and data centers.
Quality Assurance
Beijing HengzhengTc Sci-Tech Co. Ltd. provides a 36-month warranty for all its products. We also provide parts of world-famous brand AI servers, including GPU, DPU, RAID controller, network adapter, SSD, among others.
Industry Expertise
Guided by our clients' demands, we also provide solutions for Brocade FC SAN, Nvidia InfiniBand and high-speed Ethernet. With 16 years of experience in the industry and five years of export history, we value the client-centered principle and sincerely serve every domestic and international client.
Frequently Asked Questions
Why choose us?
- Our team has over 10 years of experience in AI server accessories and high-speed network solutions (FC SAN/InfiniBand/Ethernet)
- We maintain a stable supply chain with long-term partnerships with top manufacturers
- We provide one-stop services including product selection, solution design and 24/7 after-sales support
- Benefiting from bulk purchasing, we offer highly cost-effective 100% original products at competitive prices
Is the product brand new?
All products are 100% original and new. Official warranty is provided for authorized brands, and self-developed products pass strict quality inspection. Official verification is supported.
How long after payment will the goods be dispatched?
- In-stock orders: Ship within 1–3 working days after payment confirmation; urgent orders are prioritized
- Out-of-stock/custom orders: Lead time depends on inventory or production, confirmed by customer service
- Delivery may be delayed during holidays. Please check with us before ordering
Is customization acceptable? What is the MOQ?
- Customization available for self-developed network cards, optical modules and high-speed cables
- MOQ: 50 pieces for basic customization; ≥200 pieces for complex specifications
- Authorized products only support original standard models, no customization
- Contact customer service for details
Which payment methods and currencies are accepted?
We accept bank transfers (online or counter) to our corporate account. Order number must be noted for payment verification. Both RMB and USD are supported.
