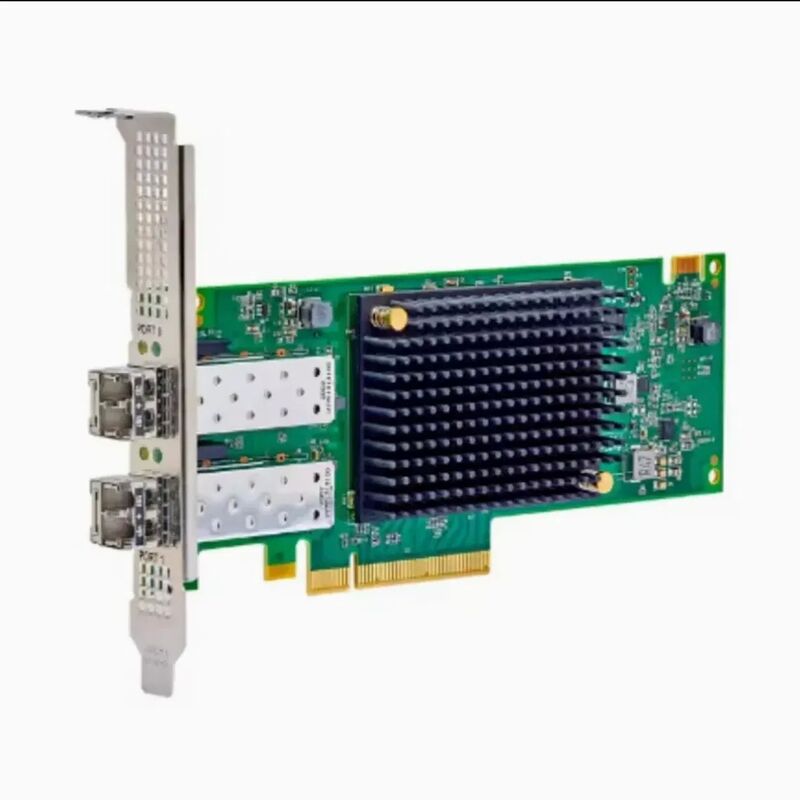

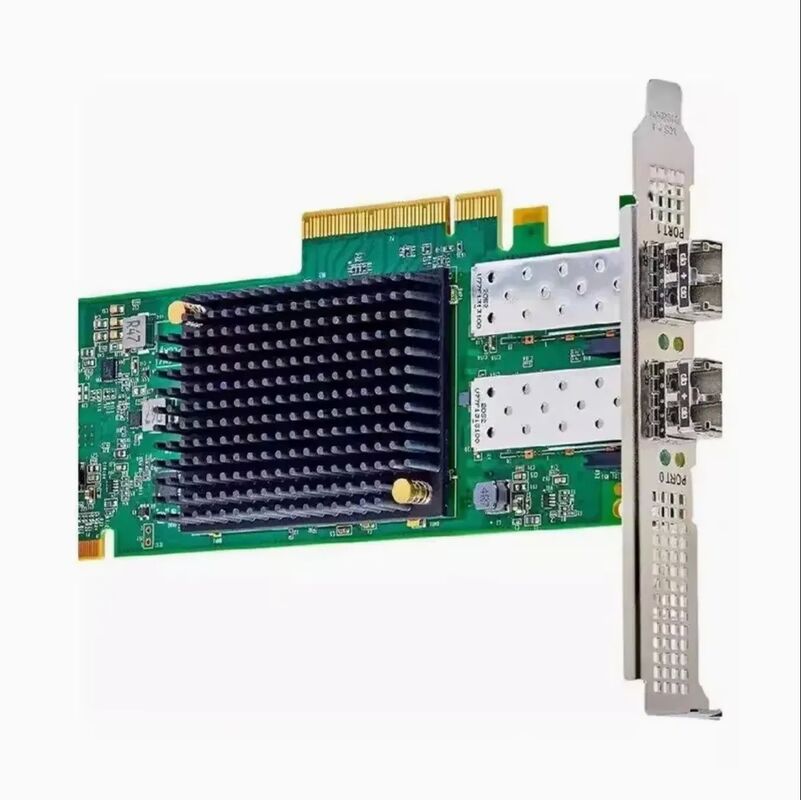

Broadcom Emulex LPe36002-M64 Dual-Port 64GB/s Gen7 Fibre Channel HBA Adapter
Product Specifications
| Lifecycle |
Active |
| Distributor Inventory |
Yes |
| ECD Cable Support |
0.5m to 100m at 64GFC/32GFC on 50/125 µm OM4 MMF, 0.5m to 100m at 64GFC/32GFC on 50/125 µm OM5 MMF, 0.5m to 70m at 64GFC/32GFC on 50/125 µm OM3 MMF, 10 km at 32GFC/16GFC on 9/125 µm singlemode fiber when Emulex approved longwave transceivers are used |
| OS Support |
Additional support is available from OEMs and partners, Microsoft Windows, Oracle Linux, Oracle Linux with the Unbreakable Enterprise Kernel (UEK), Oracle Solaris, Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, VMware vSphere, openEuler |
| Generation |
Gen 7 (64/32GFC) |
| Hardware Environment |
AMD, Intel x64; AMD, Intel x86; ARMv8 64-bit; PowerPC |
| Host Bus Type |
PCIe Gen4 x8 |
| Industry Standards |
FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2/3/4/5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-LS-5 INCITS 569-202x rev 5.0, FC-MI, FC-NVMe, FC-NVMe/AM1, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PI-7, FC-TAPE, FCP-2/3, FCP-4, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4 |
| I/O Controller |
XE601 |
| Operating Humidity |
5% to 95% non-condensing |
| Operating Temperature |
0°C to 55°C |
| Optical Data Rates |
64GFC (28.9 GBaud PAM4), 32GFC (28.05 GBaud NRZ), 16GFC (14.025 GBaud NRZ), automatically detected |
| Optics |
Optics Short wave lasers with LC type connector optics |
| Ordering Optional Accessories |
LP64-SW-OPT-1 64GFC Optic (short wave laser with LC connector SFP+ transceiver): 1 pack, LP64-SW-OPT-2 64GFC Optics (short wave laser with LC connector SFP+ transceiver): 2 pack |
| Ordering Part # |
LPe36002-M64 |
| Physical Dimensions |
Short, low profile PCIe card, 167.64mm x 68.91mm (6.60" x 2.71"), Standard bracket (low profile bracket ships in box) |
| Ports |
2 |
| Regulatory Certifications |
Australia (RCM Class A), BSMI RoHS Compliant, China RoHS Compliant, EU (Low Voltage Directive), Europe CE Mark, Europe EU RoHS compliant, Japan(VCCI Class A), Korea (KCC Class A), North America (FCC/ICES Class A, UL/CSA Recognized), Taiwan BSMI Class A, UKCA Mark |
| Storage Temperature |
-20° to 85°C (-4° to 185°F) |
| What's in the box |

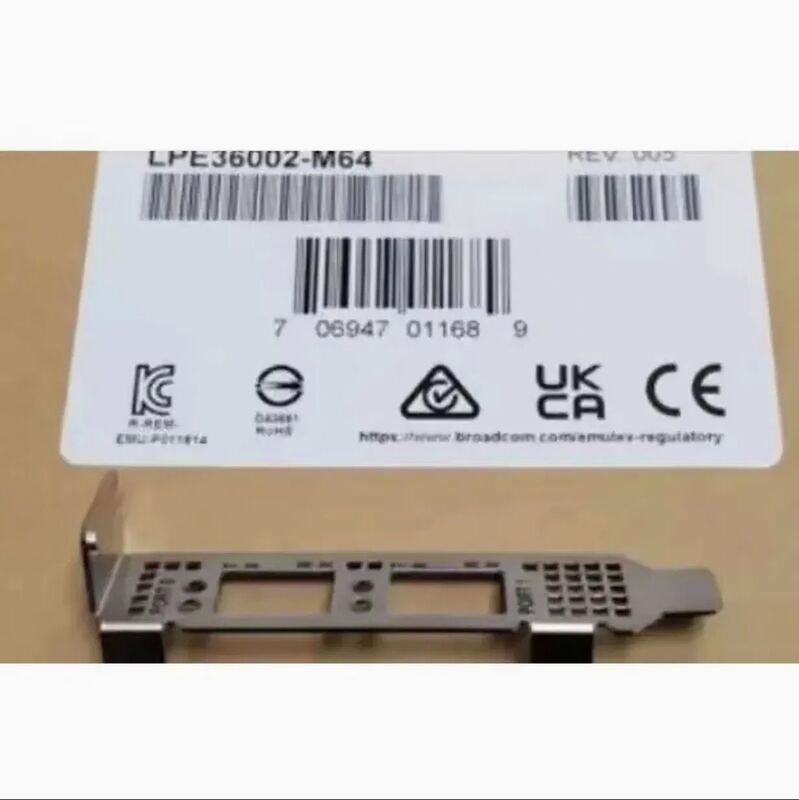

Each box includes: Quantity 1, low-profile Host Bus Adapter with optic/s; Quantity 1, standard bracket (installed); Quantity 1, low-profile bracket |
Product Overview
LPe36002-M64 Series 7th Generation high-performance Fibre Channel HBA supporting automatic 64GFC/32GFC rate detection, featuring PCIe Gen4x8 interface and dual-port design. Compatible with multimode (OM3/OM4/OM5) and single-mode fiber (up to 10km), ideal for enterprise storage, data centers, and cloud environments. Widely compatible with mainstream operating systems and hardware platforms.
Company Introduction
Beijing HengzhengTc Sci-Tech Co. Ltd. is a national high-tech company specializing in R&D, design, production, marketing, and service. We provide professional solutions for high-speed Internet access products and smart telecommunications products.
Our Product Portfolio
- PCIe and OCP server network adapters
- Optical modules
- DAC/AOC/ACC/AEC and MTP/MPT optical fiber patch cords
- Custom production available on demand
- 1G/10G/25G/40G/50G/100G/200G/400G/800G Ethernet product series
- EDR, HDR, NDR and XDR InfiniBand product series
Our products are compatible with equipment from all mainstream brands and can be applied in cloud services, high-performance computing, enterprises, telecommunications, storage, AI, and data centers. We provide a 36-month warranty for all products.
Additional Services
We also provide components from world-famous brand AI servers, including GPU, DPU, RAID controller, network adapter, SSD, and others. Guided by client demands, we provide solutions for Brocade FC SAN, Nvidia InfiniBand, and high-speed Ethernet.
With 16 years of industry experience and five years of export history, we value the client-centered principle and sincerely serve every domestic and international client.
Frequently Asked Questions
Why choose us?
- Over 10 years of experience in AI server accessories and high-speed network solutions (FC SAN/InfiniBand/Ethernet)
- Deep industry expertise to deliver optimized solutions for various scenarios
- Stable supply chain with long-term partnerships with top manufacturers
- Sufficient stock and reliable lead times
- One-stop services including product selection, solution design and 24/7 after-sales support
- Highly cost-effective 100% original products at competitive prices through bulk purchasing
Is the product brand new?
All products are 100% original and new. Official warranty is provided for authorized brands, and self-developed products pass strict quality inspection. Official verification is supported.
How long after payment will the goods be dispatched?
In-stock orders: Ship within 1–3 working days after payment confirmation; urgent orders are prioritized.
Out-of-stock/custom orders: Lead time depends on inventory or production, confirmed by customer service.
Delivery may be delayed during holidays. Please check with us before ordering.
Is customization acceptable? What is the MOQ?
Customization available for self-developed network cards, optical modules and high-speed cables.
MOQ: 50 pieces for basic customization; ≥200 pieces for complex specifications.
Authorized products only support original standard models, no customization.
Contact customer service for details.
Which payment methods and currencies are accepted?
We accept bank transfers (online or counter) to our corporate account. Order number must be noted for payment verification. Both RMB and USD are supported.
