Home > Products > Optical Modules >
Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification

Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification

2km Length Per Roll Fiber Optical Cable

1000N Tensile Strength Outdoor Optic Cable

RoHS ISO9001 Certified GYXTW Cable

Place of Origin:

China

Brand Name:

Ecer

Certification:

CE, RoHS, ISO9001

Model Number:

WIG-LACE-001

Contact Us
Request A Quote
Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification
Product Details
Fiber Count:
2 Core To 24 Core
Fiber Type:
Single Mode Or Multimode
Cable Color:
Black Or Customized
Length Per Roll:
2km
Attenuation @850nm:
≤3.0 DB/km
Attenuation @1300nm:
≤1.0 DB/km
Attenuation @1310nm:
≤0.36 DB/km
Attenuation @1550nm:
≤0.22 DB/km
Bandwidth @850nm:
≥500 MHz·km
Bandwidth @1300nm:
≥1000 MHz·km
Numerical Aperture:
0.200±0.015NA
Cable Diameter:
10.0 Mm To 15.0 Mm
Cable Weight:
105 Kg/km To 216 Kg/km
Tensile Strength:
600/1500 N To 1000/3000 N
Bending Radius:
10D/20D Mm
Highlight:

2km Length Per Roll Fiber Optical Cable

,

1000N Tensile Strength Outdoor Optic Cable

,

RoHS ISO9001 Certified GYXTW Cable

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Packaging Details
1pc/Polybag, 10pcs/CTN
Delivery Time
10-15 Working Days
Payment Terms
T/T, PayPal, Western Union
Supply Ability
5000pcs/Month
Related Products
Contact Us
Contact Now
Product Description

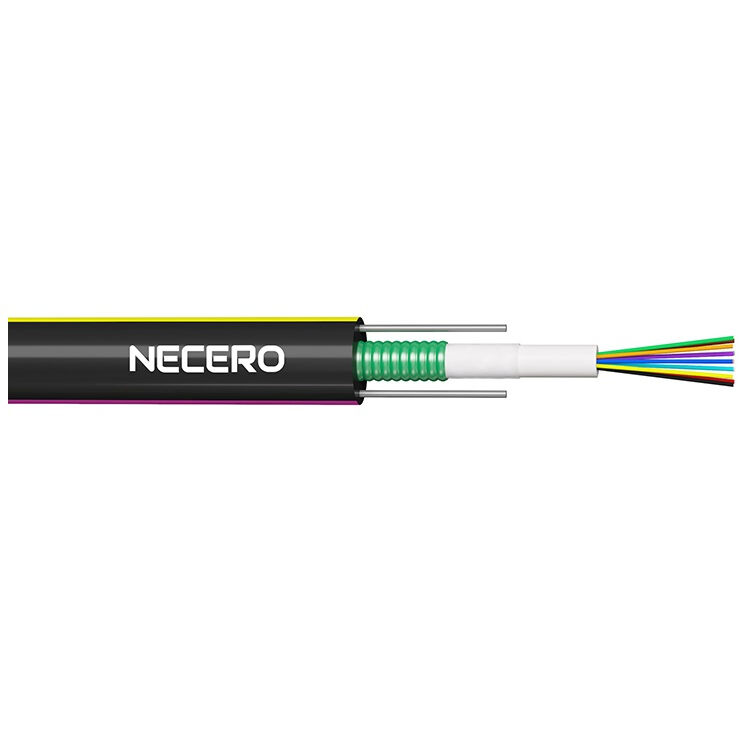

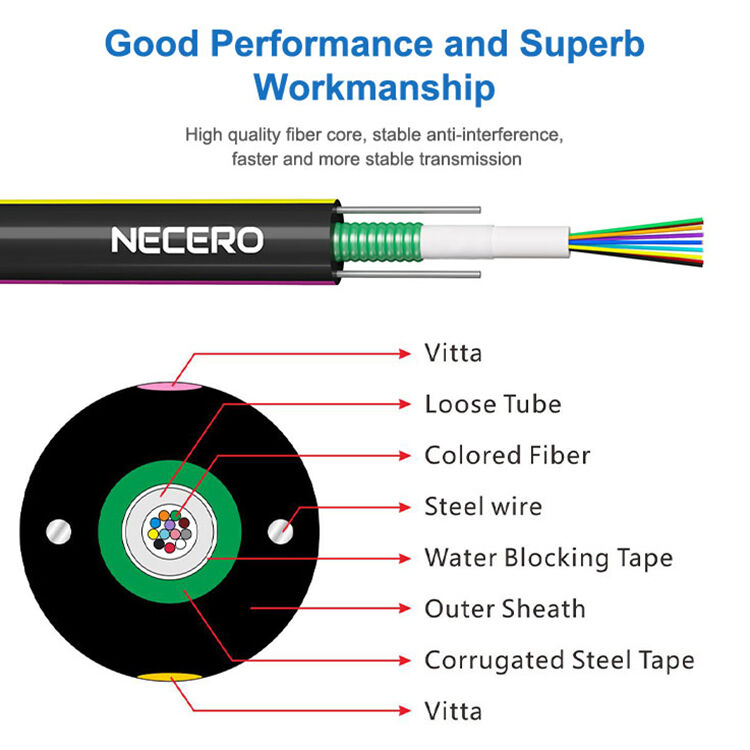

Fast Delivery GYXTW-6A1 GYXTW-6A1a Fiber Optical Cable
We are a 20-year fiber optic cable manufacturer. Welcome to visit our factory! Contact us for free samples.
Contact Us for Free Samples
Optical Performance Specifications
Parameter G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20ºC) @850nm ≤3.0 dB/km ≤3.0 dB/km
Attenuation (+20ºC) @1300nm ≤1.0 dB/km ≤1.0 dB/km
Attenuation (+20ºC) @1310nm ≤0.36 dB/km ≤0.40 dB/km
Attenuation (+20ºC) @1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
Bandwidth (Class A) @1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm ≤1480nm
Mechanical Specifications
Cable Type Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N/100mm) Bending Radius Static/Dynamic (mm)
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GYXTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D

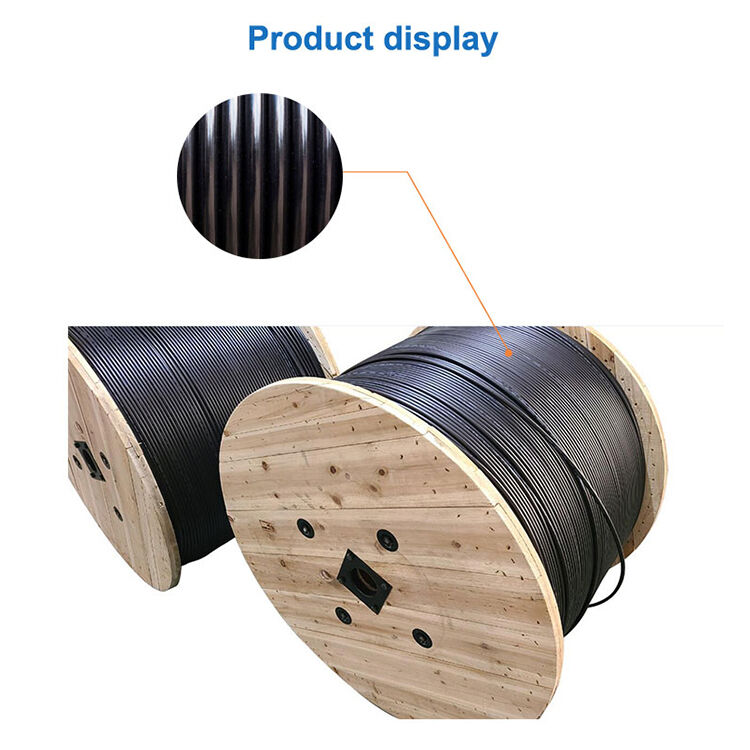

Product Images
Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 0 Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 1 Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 2 Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 3 Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 4
Related Products
Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 5
Frequently Asked Questions
  • Are you the real factory? Yes, we are the real factory with 20 years' history.
  • What is your fiber brand? Fiber brands: NECERO
  • What is your main products? Outdoor fiber optic cables; indoor fiber optic cables; FTTH Drop cables; ADSS; Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
  • Product quality guarantee period? 25 years' Guarantee for fiber optic cable
  • Do you have certificate for raw material? We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
  • What is your delivery time? Within 24 hours for 30KM normal kinds of fiber optic cable; 1-2 days for fiber optic patch cords with 10000 connectors.
Fast Delivery GYXTW-6A1 Outdoor Optic Cable with 2km Length Per Roll, 1000N Tensile Strength, and RoHS ISO9001 Certification 6
