Name: 100kWh+55kW Energy Storage System with LiFePO4 Battery and IP54 Protection BESS Cabinet
Brand: test
SKU: Ain-100kwh+55kw
Price: 20000 USD
Availability: InStock

Home > Products > Energy >

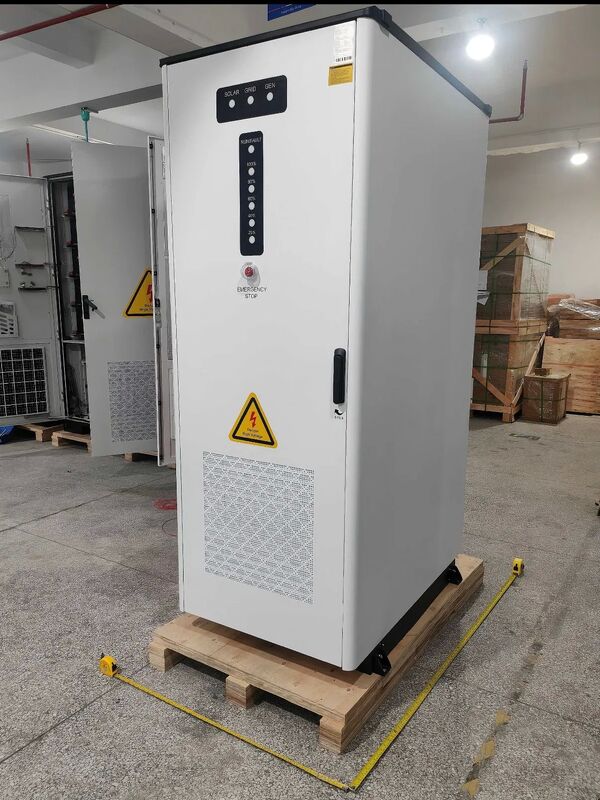

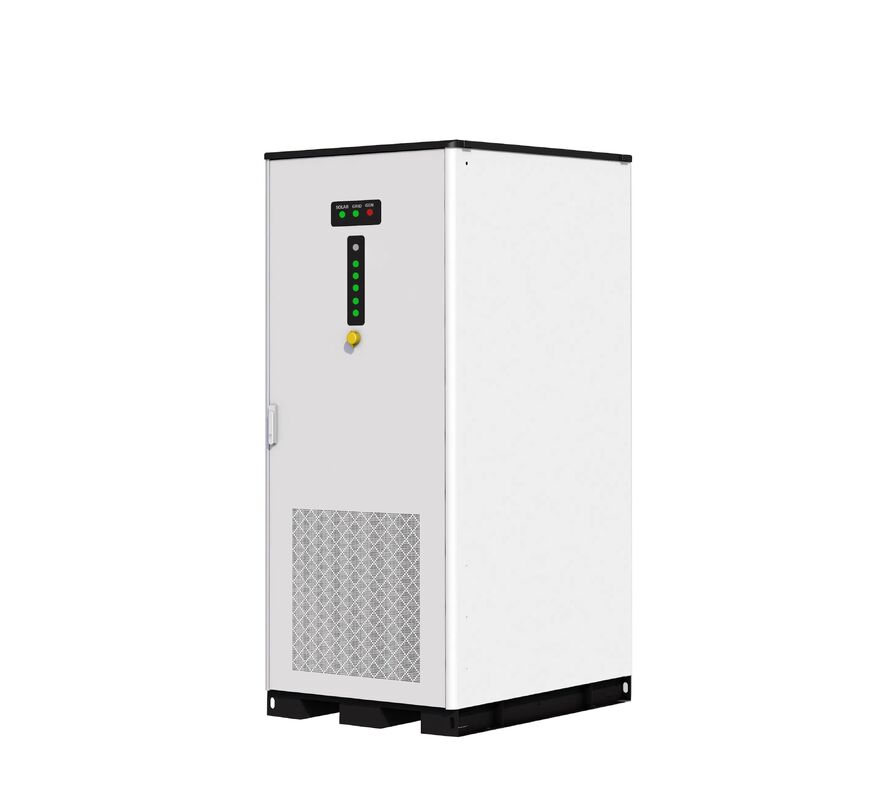

100kWh+55kW Energy Storage System with LiFePO4 Battery and IP54 Protection BESS Cabinet

100kWh+55kW Energy Storage System

LiFePO4 Battery BESS Cabinet

IP54 Protection Energy Storage System

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Model Number:

Ain-100kwh+55kw

Request A Quote

100kWh+55kW Energy Storage System with LiFePO4 Battery and IP54 Protection BESS Cabinet

Product Details

MPPT Voltage Range:

200~800VDC

Cooling Method:

Air Cooling

Power Configuration:

50kw-1MW

Battery Energy:

100kwh+55kw

Dimensions:

740X1348X2280 Cm

Cycle Life:

6000 Cycles (80%Dod)

Battery Type:

LiFePO4

Communication Port:

RS485, WiFi

Parallel Units:

Weight:

1200kg

AC Frequency:

50Hz/60Hz

Energy Capacity:

100kWh-500kWh

AC Rated Power:

55KW

Protection Class:

IP54

Cooling Capability:

55kw

Highlight:

100kWh+55kW Energy Storage System

LiFePO4 Battery BESS Cabinet

IP54 Protection Energy Storage System

Payment & Shipping Terms

Minimum Order Quantity

Price

20000

Related Products

Contact Now

Product Description

100kWh Energy Storage System with 55kW Cooling Capability

Product Overview

Product Name	Hybrid PV-Diesel Microgrid BESS Cabinet
Warranty	5 Years
Grid Connection	Off Grid/Hybrid Grid/On Grid
Battery Type	LiFePO4
Battery Module	100KWh
AC Rated Power	55KW
Protection Class	IP54

Diverse Portfolio for Every Need

Universal Scenario Compatibility

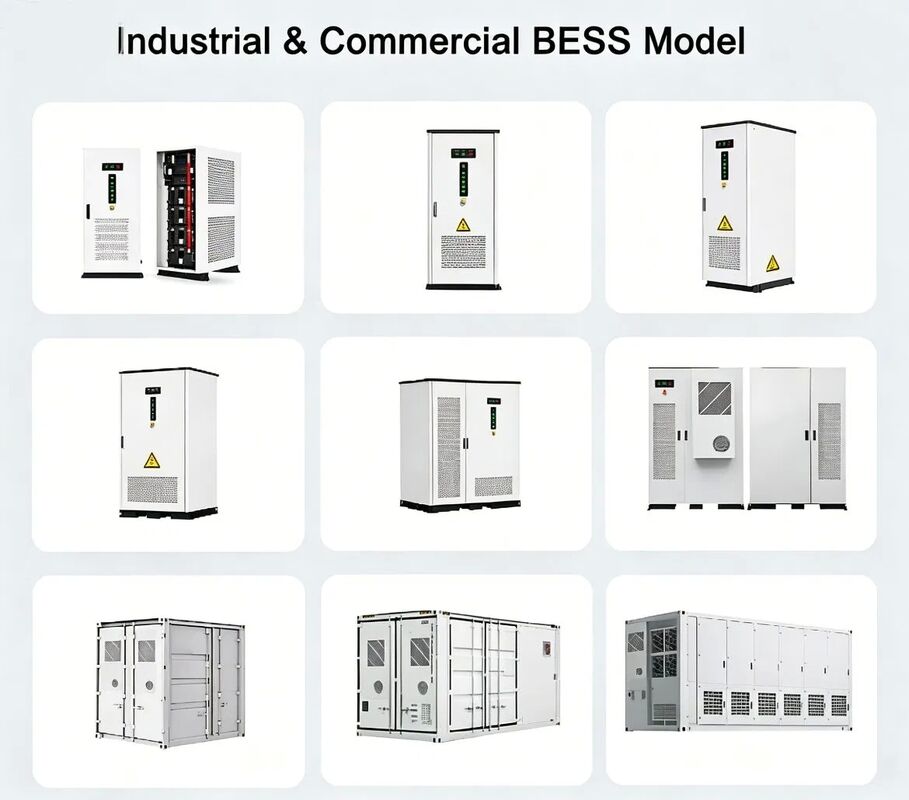

Our range spans standalone cabinets to large systems, offering solutions for projects from remote mining and telecom to industrial parks and complexes.

Scalable & Flexible Design
With modular, multi-unit operation, our BESS allows easy capacity expansion for small off-grid use or large peak-shaving needs.

Tailored Solutions for Specific Needs
We offer adaptable configurations in power, capacity, and protection levels (IP54+), meeting unique client needs even in harsh conditions.

New Grade A Cells for Safety and Quality

Built with new Grade A LiFePO4 cells, zero cycles. Superior consistency prevents swelling, leakage, and short circuits.

All cells undergo strict safety tests (temperature, impact, penetration) with multi-layer protection for residential and commercial use.

High energy density ensures compact 8000Wh/15000Wh modules without sacrificing safety or lifespan.

6000+ cycles (over 16 years daily use), retaining over 80% capacity post full cycles.

Product Advantages

Multi-Energy Compatibility & Scenario Adaptability
Integrates solar PV, storage, diesel generators, and grid into a true PVDG hybrid system. With <10ms seamless switching, it supports both on/off-grid use in remote areas like mines, oil fields, and telecom stations.

Integrated Design for Easy Deployment

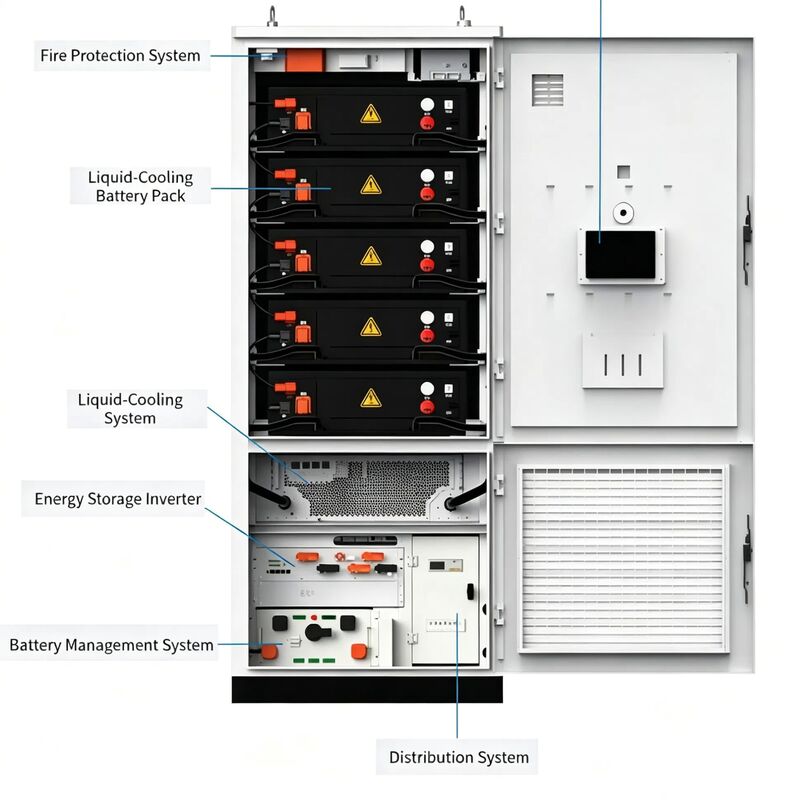

Fully integrated with BMS, PCS, EMS, cooling, fire systems. Rated IP54, it's dustproof, waterproof, temperature-resistant, ideal for harsh environments.

Industrial Safety & Scalability
With LiFePO4 batteries and safety protections (overcharge, discharge, current, temperature), it supports modular, parallel operation for flexible expansion.

Multi-Environment Compatibility

Off-Grid & Remote Sites
Perfect for mines, oil fields, telecom bases, and remote villages, providing stable power where the grid is unavailable.

Industrial & Commercial Facilities
Ideal for factories, manufacturing parks, complexes, and hotels, supporting peak shaving, backup, and cost efficiency.

Harsh Outdoor Conditions
IP54-rated enclosure resists dust, rain, & temperature changes, ideal for desert, coast, & high-altitude sites.

Technical Specifications

Company Profile

Anhui Xinben Mechanical & Electrical Eng. Co., Ltd., with 14+ years in lithium iron phosphate battery packs and new energy solutions, is headquartered in Hefei, Anhui Province.

Anhui Xinben offers stable, reliable products with automated lines, precision labs, and high-efficiency aging equipment. ISO 9001 certified, with CE, RoHS, UN 38.3 certifications, our products excel globally in portable batteries, home energy systems, BESS, and telecom backup.

Applications

Packing & Delivery

About Packing

Batteries are securely packed with shockproof foam, anti-static bags, and sturdy cartons. For large orders, wooden cases or pallets are used for maximum protection. Packages are labeled with product specs, handling marks, and UN3480 hazard labels, meeting international shipping standards.

About Shipping

Offering sea, air, and express delivery options, we ensure seamless customs clearance with complete UN38.3 reports, MSDS, and documentation. Reliable freight forwarders track shipments for safe, on-time delivery to ports or door-to-door.

Frequently Asked Questions

Q1. Are you a factory or trading company?

A: We are a factory, offering ODM&OEM services.

Q2. Do you have any MOQ limit for order?

A: Low MOQ, 1pc sample checking available.

Q3. What about the lead time?

A: Sample delivery: 5-7 days post-request and charge. Mass production: 15-30 days post-order and deposit.

Q4: Can battery products be shipped by sea or air?

A: Absolutely. We have partnerships with forwarders specializing in battery shipments.

Q5: Why should we choose you over other suppliers?

A: Specializing in energy storage systems, we offer PCS, battery packs, BMS, EMS, transformers, and heating systems.

Q6: How to deal with the faulty?

A: Our strict quality control ensures less than 0.2% defect rate. During warranty, we send new products with orders for small quantities. For defective batches, we repair and resend or discuss other solutions.
