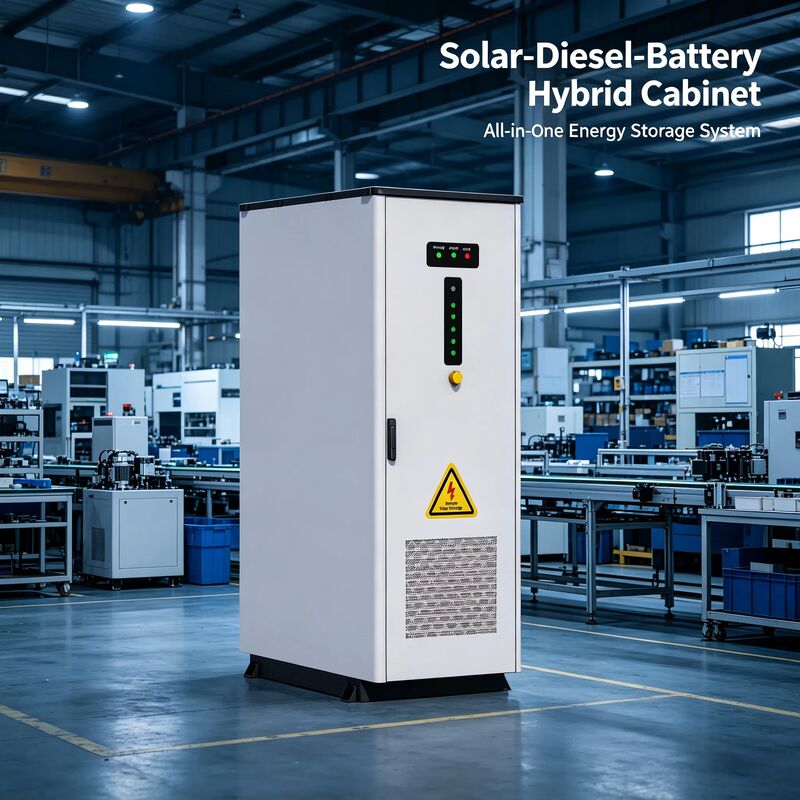

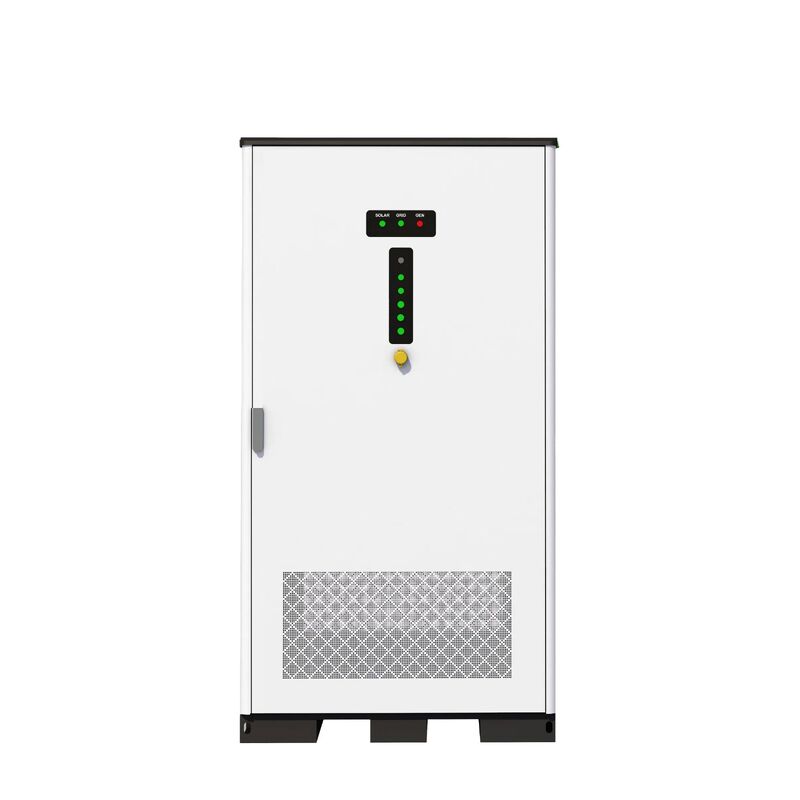

Name: 100kWh-500kWh LiFePO4 Battery Energy Storage System with IP54 Protection for Industrial Applications
Brand: test
SKU: Ain-100kwh+55kw
Price: 20000 USD
Availability: InStock

Home > Products > Energy >

100kWh-500kWh LiFePO4 Battery Energy Storage System with IP54 Protection for Industrial Applications

100kWh-500kWh Energy Capacity BESS Cabinet

LiFePO4 Battery Energy Storage System

IP54 Protection Hybrid PV-Diesel Microgrid

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Model Number:

Ain-100kwh+55kw

Request A Quote

100kWh-500kWh LiFePO4 Battery Energy Storage System with IP54 Protection for Industrial Applications

Product Details

Cycle Life:

6000 Cycles (80%Dod)

Specification:

740X1348X2280 Cm

Communication Port:

RS485, WiFi

Power Configuration:

50kw-1MW

MPPT Voltage Range:

200~800VDC

Energy Capacity:

100kWh-500kWh

Cooling Method:

Air Cooling System/Full Liquid Cooling

Battery Energy:

100kwh+55kw

Weight:

1200kg

Parallel:

AC Frequency:

50Hz/60Hz

Battery Type:

LiFePO4

AC Rated Power:

55KW

Protection Class:

IP54

Battery Module:

100KWh

Highlight:

100kWh-500kWh Energy Capacity BESS Cabinet

LiFePO4 Battery Energy Storage System

IP54 Protection Hybrid PV-Diesel Microgrid

Payment & Shipping Terms

Minimum Order Quantity

Price

20000

Related Products

Contact Now

Product Description

100kWh 261kWh Advanced Outdoor Energy Storage Battery System for Industrial Applications

Product Overview

Product Name	Hybrid PV-Diesel Microgrid BESS Cabinet
Warranty	5 Years
Grid Connection	Off Grid/Hybrid Grid/On Grid
Battery Type	LiFePO4
Battery Module	100KWh
AC Rated Power	55KW
Protection Class	IP54

Diverse Product Range for Every Need

Universal Scenario Compatibility: Our range spans from standalone cabinets to large systems, fit for mining, telecom, and more.
Scalable & Flexible Design: Modular, parallel operation for easy expansion from small off-grid to large peak-shaving needs.
Tailored Solutions for Unique Needs: Power, capacity, and IP54+ protection adapt to tough conditions and client specifications.

Grade A Cells Ensure Safety and Quality

New Grade A LiFePO4 cells with zero cycles for high consistency and risk avoidance.
Cells pass safety tests with multi-layer protection for residential and commercial use.
High energy density makes modules compact, safe, and long-lasting.
6000+ cycles (16 years daily), retaining 80% capacity post full cycles.

Product Advantages

Multi-Energy & Scenario Adaptability: Integrates solar, batteries, diesel, and grid into a hybrid system with <10ms seamless switching.

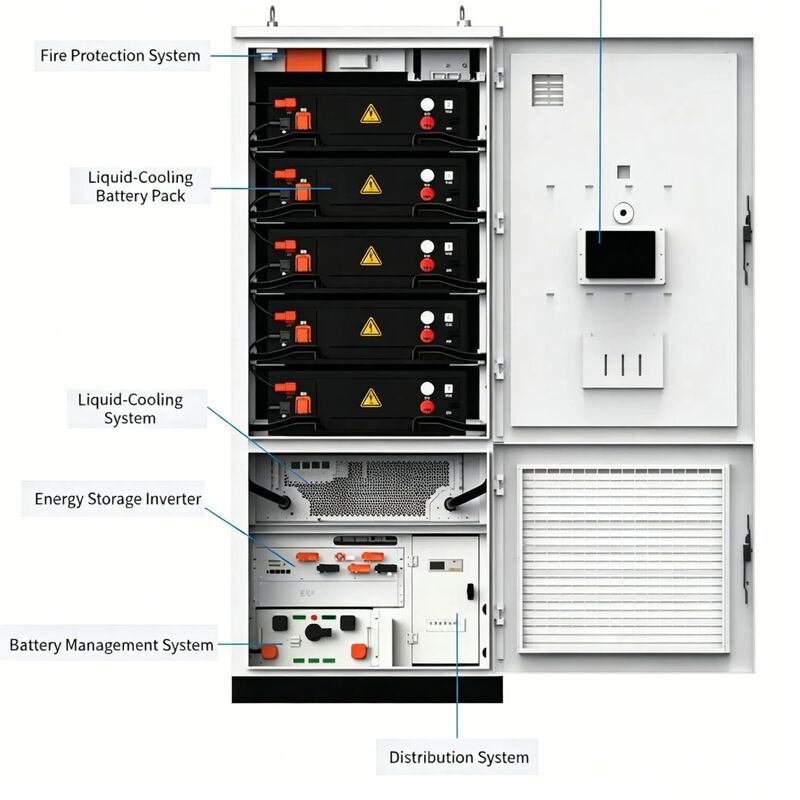

Integrated Design for Easy Use: Includes BMS, PCS, EMS, cooling, fire systems, IP54-rated for outdoor use in harsh environments.
Safety & Scalability: LiFePO4 batteries with protections and modular design for flexible expansion.

Environment Compatibility

Off-Grid & Remote Locations: Ideal for mines, oil fields, telecom, and remote villages, providing stable power.
Industrial & Commercial Use: Suitable for factories, parks, complexes, hotels, aiding peak shaving, backup, and cost savings.
Harsh Outdoor Conditions: IP54 enclosure withstands dust, rain, and temperature changes for desert, coastal, and high-altitude areas.

Technical Specifications

Company Profile

About Our Company
Anhui Xinben Mechanical & Electrical Eng. Co., Ltd., with 14+ years in lithium battery packs and new energy solutions, is headquartered in Hefei, Anhui Province.

With automated lines, precision labs, Anhui Xinben Mechanical & Electrical Eng. Co., Ltd. offers stable, reliable products. ISO 9001 certified, with CE, RoHS, UN 38.3 certifications, our products excel globally in portable batteries, home energy systems, BESS, and telecom backup.

Applications

Packing & Delivery

About Packing

Energy storage batteries come with shockproof foam, anti-static bags, and export cartons. For large orders, we use wooden cases or pallets for transit protection. Packages include product specs, handling marks, and UN3480 labels, adhering to international shipping standards.

About Shipping

We provide sea, air, and express delivery (DHL/UPS/FedEx) as per customer requirements. Lithium battery shipments are accompanied by UN38.3 test reports, MSDS, and customs clearance documents. Our reliable forwarders track shipments for safe, timely delivery.

Frequently Asked Questions

Q1. Are you a factory or trading company?

A: We are a factory, offering ODM&OEM services.

Q2. Do you have any MOQ limit for order?

A: Low MOQ, 1pc sample checking available.

Q3. What about the lead time?

A: Sample delivery: 5-7 days post-request and charge. Mass production: 15-30 days post-order and deposit.

Q4: Can battery products be shipped by sea or air?

A: Absolutely. We partner with forwarders specializing in battery shipments.

Q5: Why should we choose you over other suppliers?

A: As a professional energy storage systems manufacturer, we specialize in PCS, battery packs, BMS, EMS, transformers, and heating systems.

Q6: How to deal with the faulty?

A: Our products are produced in a strict quality control system with a defective rate under 0.2%. During the guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair and resend them or discuss solutions like recalls.
