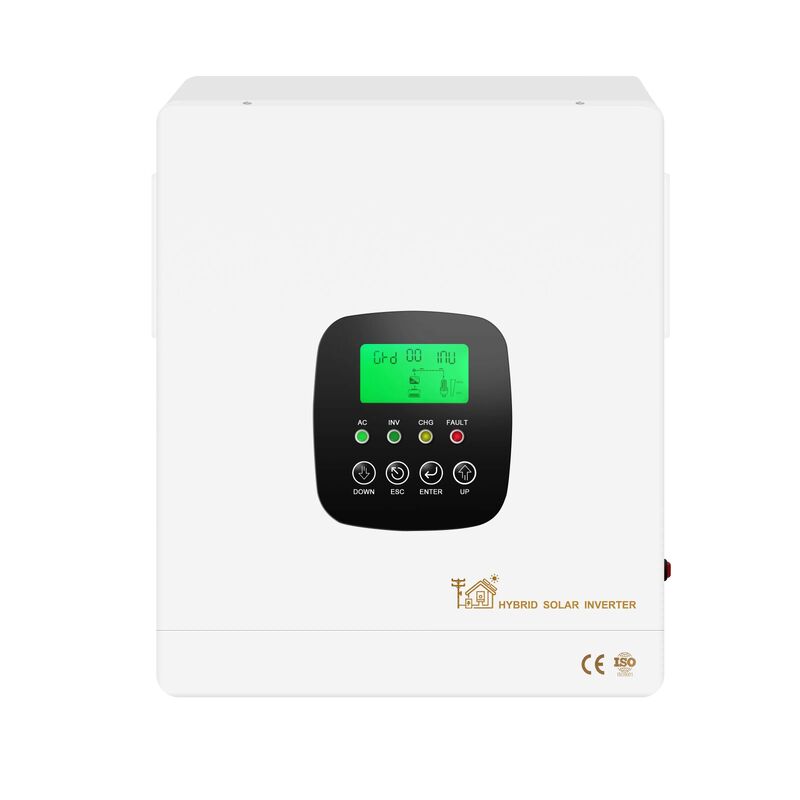

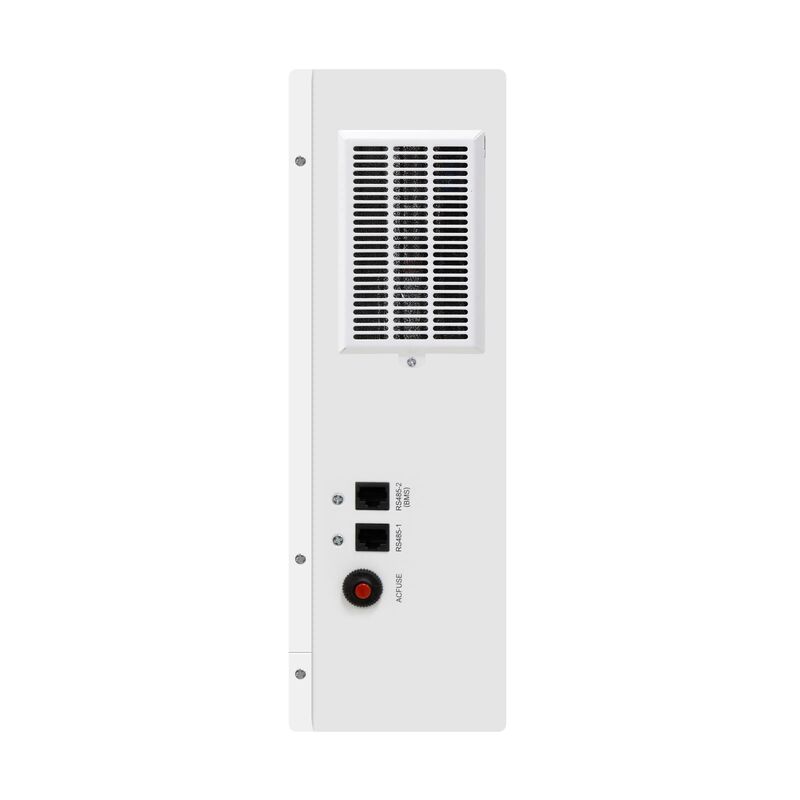

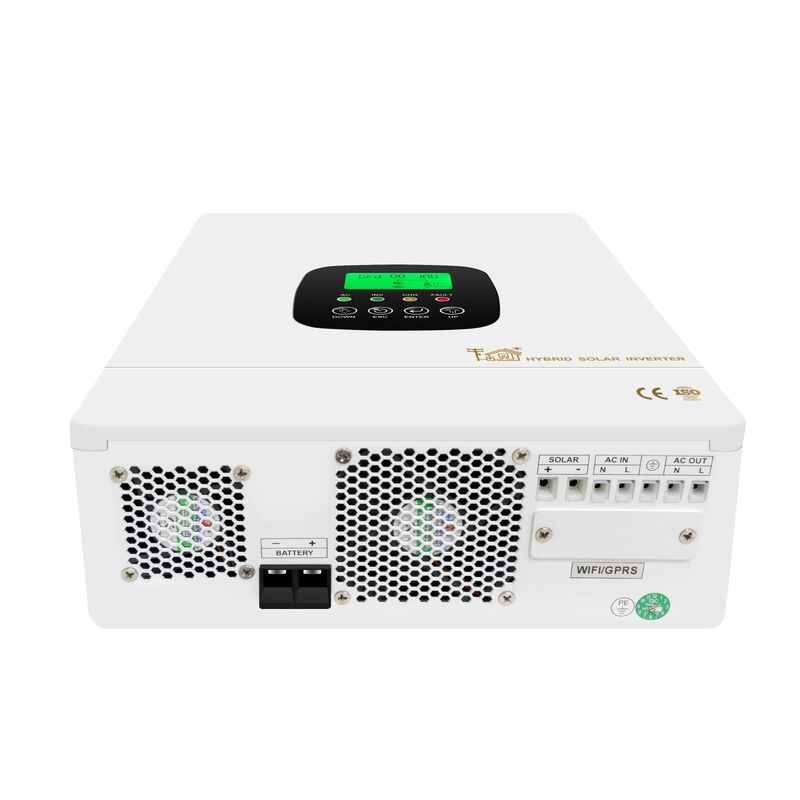

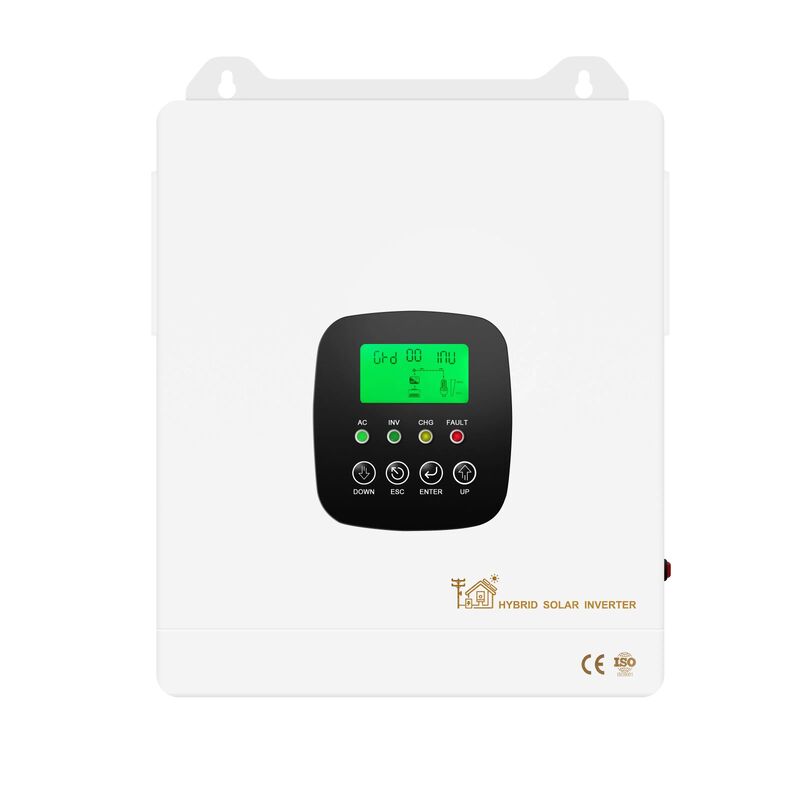

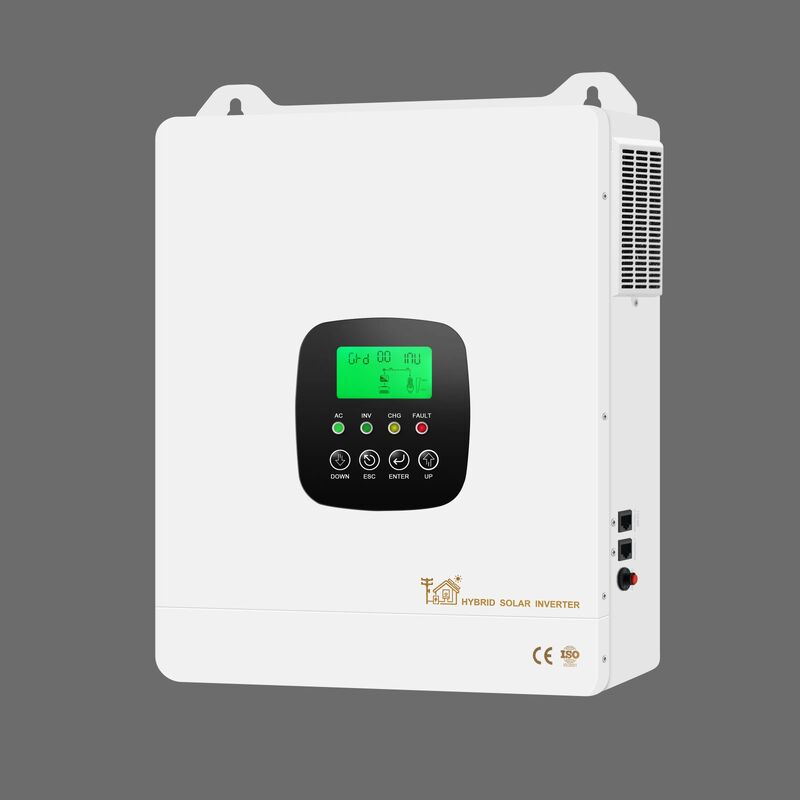

Name: Premium Hybrid Solar Inverter with Bidirectional Energy Storage Ultra-wide MPPT Range and Pure Sine Wave Output
Brand: test
Price: 180 USD
Availability: InStock

Home > Products > Energy >

Premium Hybrid Solar Inverter with Bidirectional Energy Storage Ultra-wide MPPT Range and Pure Sine Wave Output

Bidirectional Energy Storage Hybrid Solar Inverter

Ultra-wide MPPT Range Solar Power Inverter

Pure Sine Wave Output Photovoltaic Inverter

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Premium Hybrid Solar Inverter with Bidirectional Energy Storage Ultra-wide MPPT Range and Pure Sine Wave Output

Product Details

Output Power:

>1000W

Power Source:

Solar Power, Wind Power

Circuit Topologies:

Push-pull Type

Rated Power:

1000W| 1300W| 1800W| 1800w| 2300W| 3300W

Max PV Input Power:

1500W| 2000W| 2500W| 2500W| 3000W| 5000W

MPPT Tracking Voltage Range:

30Vdc-240Vdc| 40Vdc-350Vdc| 40Vdc-450Vdc

Rated Voltage:

180Vdc| 240Vdc

Max PV Input Voltage:

300Vdc| 400Vdc| 500Vdc

Max PV Input Current:

13A| 15A| 18A

MPPT Tracking Channels:

1 Routed

Battery Type:

Lead-acid Battery/Lithium Battery

Rated Battery Voltage:

12Vdc| 24Vdc

Battery Voltage Range:

10.5-15Vdc(default)| 21-30Vdc(default)

Max PV Charging Current:

60A| 80A| 100A| 60A| 80A| 120A

Max AC Charging Current:

40A| 50A| 65A| 35A| 50A| 80A

Highlight:

Bidirectional Energy Storage Hybrid Solar Inverter

Ultra-wide MPPT Range Solar Power Inverter

Pure Sine Wave Output Photovoltaic Inverter

Payment & Shipping Terms

Minimum Order Quantity

Price

180

Related Products

Contact Now

Product Description

Premium Hybrid Solar Inverter for Domestic Photovoltaic Power Systems

RELIABLE WALL-MOUNTED HOME BATTERY STORAGE SYSTEM

High-frequency design with high power density, compact size, and efficiency. Bidirectional energy storage enables power flow control, allowing solar and mains electricity to charge the battery. Ultra-wide MPPT range supports 30Vdc to 80Vdc.

Technical Specifications

Specification	1000W	1300W	1800W	1800w	2300W	3300W
Rated Power	1000W	1300W	1800W	1800w	2300W	3300W
Max PV Input Power	1500W	2000W	2500W	2500W	3000W	5000W
MPPT Tracking Voltage Range	30Vdc-240Vdc		40Vdc-350Vdc		40Vdc-450Vdc
Rated Voltage	180Vdc			240Vdc
Max PV Input Voltage (VOC)	300Vdc		400Vdc		500Vdc
Max PV Input Current	13A	15A	18A
MPPT Tracking Channels	1 Routed
Battery Type	Lead-acid Battery/Lithium Battery
Rated Battery Voltage	12Vdc			24Vdc
Battery Voltage Range	10.5-15Vdc (default)			21-30Vdc (default)
Max PV Charging Current	60A	80A	100A	60A	80A	120A
Max AC Charging Current	40A	50A	65A	35A	50A	80A
Max Charging Current	60A	80A	100A	60A	80A	120A
Rated Input Voltage	230V (220V or 240V Can be set)
Mains Input Voltage Range	165Vac-280Vac/120Vac~280Vac (Can be set)
Rated Input Frequency	50Hz/60Hz
Input Frequency Range	45Hz-55Hz(50Hz), 55Hz-65Hz(60Hz)
Rated Output Voltage	230V (220V or 240V Can be set)
Output Voltage Accuracy	±2%
Output Frequency Accuracy	±1%
Output Wave	Pure Sine Wave
Grid Voltage Range	187Vac~264Vac
Rated Output Current	4.3A	5.6A	7.8A	7.8A	10A	14.3A
Power Factor	>0.98 (Rated Power)
No Load Loss (Battery Discharge)	1% Rated Power (Typical value)
MPPT Tracking Efficiency	≥99.9%
Transfer Time	10ms (Typical value)
Display	LCD+LED
Cooling Method	Cooling fan in intelligent control
Communication	RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional)
Protection Degree	IP20
Anti-islanding Protection	≤2S

Physical Dimensions & Weight

Model	Product Size (L·W·H mm)	Package Size (L·W·H mm)	N.W. (kg)	G.W. (kg)
1000W	26523191	340286156	3	3.5
1300W	28525091	360305156	3.6	4.5
1800W	31025091	385305156	4	5
1800w	28525091	360305156	3.7	4.6
2300W	325275102	400330167	3.9	4.8
3300W			5.5	6.5

Advanced Features

Customized batteries can be set with different types of charge and discharge parameters through the operation panel
Supports configurable operating modes: grid-connected, off-grid, hybrid
Allows grid-connected current settings
Offers output and charging priority settings
Features BMS communication for lithium batteries
Supports battery-free operation mode

Frequently Asked Questions

Q1: Why choose us?

A: Years of experience in production. Professional sales and R&D team. Qualified products at competitive prices. Timely delivery and sincere services.

Q2: How is your after-sale service?

A: We offer a 1-2-year warranty and 1% spare parts for free. We will repair the PCB or provide a new one.

Q3: What certifications do you have?

A: ISO9001, ISO14001, CE, ROHS, UL, etc. All series products pass various labor tests per different countries' requirements.

Q4: Delivery time:

A: Standard products delivered within 15 days.

Q5: Can I have a sample order?

A: Yes, sample orders are welcome to test and check quality.
