Modular Design 6kw 15kwh All-in-One Home Battery Energy Storage System with Integrated Solar

Modular Design Home Energy Storage System

6kw All-in-One Home Battery

15kwh Integrated Solar Energy Storage System

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

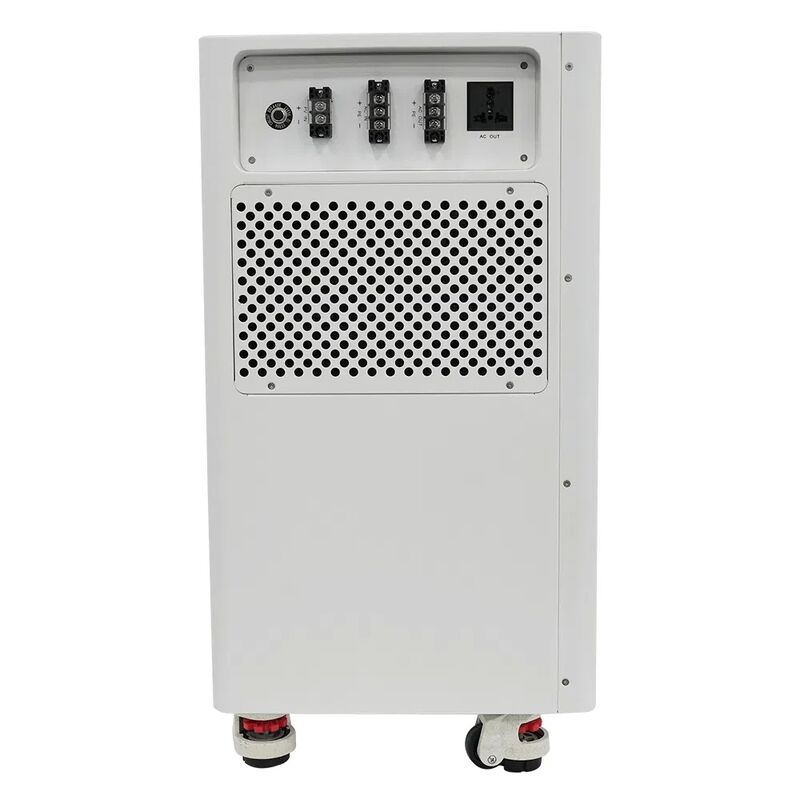

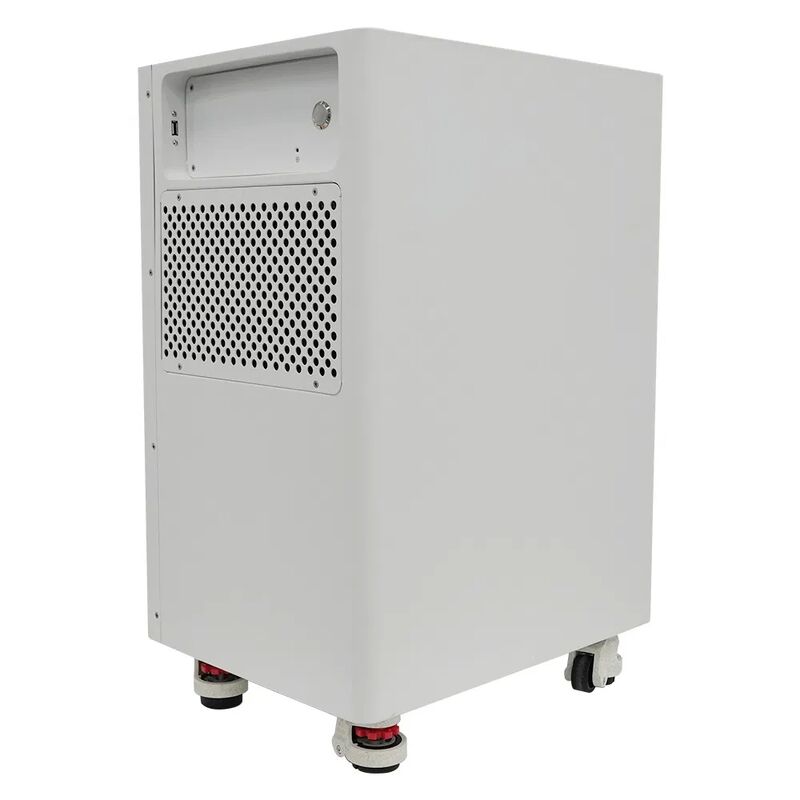

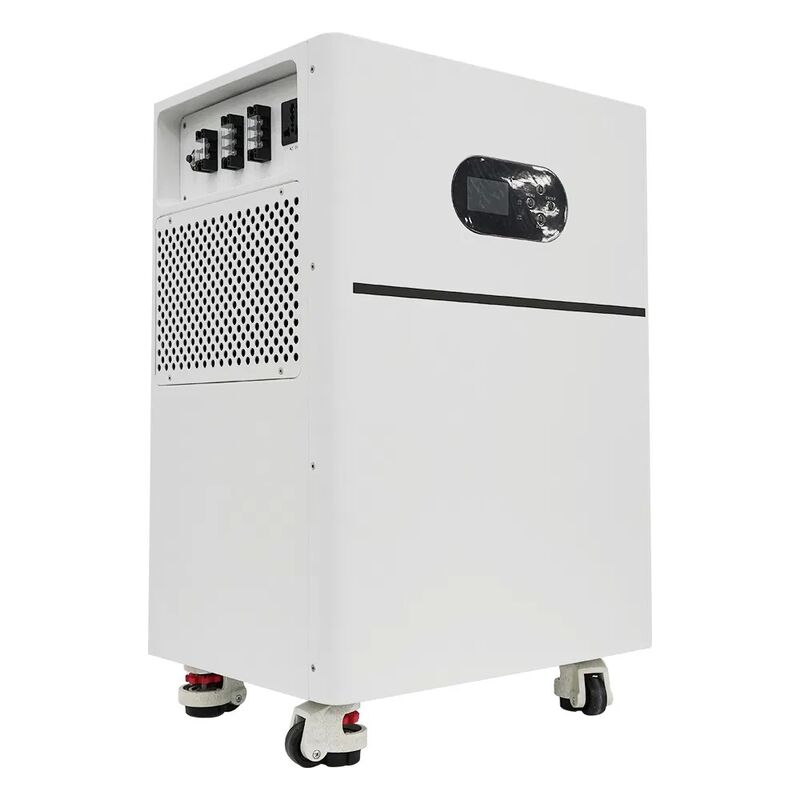

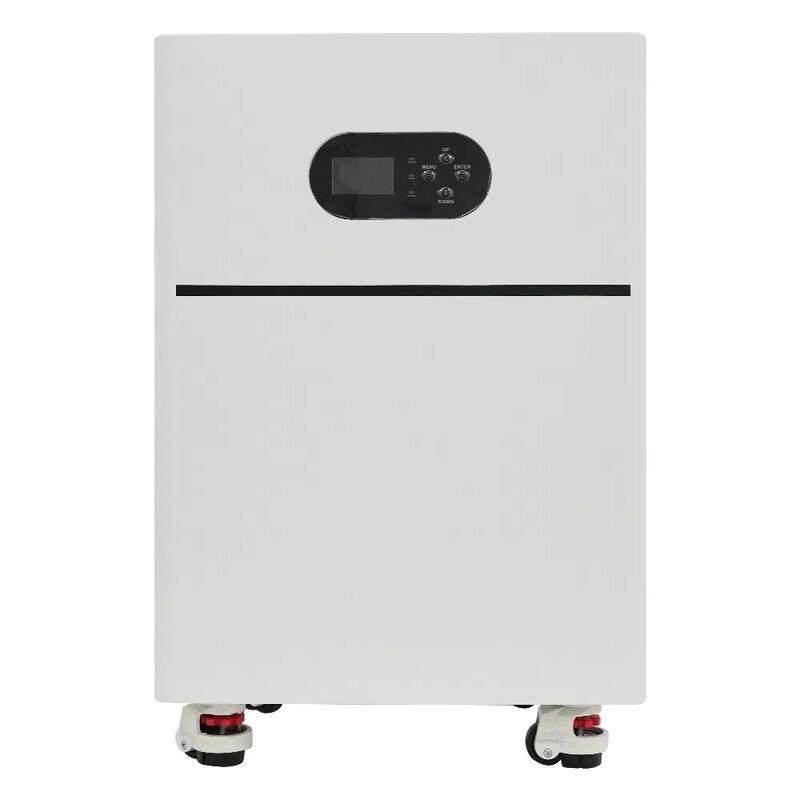

Modular Design 6kw 15kwh All-in-One Home Battery Energy Storage System with Integrated Solar

Product Details

Model:

SMP-FU002

Battery Pack:

25.6V100Ah

Nominal Voltage:

25.6V

Operating Voltage:

21.6V~28.8V

Rated Energy:

2.56kWh

Max PV Voltage:

160VDC

MPPT Voltage:

30~128VDC

Max Input Power:

1600W

Max Current:

50A

Input/Output Voltage:

220~240VAC

Input Current:

14A

Output Current:

17A (terminal)/10A (socket)

Frequency:

50Hz/60Hz (adaptive)

Rated Power:

3000W

Cycle Life:

≥6000 @25℃,80%DOD

Highlight:

Modular Design Home Energy Storage System

6kw All-in-One Home Battery

15kwh Integrated Solar Energy Storage System

Payment & Shipping Terms

Minimum Order Quantity

Price

1299

Related Products

Contact Now

Product Description

Modular Design 6kW 15kWh All-in-One Home Battery Energy Storage System

The H3 series integrated solar energy storage system combines photovoltaic inverters and energy storage lithium batteries into a single, streamlined unit. This modular design reduces installation complexity and simplifies maintenance while providing reliable 24-hour outdoor power supply, making it ideal for areas with limited electricity access.

Technical Specifications

Battery Pack Specifications

Model	SMP-FU002
Battery Pack Specifications	25.6V 100Ah
Nominal Voltage	25.6V
Operating Voltage Range	21.6V~28.8V
Rated Energy	2.56kWh

PV Input Parameters

Maximum PV Open-Circuit Voltage	160VDC
MPPT Voltage Range	30~128VDC
Maximum Input Power	1600W
Maximum Charge/Discharge Current	50A

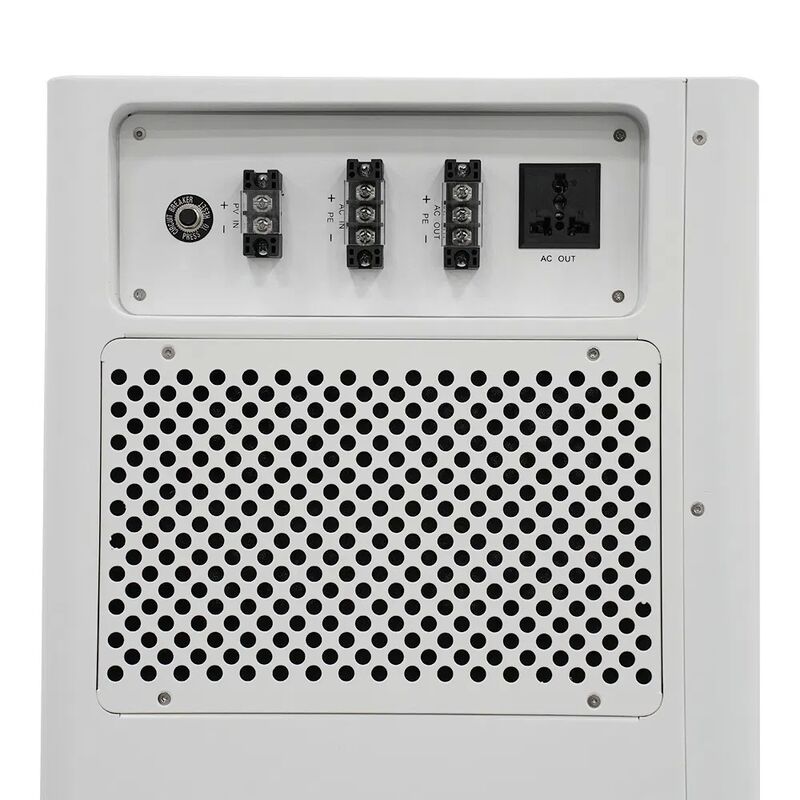

AC Output/Input Parameters

Input/Output Voltage	220~240VAC
Selectable Voltage Range	170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE)
Input Current	14A
Output Current	17A (terminal)/10A (socket)
Frequency	50Hz/60Hz (adaptive)
Rated Output Power	3000W

General Parameters

Communication Protocol	RS485/WIFI
Operating Altitude	≤2000m
Cooling Method	Built-in Fan
Installation Type	Floor-standing
IP Rating	IP20
Cycle Life	≥6000 @25℃,80%DOD
Operating Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimensions	450671330mm
Packaging Dimensions	550771450mm
Net Weight	45kg

Manufacturer Profile

Zhejiang Fimos Energy Technology Co., Ltd. is a forward-thinking enterprise dedicated to the research, development, production, and sales of advanced energy storage solutions. With a strong focus on innovation and sustainability, we aim to empower a greener future by providing safe, efficient, and intelligent energy storage systems for residential, commercial, and mobile applications.
