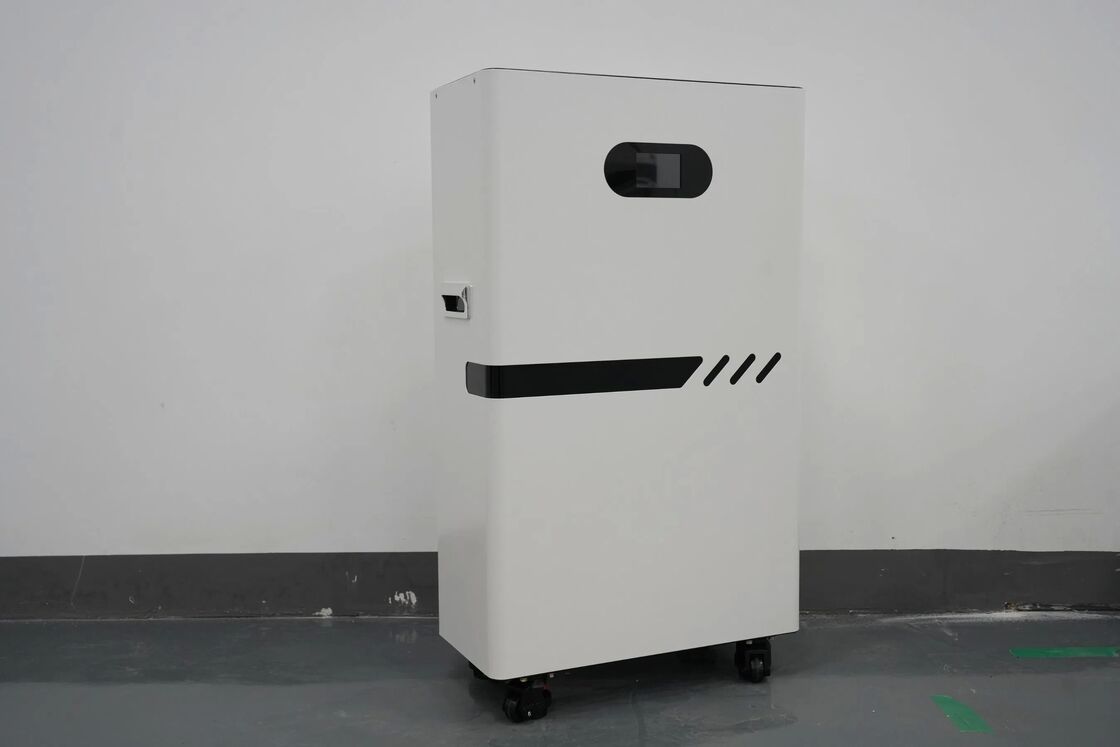

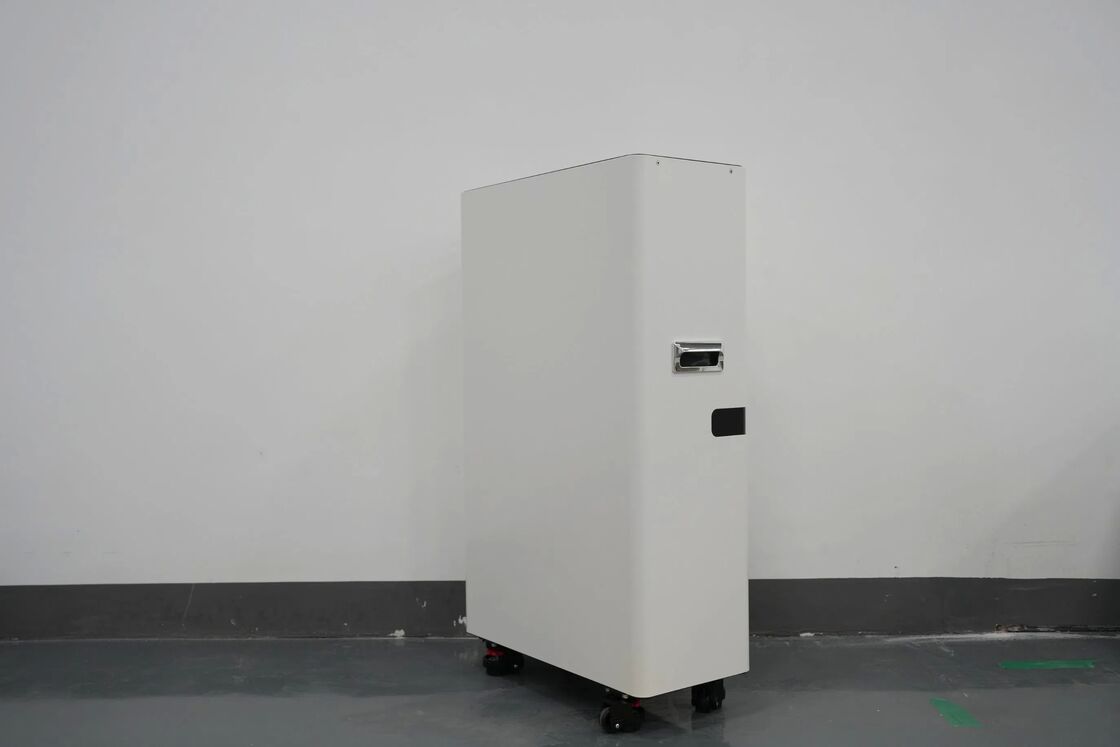

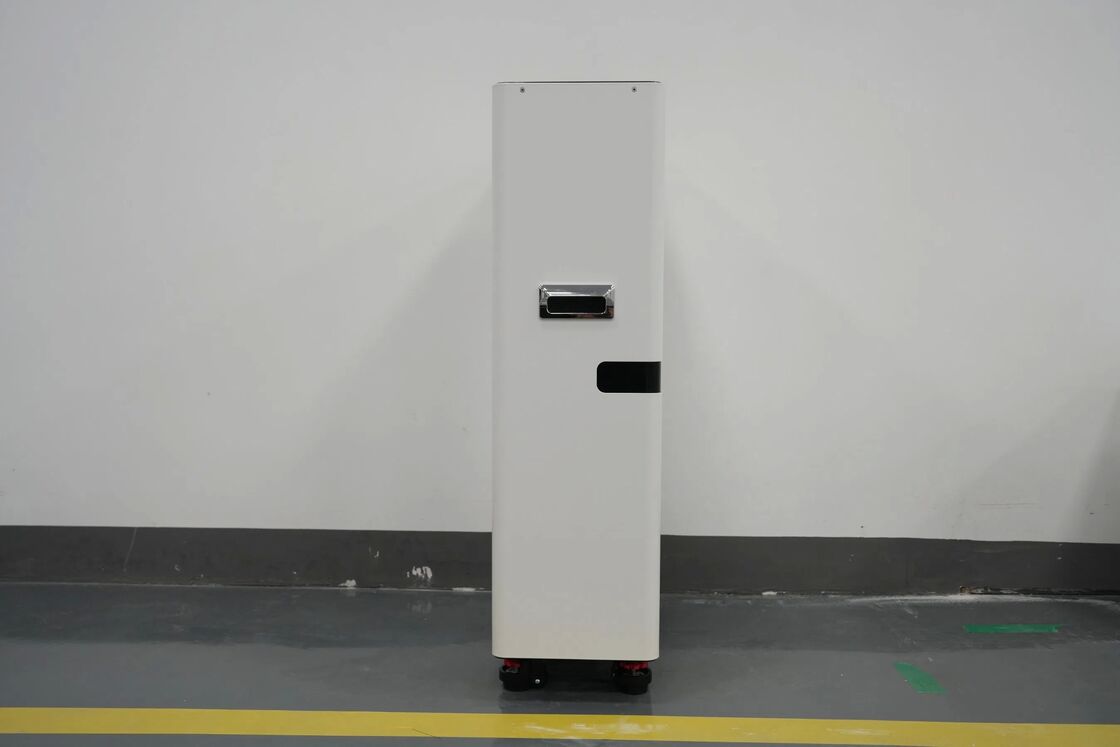

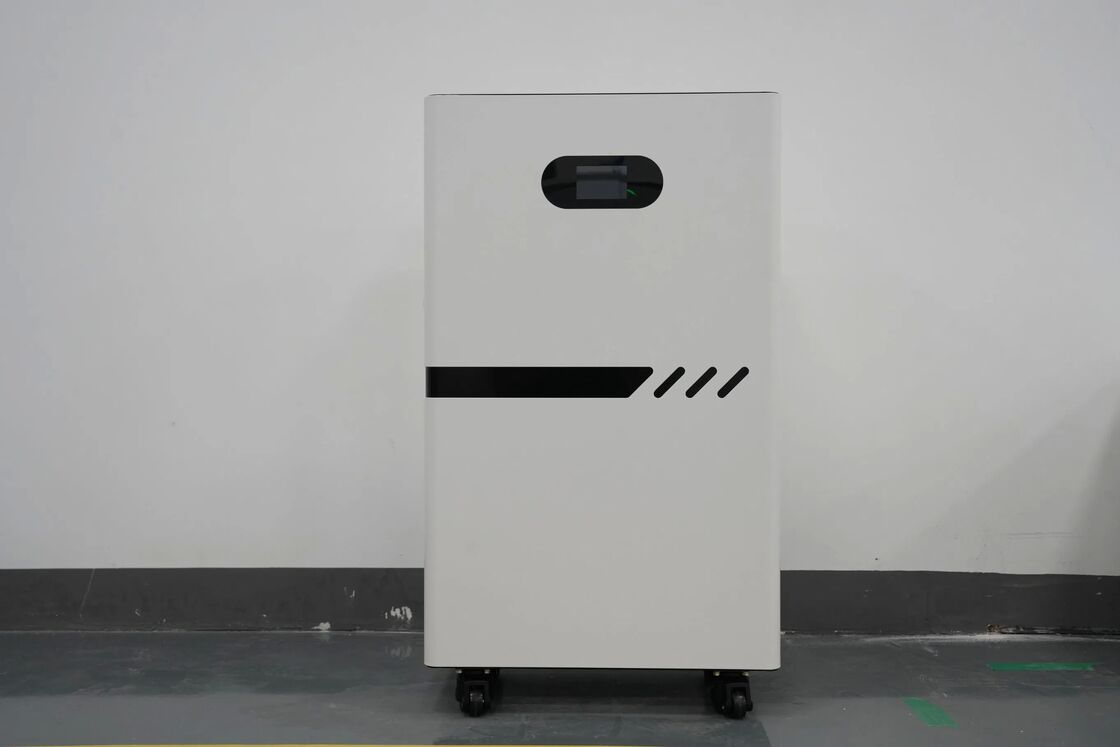

5.12kWh Modular Stackable Hybrid Solar Inverter with 5000W Pure Sine Wave and 90% Depth of Discharge for Home Energy Storage System

5.12kWh Modular Stackable Hybrid Solar Inverter

5000W Pure Sine Wave Hybrid Solar Inverter

90% Depth of Discharge Solar Energy Storage System

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

5.12kWh Modular Stackable Hybrid Solar Inverter with 5000W Pure Sine Wave and 90% Depth of Discharge for Home Energy Storage System

Product Details

Nominal Capacity:

5wh

Single Module Capacity:

5.12kWh

Module Number:

2PCS|3PCS|4PCS|5PCS

Total Energy:

10.24kWh|15.36kWh|20.48kWh|25.6kWh

Standard Voltage:

51.2V

Working Voltage Range:

43.2V~57.6V

Standard Discharge Current:

100A

Standard Charge Current:

50A

DOD:

90%

Product Dimension:

550*500*170mm

Package Dimension:

650*600*270mm

Net Weight:

46kg

Working Voltage Range:

100~500VDC

MPPT Working Voltage Range:

125~425VDC

Input Power:

PV1:5500W/PV2:5500W

Highlight:

5.12kWh Modular Stackable Hybrid Solar Inverter

5000W Pure Sine Wave Hybrid Solar Inverter

90% Depth of Discharge Solar Energy Storage System

Payment & Shipping Terms

Minimum Order Quantity

Price

428

Related Products

Contact Now

Product Description

Modular Stackable Home Energy Storage System

Unlock true energy independence with our Stackable Home Energy Storage System — a powerful, modular solution designed for residential solar storage, backup power, and off-grid living.

Each 5.12kWh LiFePO4 battery module can be stacked from 1 to 5 units, delivering a scalable capacity of up to 25.6kWh to match your household's unique energy demands.

This all-in-one ESS integrates a high-efficiency 5000W pure sine wave inverter and a 5500W MPPT solar charge controller (120–500VDC input range), enabling seamless compatibility with most residential PV systems.

With a 90% depth of discharge (DOD), 100A discharge current, and built-in UPS functionality, this system ensures reliable, uninterrupted power for your home — day or night, on-grid or off-grid.

Technical Specifications

Model	SMP-EU202-2	SMP-EU202-3	SMP-EU202-4	SMP-EU202-5
Single Module Capacity	5.12kWh
Module Number	2PCS	3PCS	4PCS	5PCS
Total Energy	10.24kWh	15.36kWh	20.48kWh	25.6kWh
Standard Voltage	51.2V
Working Voltage Range	43.2V~57.6V
Standard Discharge Current	100A
Standard Charge Current	50A
DOD	90%
Installation	Stacked
Product Dimension (Module)	550500170mm
Package Dimension (Module)	650600270mm
Net Weight (Module)	46kg
PV Input Working Voltage Range	100~500VDC
MPPT Working Voltage Range	125~425VDC
Input Power	PV1:5500W/PV2:5500W
Max Input Current	PV1:22A/PV2:22A
Max Charging Current	50A
Rated Input Voltage	220/230/240VAC
Rated Input Voltage Range	90~275VAC
Frequency	50Hz/60Hz
Max Bypass Overload Current	50A
Rated Output Voltage	220/230/240VAC
Rated Output Power	10000W (Battery mode)
Total Product Dimension	550500723mm	550500893mm	5505001063mm	5505001233mm
Ingress Protection	IP20
Communication	CAN/RS485/RS232/WIFI (Optional)
Working Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
20GP Container	BAT*3+INV+Base 50pcs
40HQ Container	BAT*3+INV+Base 100pcs

Key Features

Modular & Scalable Design

Stack 1 to 5 battery modules (5.12kWh each) to create a customized energy storage system ranging from 5.12kWh to 25.6kWh. Easily expand your capacity as your energy needs grow — no complex rewiring required.

High-Capacity LiFePO4 Battery Technology

Built with safe, long-lasting lithium iron phosphate (LFP) cells, offering superior thermal stability, a lifespan of 6,000+ cycles, and a 90% usable depth of discharge for maximum energy utilization.

Integrated 5000W Hybrid Inverter

Features a powerful built-in pure sine wave inverter with 5000W rated output power, providing clean, stable AC electricity (220/230/240VAC, 50/60Hz) for sensitive appliances and heavy loads.

Wide MPPT Solar Input Range

PV input from 120V to 500VDC with a 5500W maximum input power, ensuring high solar harvest efficiency and compatibility with various solar panel configurations.

Built-in UPS Functionality

Automatic switchover during grid failures (response within milliseconds) keeps critical devices running without interruption — ideal for home offices, medical equipment, and security systems.
