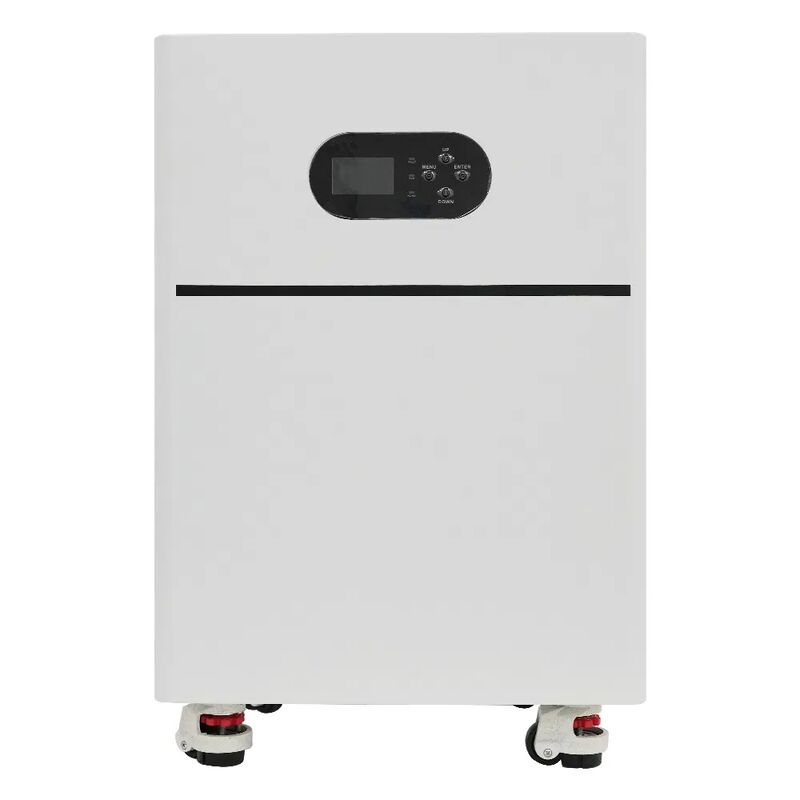

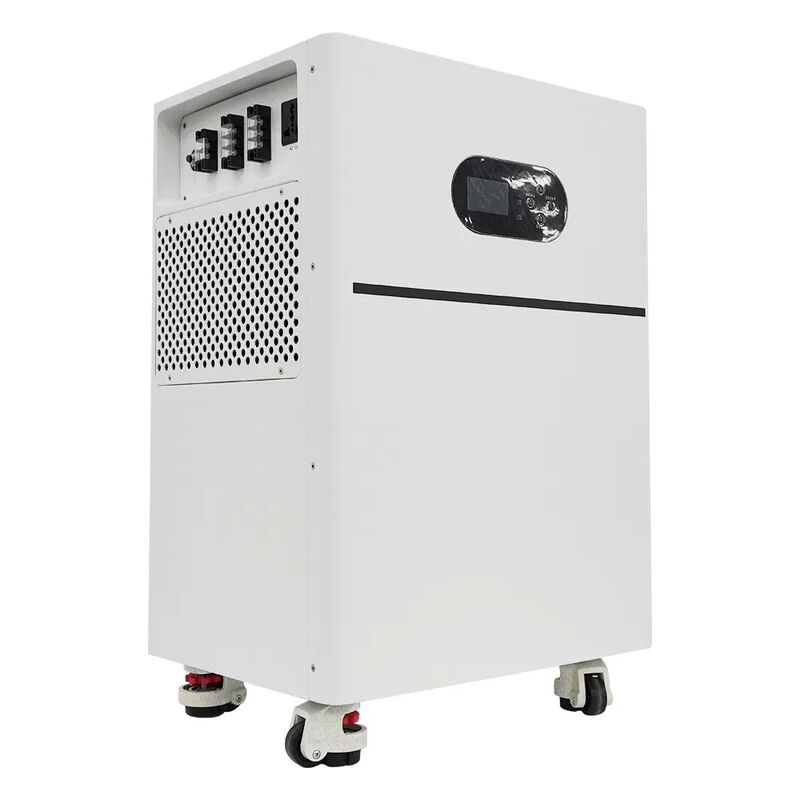

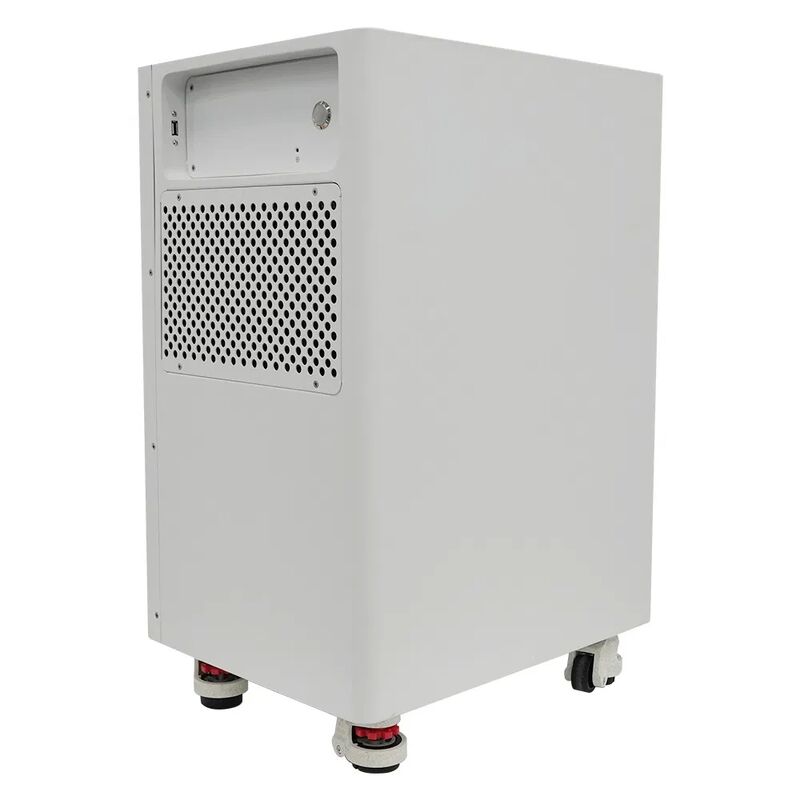

Reliable 16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power

16kwh Home Energy Storage System

Built-in Fan Cooling Solar Energy Storage System

3000W Output Power Lithium Battery Storage System

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Reliable 16kwh Home Energy Storage System with Built-in Fan Cooling and 3000W Output Power

Product Details

Nominal Voltage:

25.6V

Operating Voltage:

21.6V~28.8V

Rated Energy:

2.56kWh

Max PV Voltage:

160VDC

MPPT Voltage:

30~128VDC

Max Input Power:

1600W

Max Current:

50A

AC Voltage:

220~240VAC

Input Current:

14A

Output Current:

17A (terminal)/10A (socket)

Output Power:

3000W

Cycle Life:

≥6000 @25℃,80%DOD

Operating Temperature:

0~55℃

Product Dimensions:

450*671*330mm

Net Weight:

45kg

Highlight:

16kwh Home Energy Storage System

Built-in Fan Cooling Solar Energy Storage System

3000W Output Power Lithium Battery Storage System

Payment & Shipping Terms

Minimum Order Quantity

Price

1299

Related Products

Contact Now

Product Description

H3 Series All-in-One Solar Energy Storage System

Integrated Solar Power Solution

The H3 series combines solar inverters and lithium battery storage in a single unit, reducing installation complexity and simplifying maintenance. This system provides reliable 24-hour outdoor power supply, making it ideal for regions with limited or unreliable electricity access.

Technical Specifications

Battery Specifications
Model	SMP-FU002
Battery Pack	25.6V100Ah
Nominal Voltage	25.6V
Operating Voltage Range	21.6V~28.8V
Rated Energy	2.56kWh

PV Input Parameters
Maximum PV Open-Circuit Voltage	160VDC
MPPT Voltage Range	30~128VDC
Maximum Input Power	1600W
Maximum Charge/Discharge Current	50A

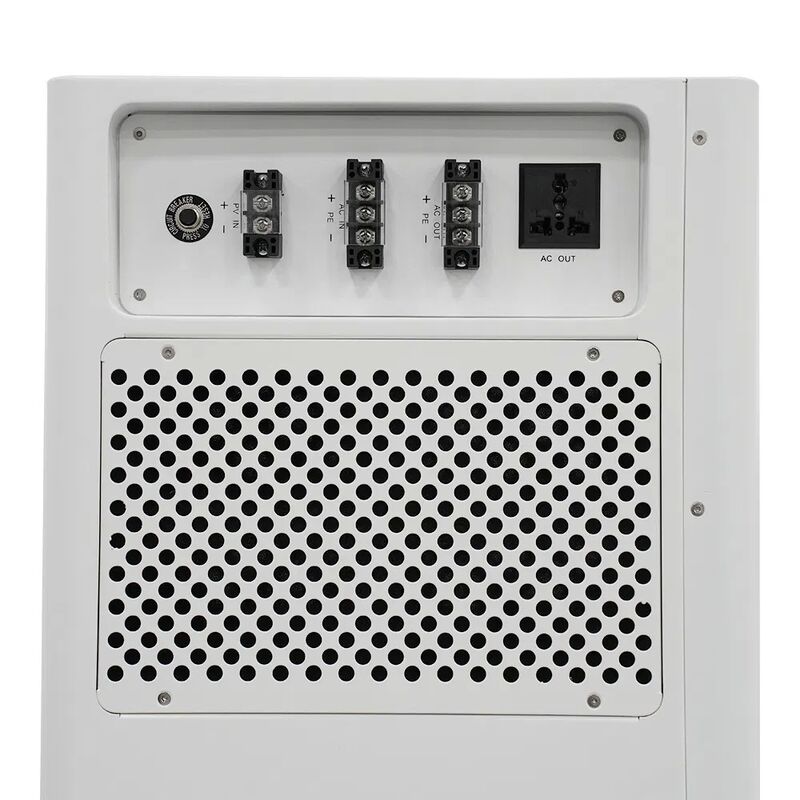

AC Output/Input Parameters
Input/Output Voltage	220~240VAC
Selectable Voltage Range	170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE)
Input Current	14A
Output Current	17A (terminal)/10A (socket)
Frequency	50Hz/60Hz (adaptive)
Rated Output Power	3000W

General Parameters
Communication Protocol	RS485/WIFI
Operating Altitude	≤2000m
Cooling Method	Built-in Fan
Installation Type	Floor-standing
IP Rating	IP20
Cycle Life	≥6000 @25℃,80%DOD
Operating Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimensions	450671330mm
Packaging Dimensions	550771450mm
Net Weight	45kg

Key Features

Integrated solar inverter and battery storage system
Simplified installation with reduced wiring requirements

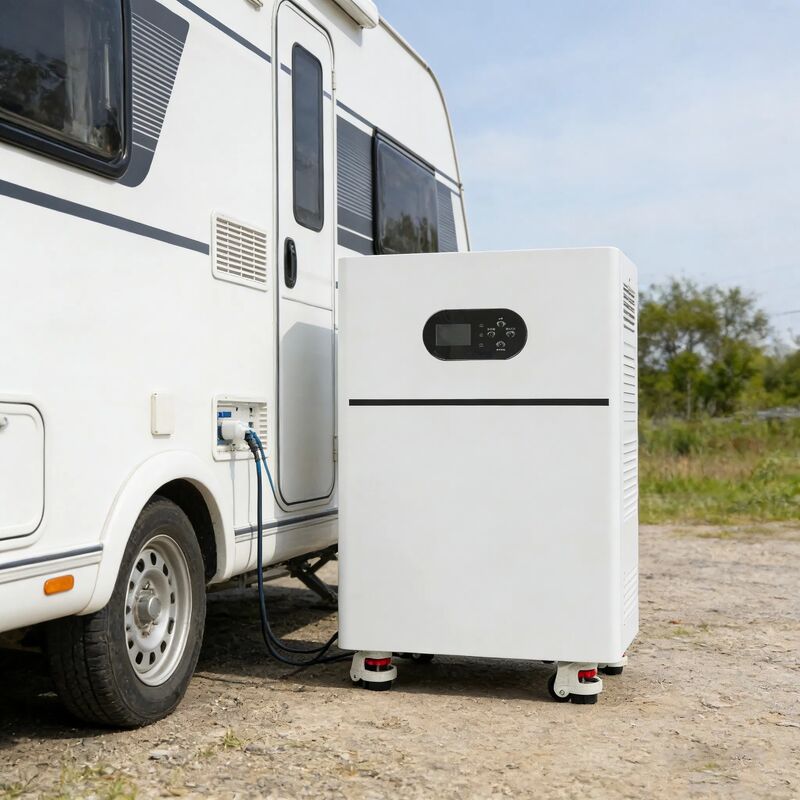

24-hour reliable power supply for outdoor applications
Advanced MPPT technology for optimal solar energy harvesting
Multiple voltage range selections for global compatibility
WiFi connectivity for remote monitoring and control
Long cycle life with high depth of discharge capability
Floor-standing design for easy installation

Manufacturer Information

Zhejiang Fimos Energy Technology Co., Ltd.

A forward-thinking enterprise focused on advanced energy storage solutions. Committed to innovation and sustainability, we provide safe, efficient, and intelligent systems for residential, commercial, and mobile applications.
