16kwh Modular Design Home Energy Storage System with Built-in Fan Cooling for Uninterrupted Power

16kwh Home Energy Storage System

Modular Design Lithium Battery Storage System

Built-in Fan Cooling PV Energy Storage System

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

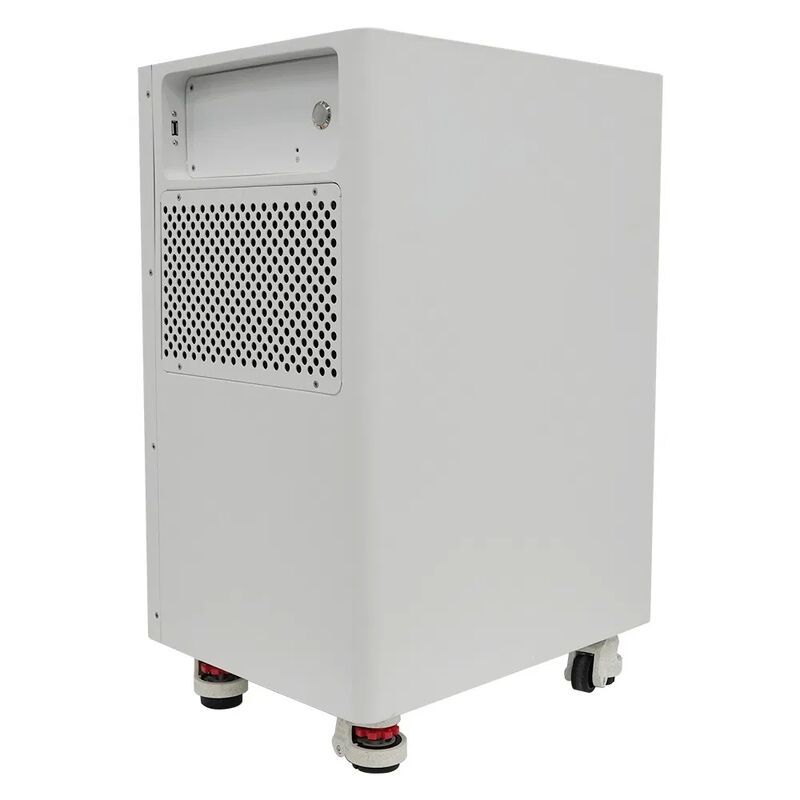

16kwh Modular Design Home Energy Storage System with Built-in Fan Cooling for Uninterrupted Power

Product Details

Power Configuration:

100kW-250kW

Specification:

45cm*67*33

Cooling Method:

Built-in Fan

Model NO.:

SMP-FU002

Battery Pack:

25.6V100Ah

Nominal Voltage:

25.6V

Operating Voltage:

21.6V~28.8V

Rated Energy:

2.56kWh

PV Voltage:

160VDC

MPPT Voltage:

30~128VDC

Maximum Input:

1600W

Charge Current:

50A

Output Voltage:

220~240VAC

Output Current:

17A (terminal)/10A (socket)

Rated Power:

3000W

Highlight:

16kwh Home Energy Storage System

Modular Design Lithium Battery Storage System

Built-in Fan Cooling PV Energy Storage System

Payment & Shipping Terms

Minimum Order Quantity

Price

1299

Related Products

Contact Now

Product Description

Innovative Modular Design 16kWh Battery for Home Energy Storage

PV Energy Storage Integrated Machine

The H3 series integrates solar inverters and lithium batteries, enhancing maintenance ease and reducing wiring complexity. It provides 24-hour uninterrupted power for outdoor applications, making it ideal for electricity-scarce areas.

Technical Specifications

Battery Pack Specifications
Model	SMP-FU002
Battery Pack Specifications	25.6V100Ah
Nominal Voltage	25.6V
Operating Voltage Range	21.6V~28.8V
Rated Energy	2.56kWh
PV Input Parameters
Maximum PV Open-Circuit Voltage	160VDC
MPPT Voltage Range	30~128VDC
Maximum Input Power	1600W
Maximum Charge/Discharge Current	50A
AC Output/Input Parameters
Input/Output Voltage	220~240VAC
Selectable Voltage Range	170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE)
Input Current	14A
Output Current	17A (terminal)/10A (socket)
Frequency	50Hz/60Hz (adaptive)
Rated Output Power	3000W
General Parameters
Communication Protocol	RS485/WIFI
Operating Altitude	≤2000m
Cooling Method	Built-in Fan
Installation Type	Floor-standing
IP Rating	IP20
Cycle Life	≥6000 @25℃,80%DOD
Operating Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimensions	450671330mm
Packaging Dimensions	550771450mm
Net Weight	45kg

Manufacturer Profile

Zhejiang Fimos Energy Technology Co., Ltd.

We are dedicated to researching and producing advanced energy storage solutions. Focused on innovation and sustainability, we offer safe, efficient, and intelligent systems for residential, commercial, and mobile applications, empowering a greener future.
