Name: Eco-Friendly Feimengsi Hybrid Inverter with Bidirectional Energy Storage and Ultra-wide MPPT Range for Pure Sine Wave Output
Brand: test
Price: 180 USD
Availability: InStock

Home > Products > Energy >

Eco-Friendly Feimengsi Hybrid Inverter with Bidirectional Energy Storage and Ultra-wide MPPT Range for Pure Sine Wave Output

Bidirectional Energy Storage Hybrid Inverter

Ultra-wide MPPT Range Energy Storage System

Pure Sine Wave Output DC/DC Inverter

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Eco-Friendly Feimengsi Hybrid Inverter with Bidirectional Energy Storage and Ultra-wide MPPT Range for Pure Sine Wave Output

Product Details

Output Power:

>1000W

Max PV Input Power:

1500W-5000W

MPPT Voltage Range:

30Vdc-450Vdc

Rated Voltage:

180Vdc-240Vdc

Max PV Voltage:

300Vdc-500Vdc

Max PV Current:

13A-18A

Battery Type:

Lead-acid/Lithium

Battery Voltage Range:

10.5-30Vdc

Max Charging Current:

60A-120A

Rated Input Voltage:

230V

Input Voltage Range:

165Vac-280Vac

Output Voltage Accuracy:

±2%

Output Frequency Accuracy:

±1%

Output Wave:

Pure Sine Wave

Power Factor:

>0.98

Highlight:

Bidirectional Energy Storage Hybrid Inverter

Ultra-wide MPPT Range Energy Storage System

Pure Sine Wave Output DC/DC Inverter

Payment & Shipping Terms

Minimum Order Quantity

Price

180

Related Products

Contact Now

Product Description

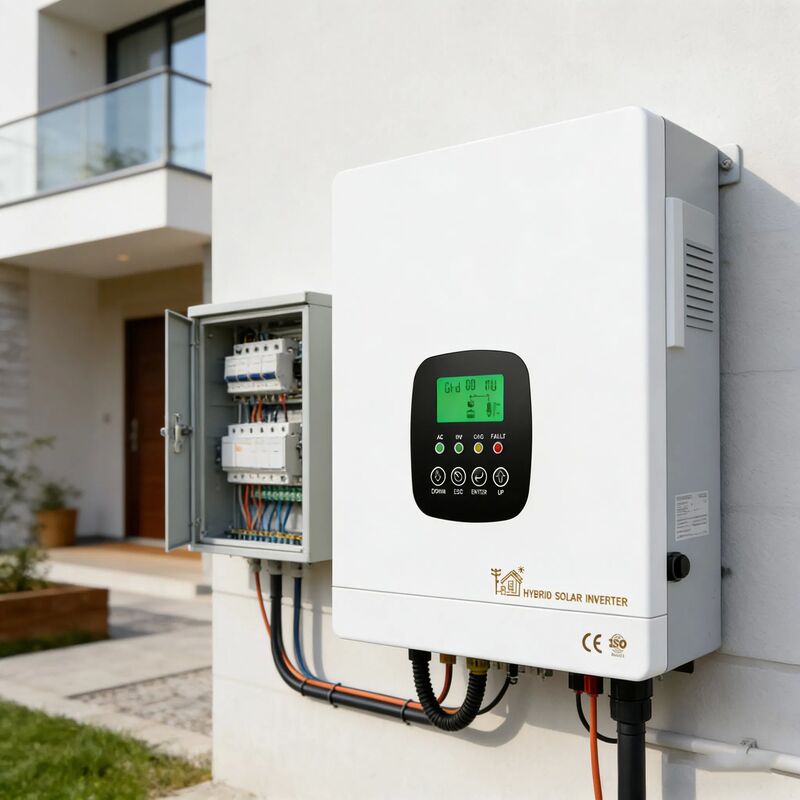

Reliable Wall-Mounted Home Battery Storage System

High-frequency design, compact size, high power density, and efficiency

Bidirectional energy storage for solar and mains charging
Ultra-wide MPPT range, supporting 30Vdc to 80Vdc
Supports configurable modes (grid-connected, off-grid, hybrid)
Enables grid-connected current setting
Offers output and charging priority settings
Includes BMS communication for lithium batteries
Supports battery-free operation

Technical Specifications

Specification	1000W	1300W	1800W	1800w	2300W	3300W
Rated Power	1000W	1300W	1800W	1800w	2300W	3300W
Max PV Input Power	1500W	2000W	2500W	2500W	3000W	5000W
MPPT Tracking Voltage Range	30Vdc-240Vdc		40Vdc-350Vdc		40Vdc-450Vdc
Rated Voltage	180Vdc			240Vdc
Max PV Input Voltage (VOC)	300Vdc		400Vdc		500Vdc
Max PV Input Current	13A	15A	18A	-	-	-
MPPT Tracking Channels	1 Routed
Battery Type	Lead-acid Battery/Lithium Battery
Rated Battery Voltage	12Vdc			24Vdc
Battery Voltage Range	10.5-15Vdc (default)			21-30Vdc (default)
Max PV Charging Current	60A	80A	100A	60A	80A	120A
Max AC Charging Current	40A	50A	65A	35A	50A	80A
Max Charging Current	60A	80A	100A	60A	80A	120A
Rated Input Voltage	230V (220V or 240V can be set)
Mains Input Voltage Range	165Vac-280Vac/120Vac-280Vac (can be set)
Rated Input Frequency	50Hz/60Hz
Input Frequency Range	45Hz-55Hz (50Hz), 55Hz-65Hz (60Hz)
Rated Output Voltage	230V (220V or 240V can be set)
Output Voltage Accuracy	±2%
Output Frequency Accuracy	±1%
Output Wave	Pure Sine Wave
Grid Voltage Range	187Vac-264Vac
Rated Output Current	4.3A	5.6A	7.8A	7.8A	10A	14.3A
Power Factor	>0.98 (Rated Power)
No Load Loss (Battery Discharge)	1% Rated Power (Typical value)
MPPT Tracking Efficiency	≥99.9%
Transfer Time	10ms (Typical value)
Display	LCD+LED
Cooling Method	Cooling fan in intelligent control
Communication	RS485/Mobile APP (WIFI Monitoring or GPRS monitoring) (Optional)
Protection Degree	IP20
Anti-islanding Protection	≤2S

Physical Dimensions

Model	Product Size (L×W×H mm)	Package Size (L×W×H mm)	Net Weight (kg)	Gross Weight (kg)
1000W	265×231×91	340×286×156	3	3.5
1300W	285×250×91	360×305×156	3.6	4.5
1800W	310×250×91	385×305×156	4	5
1800w	285×250×91	360×305×156	3.7	4.6
2300W	325×275×102	400×330×167	3.9	4.8
3300W	-	-	5.5	6.5

Product Features

Supports configurable modes (grid-connected, off-grid, hybrid) and enables grid-connected current setting

Offers output and charging priority settings and includes BMS communication for lithium batteries

Supports battery-free operation for flexible installation options

Frequently Asked Questions

Q1: Why choose us?

A: Years of expertise in electrical equipment, professional sales and R&D, competitive pricing, timely delivery, and sincere service

Q2: How is your after-sale service?

A: We offer a 1-2 year warranty and 1% spare parts for free. We repair or replace PCB

Q3: What certification do you have?

A: ISO9001, ISO14001, CE, ROHS, UL, etc. All products pass various tests per country requirements.

Q4: Delivery time:

A: Standard products delivered within 15 days

Q5: Can I have a sample order?

A: Yes, we welcome sample orders to test quality
