Name: Fimos Feimengsi Hybrid Inverter with Bidirectional Energy Storage, Pure Sine Wave Output, and Ultra-Wide MPPT Range
Brand: test
Price: 180 USD
Availability: InStock

Home > Products > Energy >

Fimos Feimengsi Hybrid Inverter with Bidirectional Energy Storage, Pure Sine Wave Output, and Ultra-Wide MPPT Range

Bidirectional Energy Storage Hybrid Inverter

Pure Sine Wave Output Energy Storage Inverter

Ultra-Wide MPPT Range DC/DC Inverter

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Fimos Feimengsi Hybrid Inverter with Bidirectional Energy Storage, Pure Sine Wave Output, and Ultra-Wide MPPT Range

Product Details

Output Power:

>1000W

Circuit Topologies:

Push-pull Type

Power Source:

Solar Power, Wind Power

Rated Power:

1000W| 1300W| 1800W| 1800w| 2300W| 3300W

Max PV Input Power:

1500W| 2000W| 2500W| 2500W| 3000W| 5000W

MPPT Tracking Voltage Range:

30Vdc-240Vdc| 40Vdc-350Vdc| 40Vdc-450Vdc

Rated Voltage:

180Vdc| 240Vdc

Max PV Input Voltage:

300Vdc| 400Vdc| 500Vdc

Max PV Input Current:

13A| 15A| 18A

MPPT Tracking Channels:

1 Routed

Battery Type:

Lead-acid Battery/Lithium Battery

Rated Batery Voltage:

12Vdc| 24Vdc

Battery Voltage Range:

10.5-15Vdc(default)| 21-30Vdc(default)

Max PV Charging Curent:

60A| 80A| 100A| 60A| 80A| 120A

Max AC Charging Current:

40A| 50A| 65A| 35A| 50A| 80A

Highlight:

Bidirectional Energy Storage Hybrid Inverter

Pure Sine Wave Output Energy Storage Inverter

Ultra-Wide MPPT Range DC/DC Inverter

Payment & Shipping Terms

Minimum Order Quantity

Price

180

Related Products

Contact Now

Product Description

Versatile Feimengsi Hybrid Inverter - Ideal for Residential Use

Reliable wall-mounted home battery storage system featuring high-frequency design for high power density, compact size, and efficient operation. The bidirectional energy storage system allows charging from both solar panels and mains power.

Key Specifications

Parameter	1000W	1300W	1800W	1800w	2300W	3300W
Rated Power	1000W	1300W	1800W	1800w	2300W	3300W
Max PV Input Power	1500W	2000W	2500W	2500W	3000W	5000W
MPPT Tracking Voltage Range	30Vdc-240Vdc		40Vdc-350Vdc		40Vdc-450Vdc
Rated Voltage	180Vdc			240Vdc
Max PV Input Voltage (VOC)	300Vdc		400Vdc		500Vdc
Max PV Input Current	13A	15A	18A	-	-	-
MPPT Tracking Channels	1 Routed
Battery Type	Lead-acid Battery/Lithium Battery
Rated Battery Voltage	12Vdc			24Vdc
Battery Voltage Range	10.5-15Vdc (default)			21-30Vdc (default)
Max PV Charging Current	60A	80A	100A	60A	80A	120A
Max AC Charging Current	40A	50A	65A	35A	50A	80A
Max Charging Current	60A	80A	100A	60A	80A	120A
Rated Output Current	4.3A	5.6A	7.8A	7.8A	10A	14.3A
Product Size (L·W·H mm)	26523191	28525091	31025091	28525091	325275102	-
Net Weight (kg)	3	3.6	4	3.7	3.9	5.5

Advanced Features

Supports grid-connected, off-grid, and hybrid operation modes
Allows grid-connected current settings for optimal performance
Configurable output and charging priority settings
Built-in BMS communication for lithium battery compatibility
Supports operation without battery for flexible installation
Customizable battery parameters for different battery types
High MPPT tracking efficiency ≥99.9%
Pure sine wave output for clean power
LCD display with LED indicators for easy monitoring
RS485 and mobile APP communication options (WiFi/GPRS monitoring)

Technical Specifications

Input: Rated voltage 230V (220V or 240V configurable), Frequency 50Hz/60Hz
Output: Pure sine wave, Voltage accuracy ±2%, Frequency accuracy ±1%
Efficiency: Power factor >0.98 at rated power, No-load loss 1% of rated power
Protection: IP20 rating, Anti-islanding protection ≤2 seconds
Cooling: Intelligent controlled cooling fan system

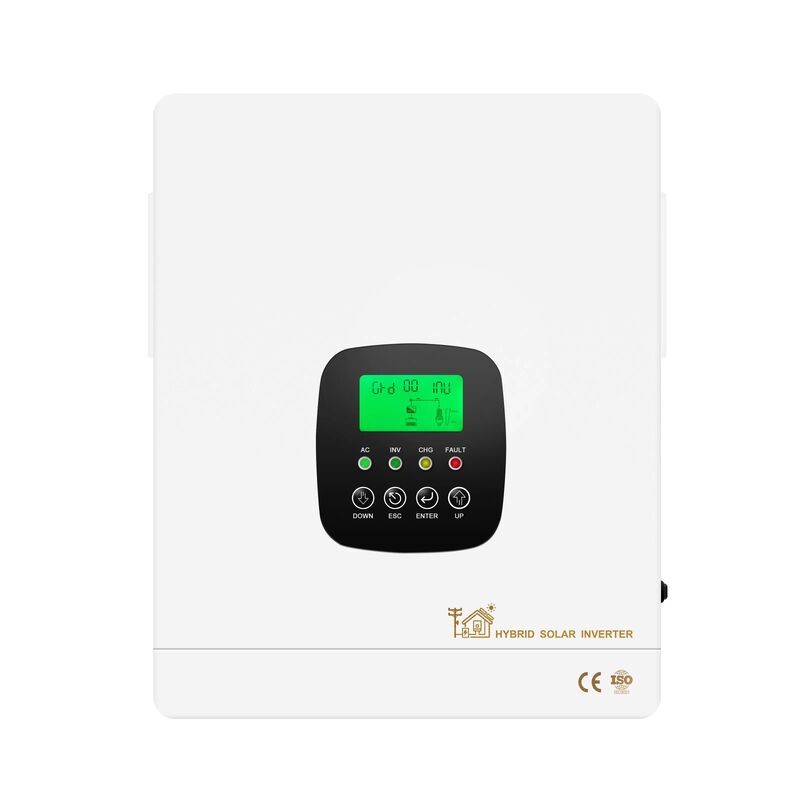

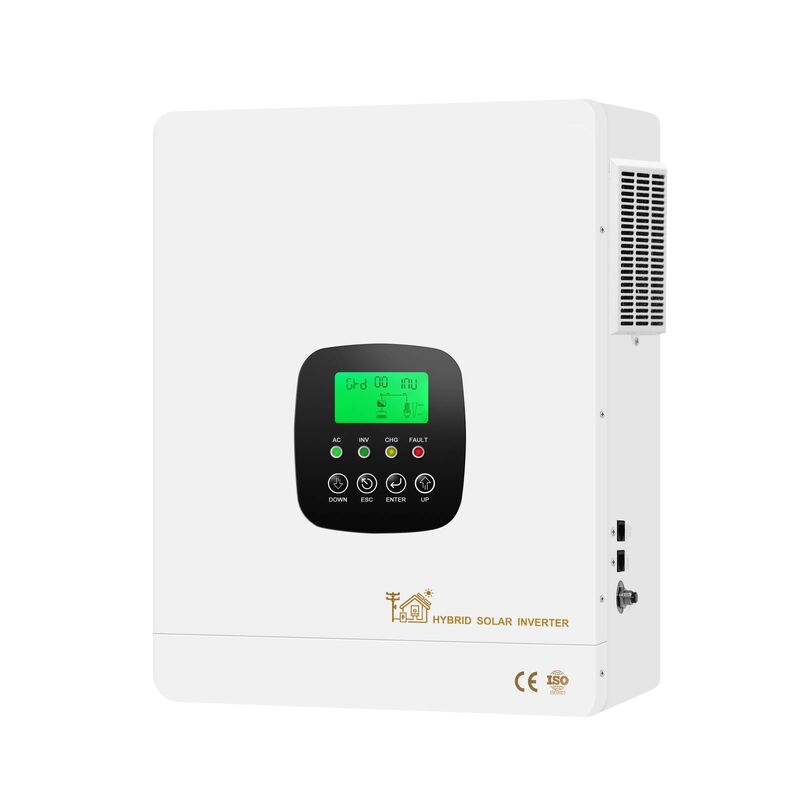

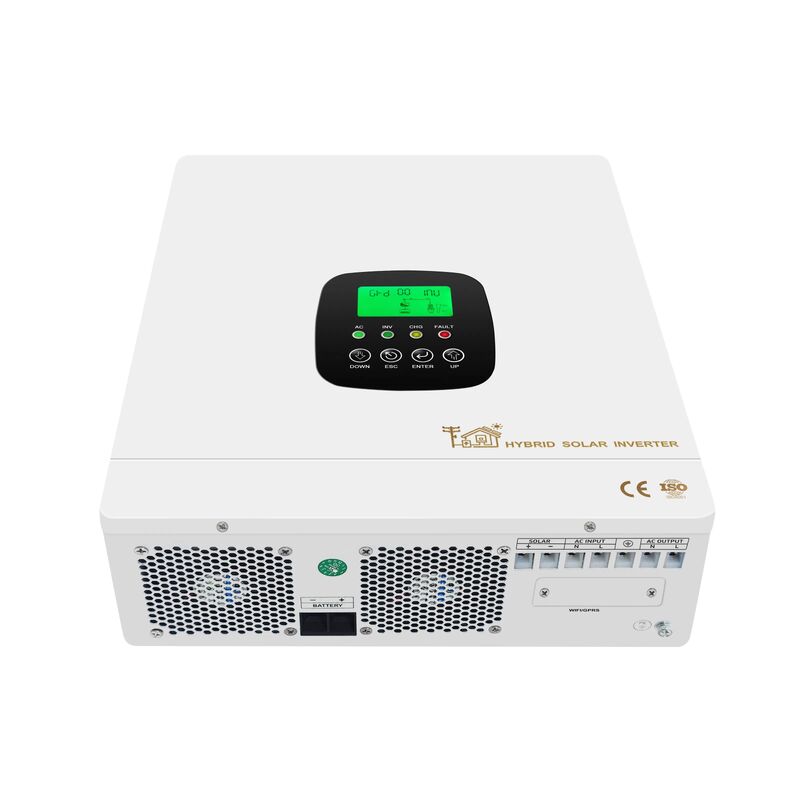

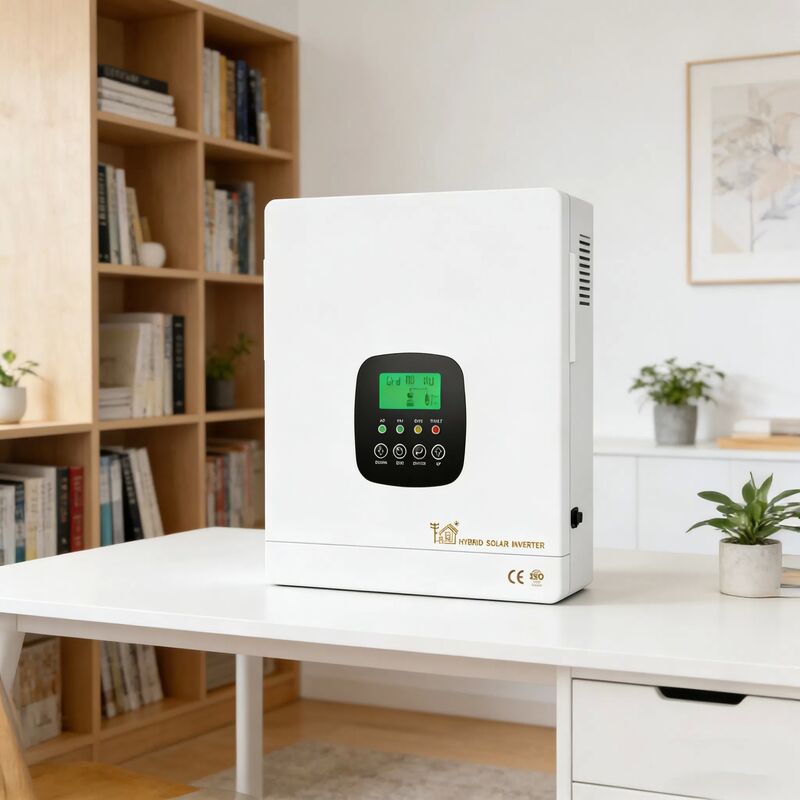

Product Images
