Home > Products > Energy >

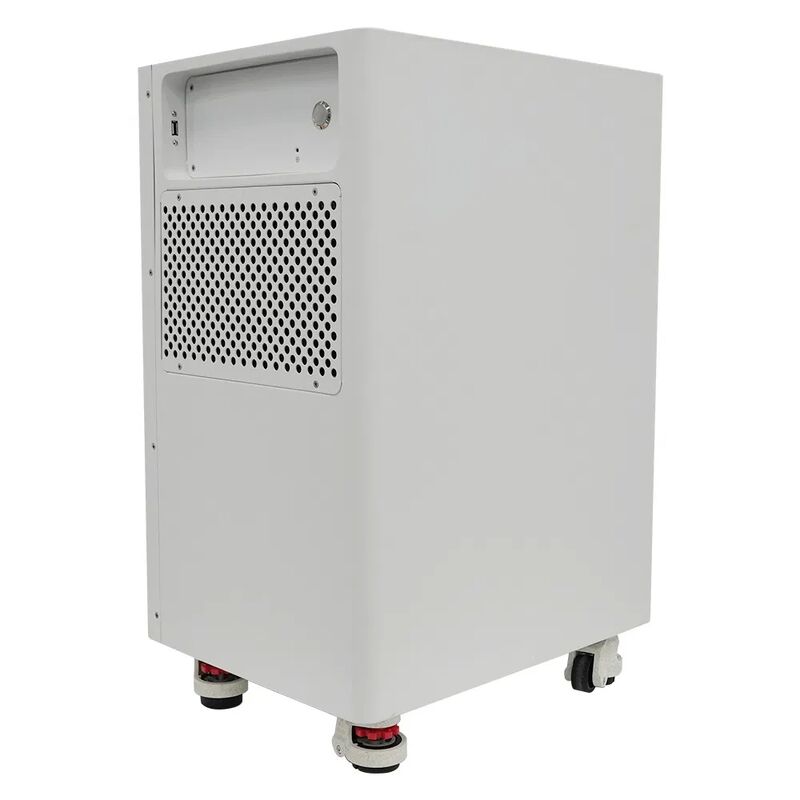

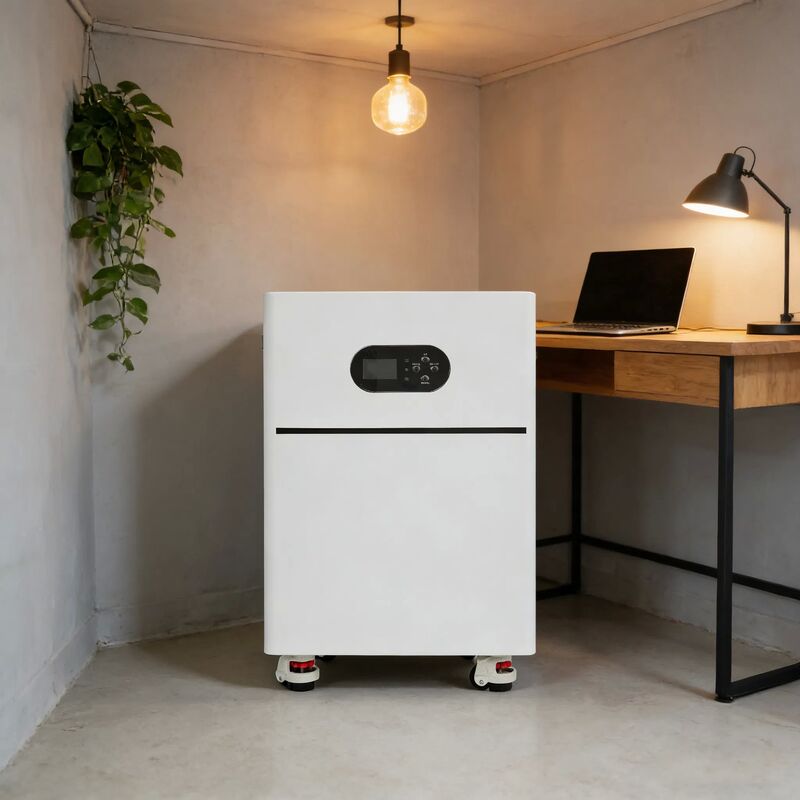

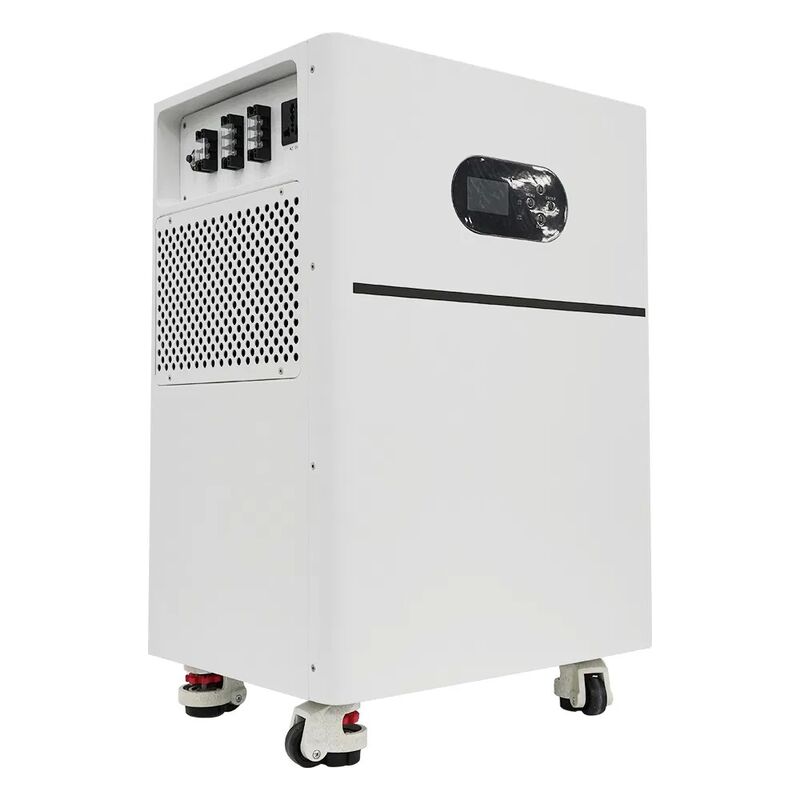

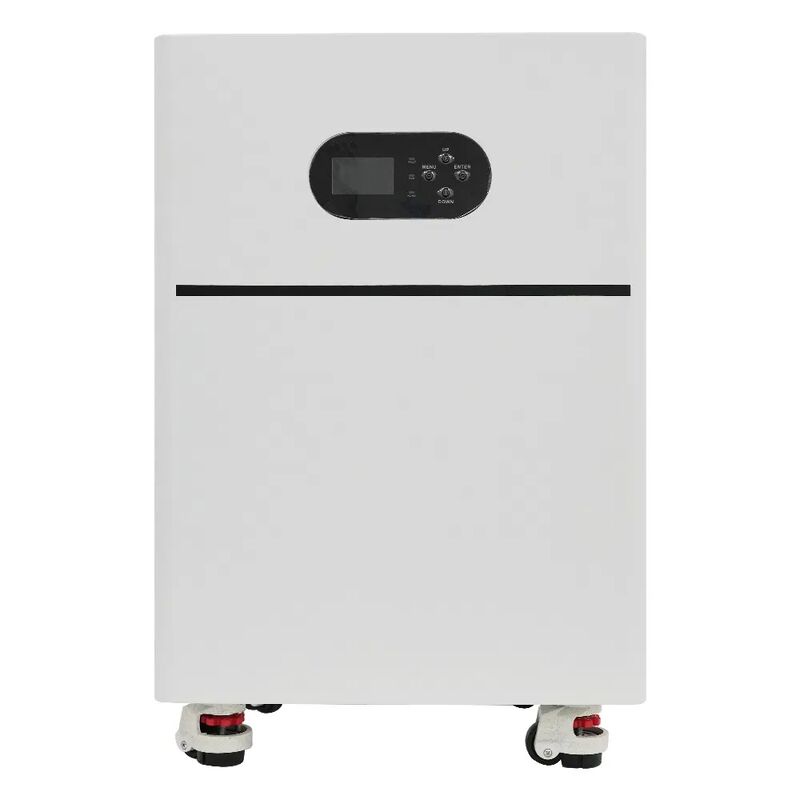

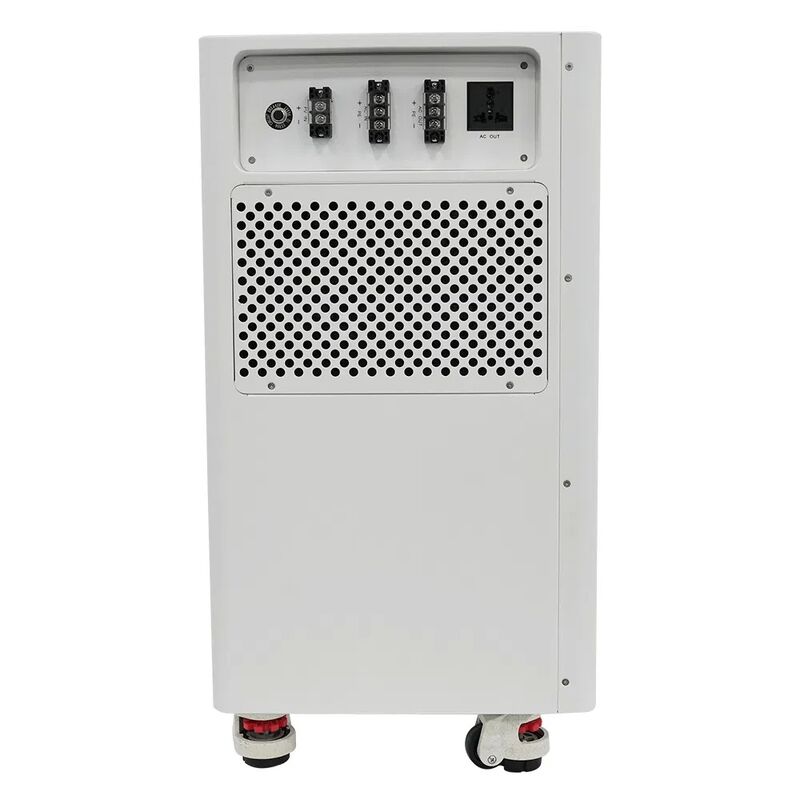

Sustainable 16kwh Home Energy Storage Battery with Modular Design and Built-in Fan Cooling for Solar Systems

16kwh Home Energy Storage Battery

Modular Design Solar System

Built-in Fan Cooling PV Energy Storage

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

Sustainable 16kwh Home Energy Storage Battery with Modular Design and Built-in Fan Cooling for Solar Systems

Product Details

Nominal Voltage:

25.6V

Operating Voltage:

21.6V~28.8V

Rated Energy:

2.56kWh

Max PV Voltage:

160VDC

MPPT Voltage:

30~128VDC

Max Input Power:

1600W

Max Charge Current:

50A

Input/Output Voltage:

220~240VAC

Input Current:

14A

Output Current:

17A (terminal)/10A (socket)

Frequency:

50Hz/60Hz (adaptive)

Rated Output Power:

3000W

Cycle Life:

≥6000 @25℃,80%DOD

Operating Temperature:

0~55℃

Net Weight:

45kg

Highlight:

16kwh Home Energy Storage Battery

Modular Design Solar System

Built-in Fan Cooling PV Energy Storage

Payment & Shipping Terms

Minimum Order Quantity

Price

1299

Related Products

Contact Now

Product Description

Sustainable 16kWh Home Energy Storage Battery with Modular Design

PV Energy Storage Integrated Machine

The H3 series solar system merges photovoltaic inverters with lithium batteries, simplifying wiring and maintenance. It ensures a 24-hour outdoor power supply, perfect for electricity-scarce areas.

Product Specifications

Model	SMP-FU002
Battery Pack Specifications	25.6V100Ah
Nominal Voltage	25.6V
Operating Voltage Range	21.6V~28.8V
Rated Energy	2.56kWh

PV Input Parameters

Maximum PV Open-Circuit Voltage	160VDC
MPPT Voltage Range	30~128VDC
Maximum Input Power	1600W
Maximum Charge/Discharge Current	50A

AC Output/Input Parameters

Input/Output Voltage	220~240VAC
Selectable Voltage Range	170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE)
Input Current	14A
Output Current	17A (terminal)/10A (socket)
Frequency	50Hz/60Hz (adaptive)
Rated Output Power	3000W

General Parameters

Communication Protocol	RS485/WIFI
Operating Altitude	≤2000m
Cooling Method	Built-in Fan
Installation Type	Floor-standing
IP Rating	IP20
Cycle Life	≥6000 @25℃,80%DOD
Operating Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimensions	450671330mm
Packaging Dimensions	550771450mm
Net Weight	45kg

Company Profile

Zhejiang Fimos Energy Technology Co., Ltd.

A pioneering enterprise in advanced energy storage. Focusing on innovation and sustainability, we offer safe, efficient, and smart energy systems for homes, businesses, and mobile use.
