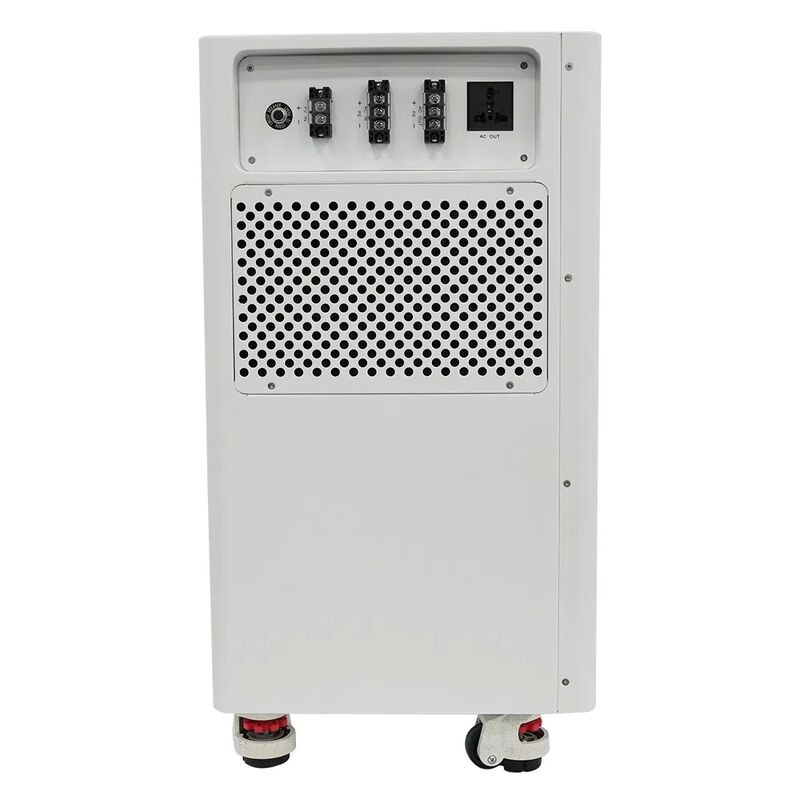

16kwh Home Energy Storage System with 3000W Output Power and Built-in Fan Cooling

16kwh Home Energy Storage System

3000W Output Power Lithium Battery Storage System

Built-in Fan Cooling PV Energy Storage Integrated Machine

Place of Origin:

Changsha, CN

Brand Name:

Ecer

Certification:

Request A Quote

16kwh Home Energy Storage System with 3000W Output Power and Built-in Fan Cooling

Product Details

Model:

SMP-FU002

Battery Pack:

25.6V100Ah

Nominal Voltage:

25.6V

Operating Voltage:

21.6V~28.8V

Rated Energy:

2.56kWh

Max PV Voltage:

160VDC

MPPT Voltage:

30~128VDC

Max Input Power:

1600W

Max Charge Current:

50A

Input/Output Voltage:

220~240VAC

Output Current:

17A (terminal)/10A (socket)

Rated Output Power:

3000W

Cycle Life:

≥6000 @25℃,80%DOD

Product Dimensions:

450*671*330mm

Net Weight:

45kg

Highlight:

16kwh Home Energy Storage System

3000W Output Power Lithium Battery Storage System

Built-in Fan Cooling PV Energy Storage Integrated Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

1299

Related Products

Contact Now

Product Description

All-in-One 16kwh Home Battery for Reliable Energy Storage Solutions

PV Energy Storage Integrated Machine

The H3 series system integrates solar inverters with lithium batteries, simplifying wiring and maintenance. It ensures reliable 24-hour outdoor power, perfect for areas with limited electricity.

Technical Specifications

Battery Pack Specifications
Model	SMP-FU002
Battery Pack Specifications	25.6V100Ah
Nominal Voltage	25.6V
Operating Voltage Range	21.6V~28.8V
Rated Energy	2.56kWh
PV Input Parameters
Maximum PV Open-Circuit Voltage	160VDC
MPPT Voltage Range	30~128VDC
Maximum Input Power	1600W
Maximum Charge/Discharge Current	50A
AC Output/Input Parameters
Input/Output Voltage	220~240VAC
Selectable Voltage Range	170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE)
Input Current	14A
Output Current	17A (terminal)/10A (socket)
Frequency	50Hz/60Hz (adaptive)
Rated Output Power	3000W
General Parameters
Communication Protocol	RS485/WIFI
Operating Altitude	≤2000m
Cooling Method	Built-in Fan
Installation Type	Floor-standing
IP Rating	IP20
Cycle Life	≥6000 @25℃,80%DOD
Operating Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimensions	450671330mm
Packaging Dimensions	550771450mm
Net Weight	45kg

Company Profile

Zhejiang Fimos Energy Technology Co., Ltd.

We are committed to developing innovative energy storage solutions. We focus on safe, efficient, and intelligent systems for various applications, aiming for a sustainable future.
